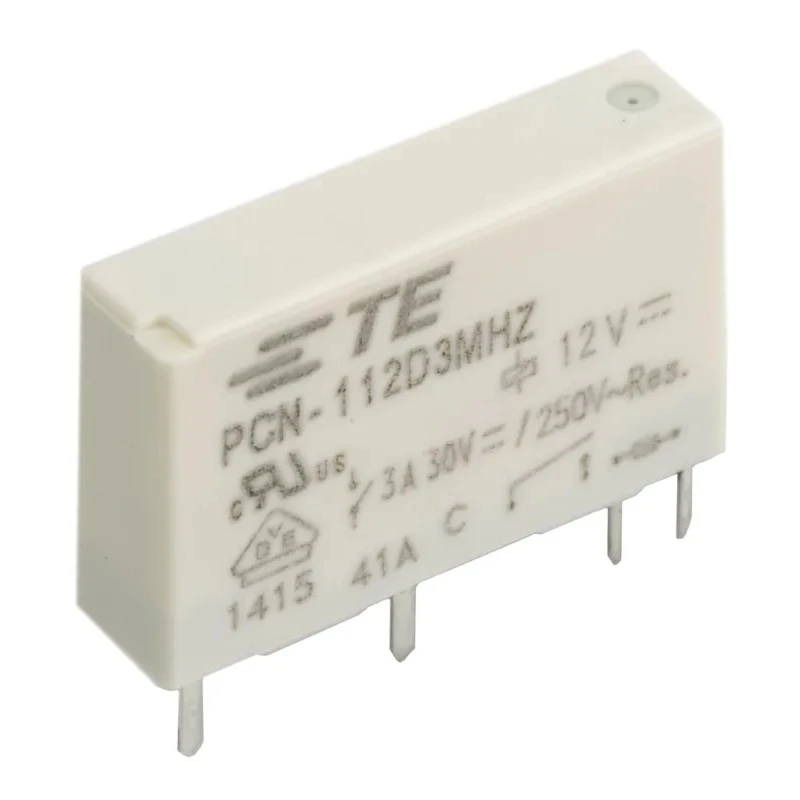

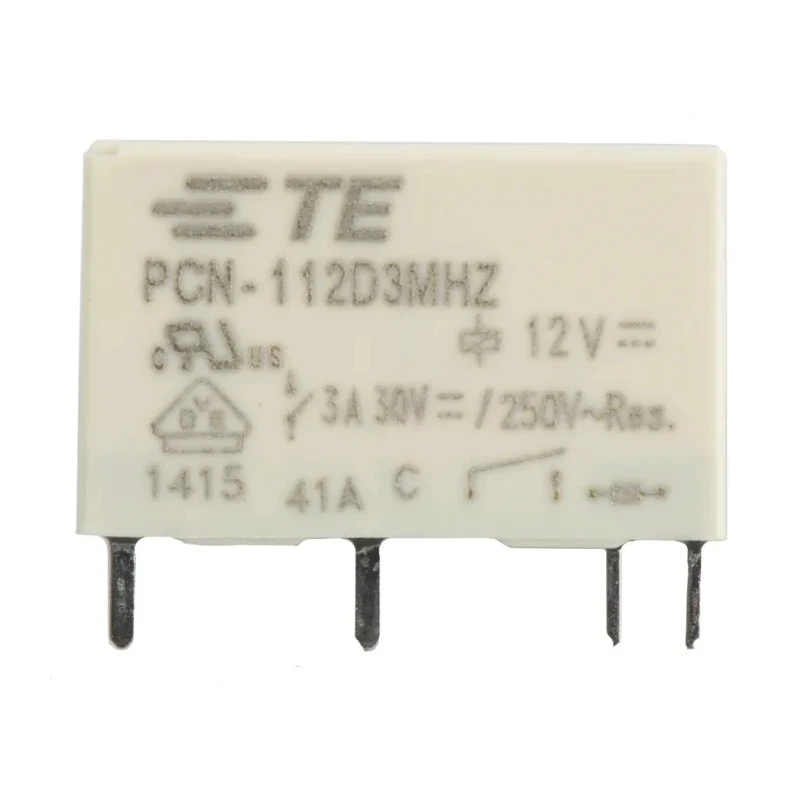

TE Connectivity PCB Power Relay 12V DC Coil 3A Switching Current SPST PCN-112D3MHZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 12.5mm |
| Length | 20mm |
| Model | PCN-112D3MHZ |
| Width | 5mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PCN |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.2kΩ |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 120mW |
Key Features
- The relay is designed for PCB mounting with solder terminals providing easy integration.
- Compact size allows for dense PCB layouts in industrial machines.
- Cadmium-free silver nickel alloy contacts ensure long-term reliability and low contact resistance.
- Reinforced insulation improves operational safety and compliance.
- Wide operating temperature tolerance facilitates use in harsh environments.
- RoHS compliance supports environmentally responsible manufacturing.
- Suitable for switching AC voltages up to 277V AC at 3A current.
Product Description
TE Connectivity PCN-112D3MHZ is a high-quality PCB Power Relay engineered for reliable switching in various electronic and electrical applications. Featuring a coil voltage of 12V DC and a switching current capacity of 3A, this SPST contact relay is an optimal choice for control systems and automation equipment.
The relay mounts directly onto PCB boards via solder terminals, providing a compact form factor with dimensions of 20mm length, 5mm width, and 12.5mm height. Coil power is low at 120mW with a coil resistance of 1.2 kΩ, ensuring energy-efficient operation over a wide temperature range from -30°C to 70°C.
Constructed with silver nickel alloy contacts, the relay delivers excellent conductivity and durability. The PCN series relays are cadmium-free and feature reinforced insulation for enhanced safety and environmental compliance. The washproof RT III rating allows use in conditions requiring moisture resistance. It is RoHS compliant, meeting modern environmental standards.
This relay is suitable for industrial, laboratory, automation, and HVAC control systems where switching AC voltages up to 277V AC at currents up to 3A is required. Its slim profile and reliable electrical characteristics make it ideal for compact electronic assemblies and control panels.
The relay is designed for PCB mounting with solder terminals providing easy integration. Compact size allows for dense PCB layouts in industrial machines. Cadmium-free silver nickel alloy contacts ensure long-term reliability and low contact resistance.
Reinforced insulation improves operational safety and compliance. Wide operating temperature tolerance facilitates use in harsh environments. RoHS compliance supports environmentally responsible manufacturing. The product is made in China, reflecting global manufacturing standards.
Explore our extensive catalog of relays and power control components to find compatible products and design solutions suitable for your application needs on EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 3A.
This model operates with a coil voltage of 12V DC.

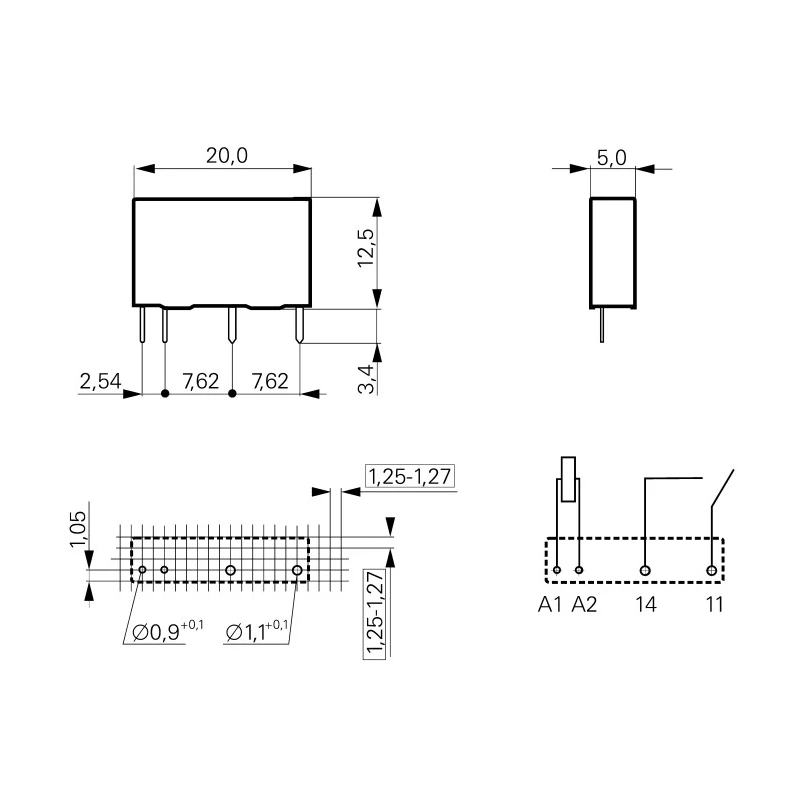

The relay measures 20mm in length, 5mm in width, and 12.5mm in height.
It is designed for PCB mounting with solder terminals for easy integration.
It is suitable for switching AC voltages up to 277V AC.
The coil resistance is 1.2 kΩ.
The operating temperature range is from -30°C to 70°C.
The contacts are made from cadmium-free silver nickel alloy, ensuring low contact resistance and reliability.
Yes, this relay is RoHS compliant, supporting environmentally responsible manufacturing.
The coil power consumption is low at 120mW.
It is suitable for use in industrial, laboratory, automation, and HVAC control systems.
It features reinforced insulation for improved operational safety and compliance with standards.
