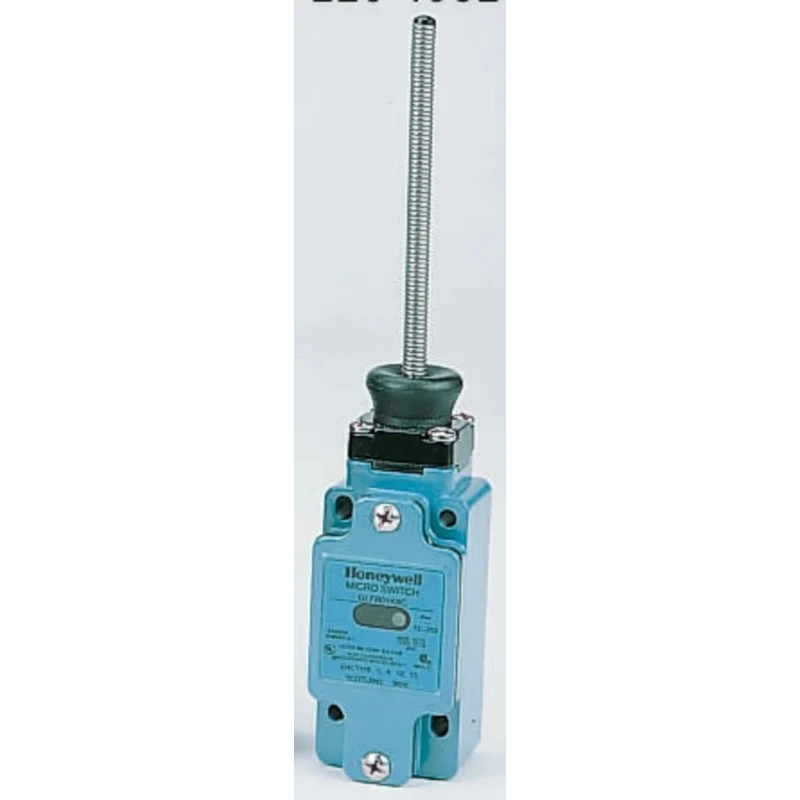

Honeywell GLF Series Coil Spring Limit Switch, 1 NO/1 NC, IP67 Die Cast Zinc Epoxy Coated Housing, 600V
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Honeywell |
| Length | 78mm |
| Model | IP67 |
| Depth | 42mm |
| IP Rating | IP67 |
| Width | 42mm |
| Housing Material | Die Cast Zinc Epoxy Coated |
| Series | GLF |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Upright |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Coil Spring |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | CCC, CE, CSA, UL |
| Operating Force | 16N |
| Mechanical Life | 15000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 600V ac |
| Conduit Entry | PG13.5 |
Key Features
- Features a coil spring actuator with snap-action contacts for decisive switching.
- Equipped with 1 normally open and 1 normally closed contact configuration for versatile control.
- Die cast zinc epoxy coated housing ensures protection against dust and water ingress.
- Rated for switching voltages up to 600V AC and 250V DC with a 6A current capacity.
- Operates reliably in temperature ranges from -25°C to 85°C.
- Designed for upright mounting to ensure consistent actuator mechanics.
- Conduit entry type is PG13.5, compatible with standard industrial cable glands.
- Mechanical life of 15 million operations reduces maintenance frequency.
Product Description
Honeywell GLFB01K8C GLF Series Coil Spring Limit Switch is a compact and rugged industrial automation component designed for reliable position sensing and machinery control. It features a coil spring actuator with snap-action contacts capable of fast and decisive switching, ideal for harsh industrial environments requiring a sealed, metal-bodied limit switch.
The die cast zinc epoxy coated housing rated at IP67 protects the internal components from dust and water ingress, making it suitable for use in demanding conditions. The switch supports a switching voltage of up to 600V AC and 250V DC with a 6A current rating, allowing its integration into both AC and DC electrical circuits.
Operating temperature ranges from -25°C to 85°C, enabling use in cold storage or moderately heated process areas. The recommended upright mounting orientation ensures reliable mechanical actuation and long-term contact performance. The PG13.5 conduit entry facilitates standard cable gland installations for easy wiring.
The mechanical life of 15 million operations provides durability and minimizes replacement needs, contributing to lower maintenance costs. Certified to international standards including CCC, CE, CSA, and UL, this limit switch meets safety and quality requirements for regulated industrial installations.
Reliable coil spring actuator with snap-action contact mechanism. Durable die cast zinc housing with epoxy coating and IP67 rating. Dual contact configuration: 1 normally open and 1 normally closed. Supports 600V AC and 250V DC switching voltages.
Suitable for temperature ranges between -25°C and 85°C. Upright mounting orientation for consistent operation. Standard PG13.5 conduit entry for cable glands. Mechanical life of 15 million operations. Complies with CCC, CE, CSA, and UL approvals.
This product is ideal for conveyor end-of-travel detection, packaging machinery limit sensing, motor starter safety interlock feedback, and position detection in material handling systems. Honeywell's GLFB01K8C limit switch offers rugged performance for various industrial applications requiring precise and reliable position control.
Explore the complete Honeywell Limit Switch range and other industrial automation components on EnvMart for your manufacturing and machinery control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum switching voltage of 600V AC and 250V DC.
It has a current capacity of 6A.
It features a coil spring actuator with a snap-action contact mechanism for decisive switching.
The operating temperature range is from -25°C to 85°C.
The housing is rated at IP67, providing protection against dust and water ingress.
The dimensions are 78mm in length, 42mm in width, and 42mm in depth.
It has a mechanical life rated for 15 million operations.
It is designed for upright mounting to ensure consistent actuator mechanics.
The conduit entry type is PG13.5, compatible with standard industrial cable glands.
It complies with international standards including CCC, CE, CSA, and UL.
The contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
The housing is made of die cast zinc with an epoxy coating for added durability.
