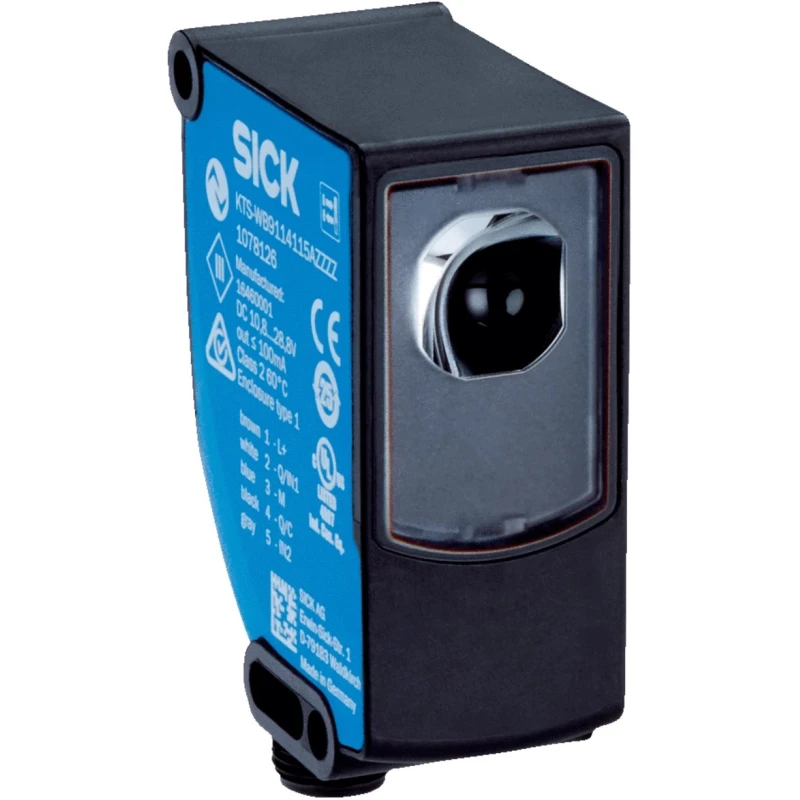

SICK Contrast Sensor RGB LED 13 mm, NPN/PNP Output, 100 mA, IP67, 30V dc,
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Light Source | RGB LED |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Plastic |
| Output type | NPN/PNP |
| Series | KTS Prime |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 100mA |
| Switching Frequency | 50kHz |
| Terminal type | 4-Pin M12 Male Connector |
| Standards/Approvals | UL, CE, IEC, cULus, RoHS |
| Maximum Supply Voltage | 30V dc |
| Maximum Detection | 13mm |
Key Features
- Equipped with TwinEye-Technology for enhanced depth of field and sensing tolerance.
- Features 50 kHz switching frequency and 5 microsecond jitter for fast response.
- Large dynamic range allows reliable detection of contrasts on glossy materials.
- Includes 7-segment display and integrated color mode for stable detection.
- Flexible sensor settings and teach-in processes ensure easy commissioning.
- Robust IP67 plastic housing suitable for panel mounting in harsh environments.
- Operates within a temperature range of -20°C to 60°C.
- Provides diagnostic and visualization capabilities via IO-Link.
Product Description
SICK KTS-WS91141142ZZZZ Contrast Sensor RGB LED 13 mm, NPN/PNP output, 100 mA maximum current, IP67 rating, and 30V DC power supply is engineered for precise detection of contrasts and marks in industrial automation.
This sensor utilizes advanced TwinEye-Technology that increases depth of field and sensing distance tolerance, significantly improving performance on glossy and jittering surfaces. With a high switching frequency of 50 kHz and minimal jitter of 5 microseconds, it ensures accurate detection at high machine speeds.
The device features a large dynamic range and an integrated color mode to deliver reliable contrast resolution even on complex or colored materials. The 7-segment display provides intuitive feedback, simplifying setup and operation.
Thanks to multi-functional sensor adjustment options and various teach-in processes, the sensor offers flexible commissioning and stable process control tailored to individual applications.
Housed in a durable plastic casing rated IP67, it is designed for panel mounting and can withstand harsh industrial environments. The operational temperature range of -20°C to 60°C suits a variety of settings.
The sensor supports IO-Link communication, offering diagnostic data and visualization to facilitate predictive maintenance and system monitoring.
Typical applications include print mark detection for cutting control, label alignment on bottles, position control in the printing industry, wafer surface monitoring, roll end detection, and color control in yarn or line production.
The KTS Prime series represents state-of-the-art sensor technology delivering outstanding performance and flexibility for complex industrial automation tasks. Equipped with TwinEye-Technology for increased depth of field.
High switching frequency of 50 kHz and 5 μs jitter for accuracy. Large dynamic range for reliable contrast detection on glossy surfaces. 7-segment display with color mode for easy operation. Flexible sensor adjustment and teach-in processes.
Robust IP67 rated plastic housing for panel mounting. Operating temperature from -20°C to 60°C. IO-Link communication for diagnostics and visualization. Ideal for print mark detection, label alignment, and surface monitoring.
Manufactured in Germany with UL, CE, IEC, cULus, RoHS certifications. Explore more Sensors and automation products in the Electronics & Electricals section of EnvMart for industrial-grade solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this contrast sensor is 13 mm.
It operates within a temperature range of -20°C to 60°C.
This sensor features both NPN and PNP output types.
The maximum current rating for this device is 100 mA.
The sensor has a switching frequency of 50 kHz.
The housing of this model is made from plastic and is rated IP67.
This sensor is designed for panel mounting.
It supports IO-Link communication for diagnostics and visualization.
This sensor meets UL, CE, IEC, cULus, and RoHS standards.
It is equipped with TwinEye-Technology, which increases depth of field and sensing distance tolerance, allowing reliable detection on glossy materials.
This sensor uses an RGB LED as its light source.
Typical applications include print mark detection, label alignment, position control in printing, and color control in yarn production.
