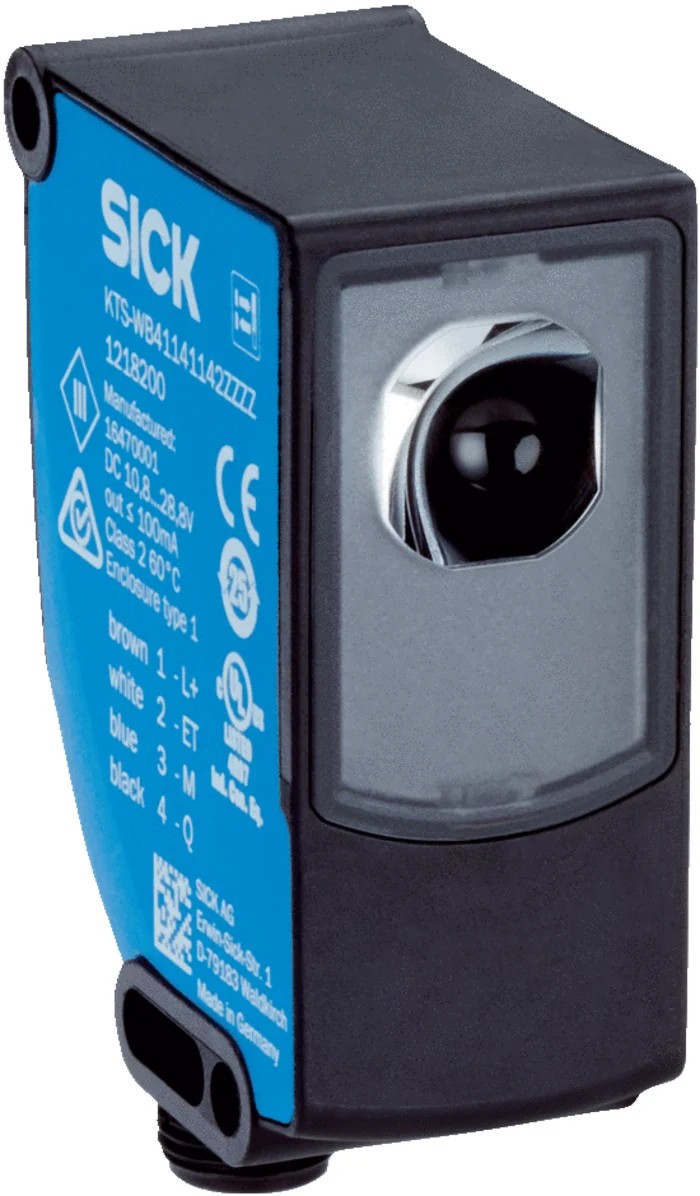

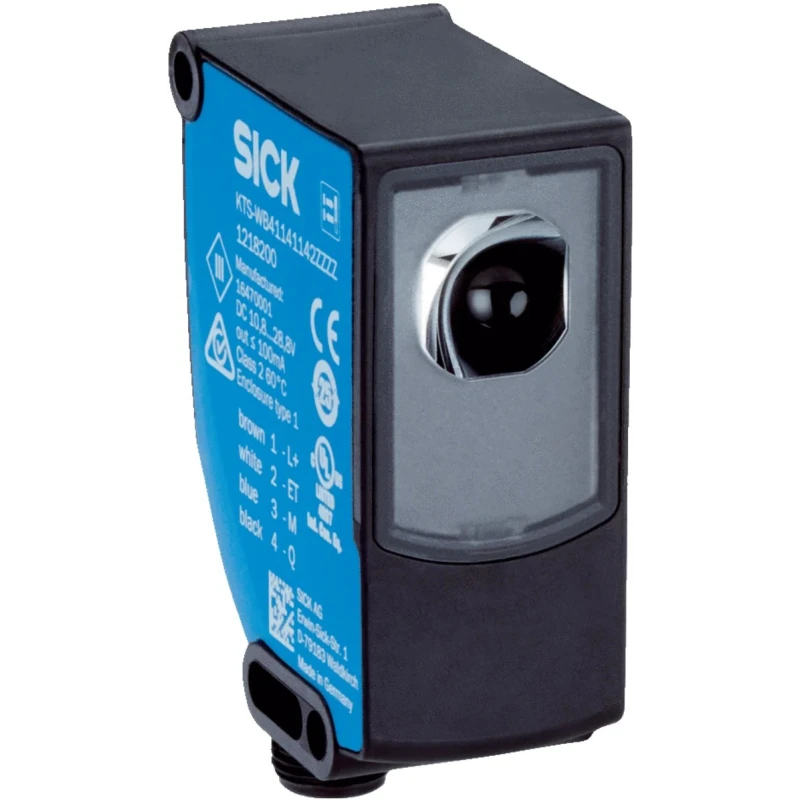

SICK Contrast Sensor RGB LED 13 mm Push Pull Output 100 mA IP67 30V DC KTS-WB41141142ZZZZ
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Light Source | RGB LED |
| Model | KTS-WB41141142ZZZZ |
| IP Rating | IP67 |
| Mount Type | Panel |
| Housing Material | Plastic |
| Output type | Push Pull |
| Series | KTS Core |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 100mA |
| Switching Frequency | 25kHz |
| Terminal type | 4-Pin M12 Male Connector |
| Standards/Approvals | UL, IEC, RoHS, cULus, CE |
| Maximum Supply Voltage | 30V dc |
| Maximum Detection | 13mm |
Key Features
- Equipped with RGB LED for precise contrast sensing.
- Push Pull output type supports 100 mA maximum current.
- High switching frequency of 25 kHz suitable for fast machine processes.
- Plastic housing with IP67 rating for resistant performance.
- Wide operating temperature range from -20°C to 60°C.
- 4-Pin M12 male connector ensures secure electrical connection.
- Manual switching threshold adjustment enables flexible sensor settings.
- Reliable detection on glossy materials with high gray line resolution.
Product Description
SICK KTS-WB41141142ZZZZ Contrast Sensor features RGB LED illumination, Push Pull output supporting 100 mA current, and operates at 30V DC power supply. It is engineered for high-speed, accurate detection of contrast differences in automated industrial environments.
This sensor delivers a high switching frequency of 25 kHz and incorporates a 4-Pin M12 male connector for reliable electrical interfacing. The robust plastic housing rated IP67 protects the sensor against dust and water ingress, ensuring durability in demanding settings.
The sensor supports manual switching threshold adjustment and offers various teach-in modes, providing exceptional flexibility for adapting to different contrast detection tasks such as print mark detection and label positioning on production lines.
With an operating temperature range from -20°C up to 60°C and a high gray line resolution, it excels in detecting subtle contrast differences even on high-gloss materials, reducing downtimes and improving process stability.
Applications include monitoring print marks to control cutting processes, alignment verification in labeling operations, wafer surface inspection, and end-of-roll detection in manufacturing workflows.
Equipped with RGB LED for precise contrast sensing. Push Pull output type supports 100 mA maximum current. High switching frequency of 25 kHz suitable for fast machine processes. Plastic housing with IP67 rating for resistant performance.
Wide operating temperature range from -20°C to 60°C. 4-Pin M12 male connector ensures secure electrical connection. Manual switching threshold adjustment enables flexible sensor settings. Reliable detection on glossy materials with high gray line resolution.
Compact 13 mm maximum detection range for print marks and label alignment. Designed for panel mounting in automated industrial applications.
This sensor is produced in Germany and complies with UL, IEC, RoHS, cULus, and CE standards, ensuring quality and compliance for industrial automation systems. Explore more Sensors in the EnvMart Electronics & Electricals Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 13 mm, making it suitable for detecting print marks and label alignment.
It features a Push Pull output type that supports a maximum current of 100 mA.
This sensor has a high switching frequency of 25 kHz, which is suitable for fast machine processes.
The operating temperature range is from -20°C to 60°C, allowing it to function in various industrial environments.
This sensor has an IP67 rating, providing protection against dust and water ingress.
It uses a 4-Pin M12 male connector for secure electrical connection.
The housing is made from plastic, which contributes to its lightweight and durable design.
It complies with UL, IEC, RoHS, cULus, and CE standards, ensuring quality and compliance for industrial automation systems.
It is suitable for applications such as print mark detection, label positioning, wafer surface inspection, and end-of-roll detection in manufacturing workflows.
Yes, this model allows for manual switching threshold adjustment, providing flexibility for different contrast detection tasks.
This sensor is produced in Germany, ensuring high manufacturing standards.
