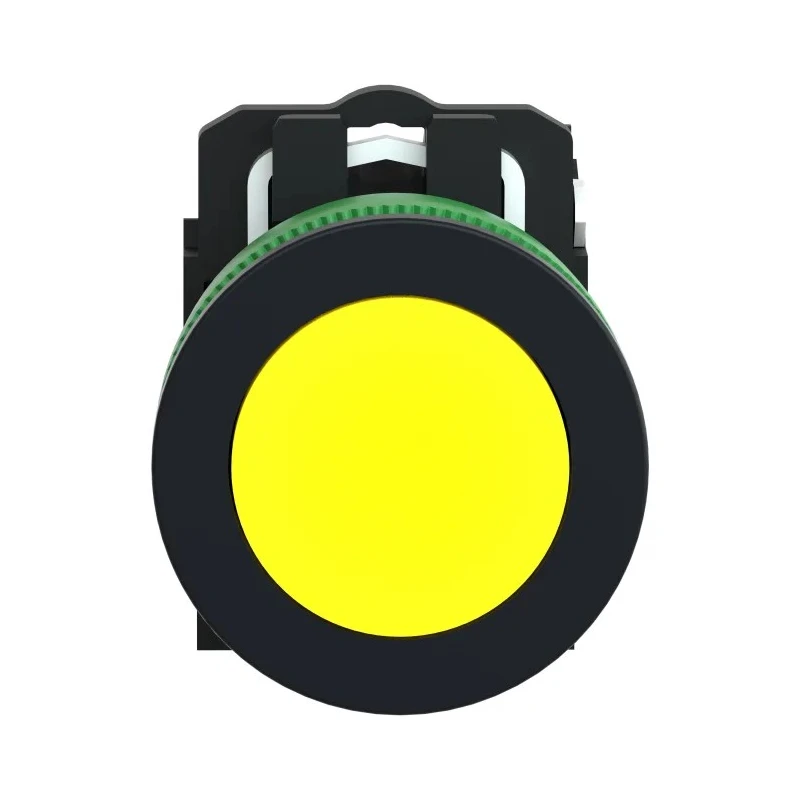

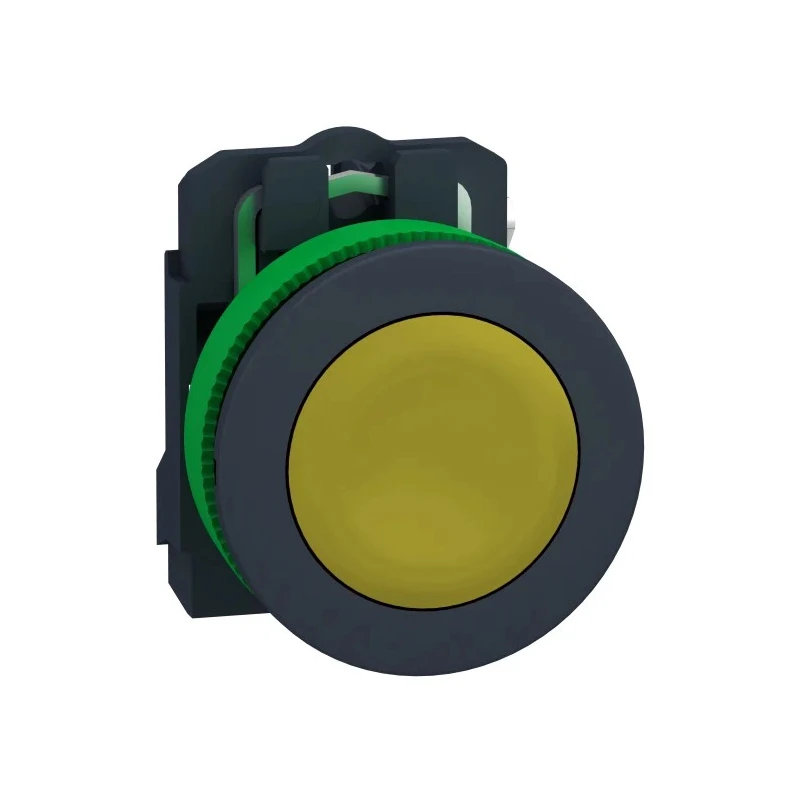

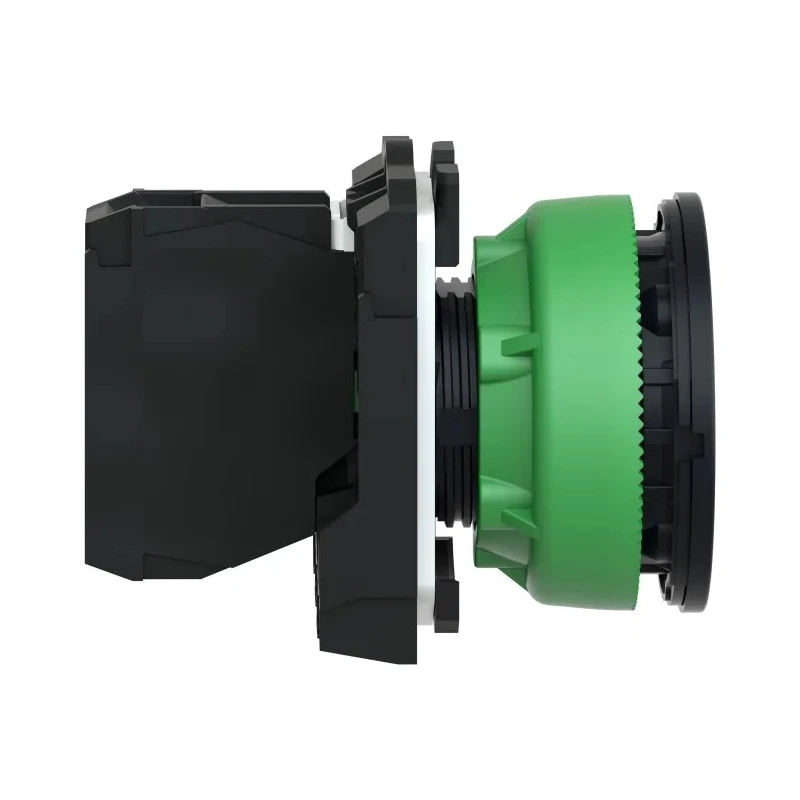

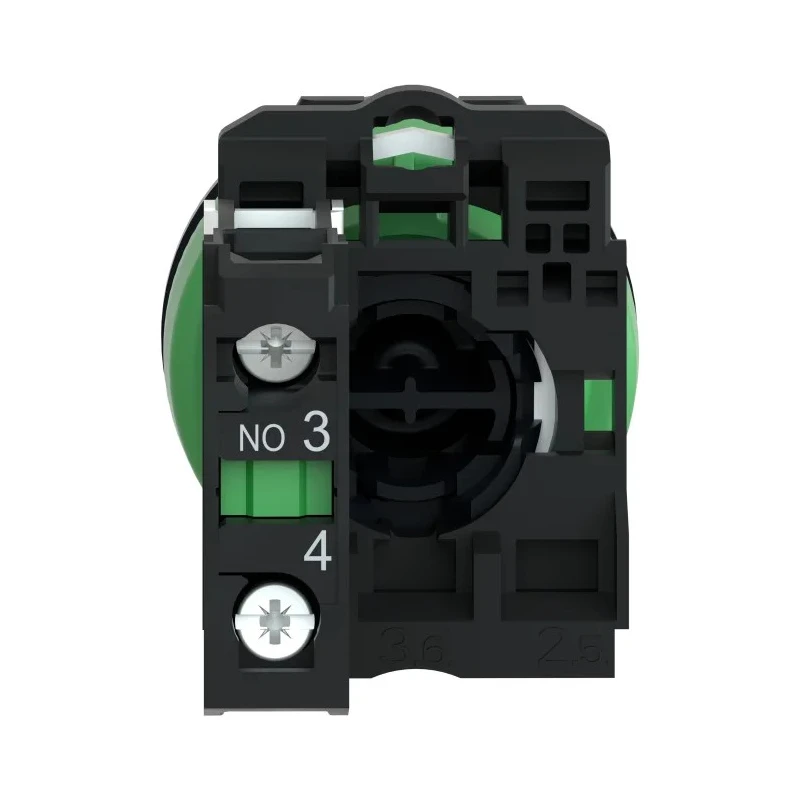

Schneider Electric Harmony Series Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPST, Yellow LED XB5FA51
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 55mm |
| Length | 42mm |
| Model | XB5FA51 |
| IP Rating | IP69 |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | 1 NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Yellow |
| Switch Operation | Spring Return |
| Actuator Colour | Yellow |
| Contact DC Voltage | 600V dc |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Contact AC Voltage | 600V |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- Features a durable round yellow actuator with flush push mechanism.
- Mounting diameter is 30.5 mm with panel cutout size of 30 mm.
- Designed for industrial applications requiring high chemical robustness and vibration resistance.
- Suitable for food and beverage, marine, and building infrastructure industries.
- Provides contact rating of 6A at 600 V AC/DC with screw clamp terminals.
- Operates between -40°C and 70°C for extreme environment stability.
- Offers IP66, IP67, IP69, and IP69K ingress protection standards.
- Complies with EN/IEC, UL, CSA, JIS, and ISO standards for safety and reliability.
Product Description
Schneider Electric XB5FA51 Harmony Series push button switch is a high-performance, spring return type switch designed for panel mounting with a 30 mm cutout. It features a round yellow LED illuminated actuator and provides SPST contact configuration. Rated for use at 600 V AC/DC, this switch is suitable for demanding industrial, manufacturing, automation, and electrical control applications.
This switch offers excellent robustness against chemicals such as cleaning solvents, detergents, and oils, making it ideal for use in food and beverage, marine, and building infrastructure environments. The device's IP69 ingress protection rating ensures it is resistant to dust, water jets, and immersion, increasing longevity in harsh conditions.
The compact design with a mounting diameter of 30.5 mm and screw clamp terminal connections provides easy installation and wiring. It operates reliably in temperature ranges from -40°C to 70°C, and its contact rating of 6 amperes supports a wide range of circuits. The flush push actuator enhances ergonomics and aesthetics while minimizing contamination risks.
The switch complies with multiple international standards including EN/IEC 60947-1, UL 508, CSA C22.2, and ISO certifications, ensuring safe and reliable operation. The product is repairable by the end user and includes various accessory options for customization.
Features a durable round yellow actuator with flush push mechanism. Mounting diameter is 30.5 mm with panel cutout size of 30 mm. Designed for industrial applications requiring high chemical robustness and vibration resistance.
Suitable for food and beverage, marine, and building infrastructure industries. Provides contact rating of 6A at 600 V AC/DC with screw clamp terminals. Operates between -40°C and 70°C for extreme environment stability. Offers IP66, IP67, IP69, and IP69K ingress protection standards.
Complies with EN/IEC, UL, CSA, JIS, and ISO standards for safety and reliability. Includes one unit per package, easily installed with a crosshead screwdriver. Designed for easy maintenance with repairable end user capabilities.
For more products in the Schneider Electric Harmony series and related Push Button Switches, please explore the Electronics & Electricals categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating of this push button switch is 6A at 600V AC/DC.
This model has a height of 55 mm, a length of 42 mm, and a width of 36.6 mm.
It operates reliably between -40°C and 70°C.
This switch features screw clamp terminals for easy installation and wiring.
The switch has an IP69 ingress protection rating, making it resistant to dust and high-pressure water jets.
It features a round actuator style with a yellow LED illumination.
It is designed for use in food and beverage, marine, and building infrastructure industries.
The required panel cutout size for this switch is 30 mm.
This model has a single pole, single throw (SPST) configuration.
Yes, it is designed to be repairable by the end user, enhancing its usability.
It is robust against chemicals such as cleaning solvents, detergents, and oils, making it suitable for harsh environments.
This switch complies with EN/IEC, UL, CSA, JIS, and ISO standards for safety and reliability.
