Schneider Electric Harmony Series Push Button Switch Spring Return Panel 30 mm Cutout SPST White LED IP69 600 V XB5FA3341

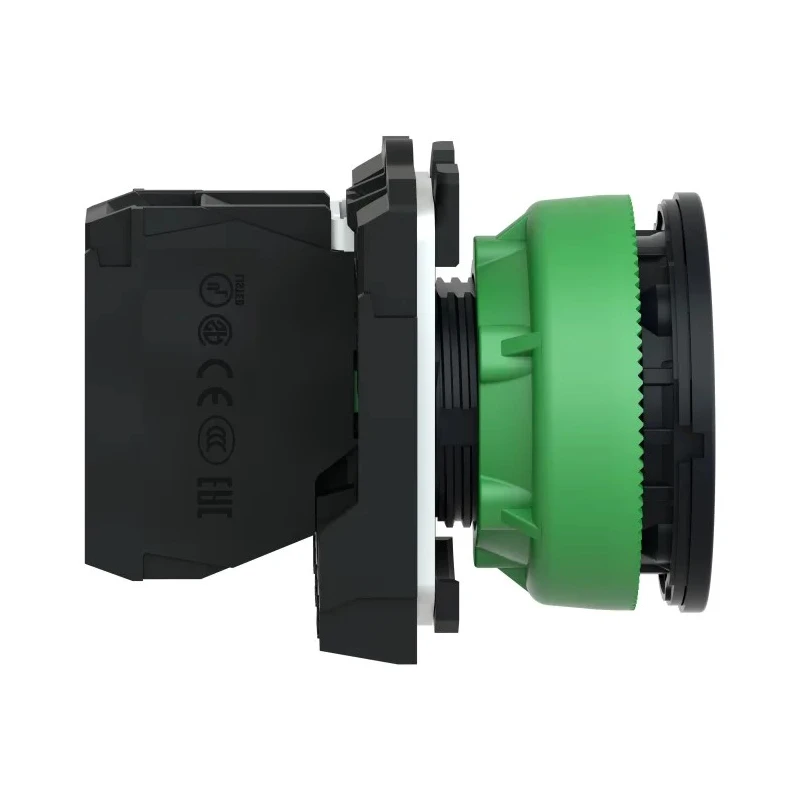

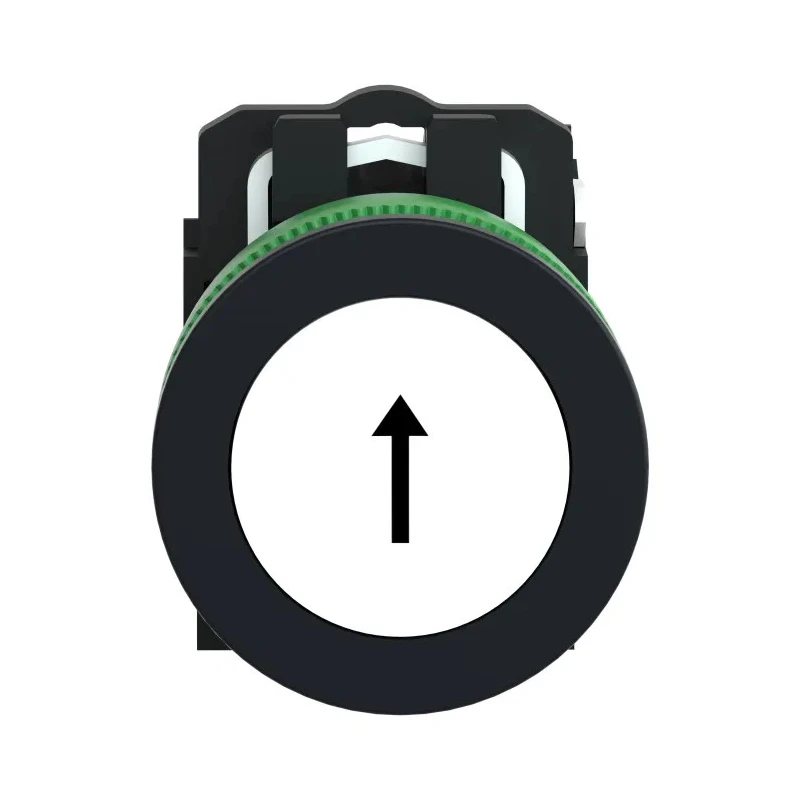

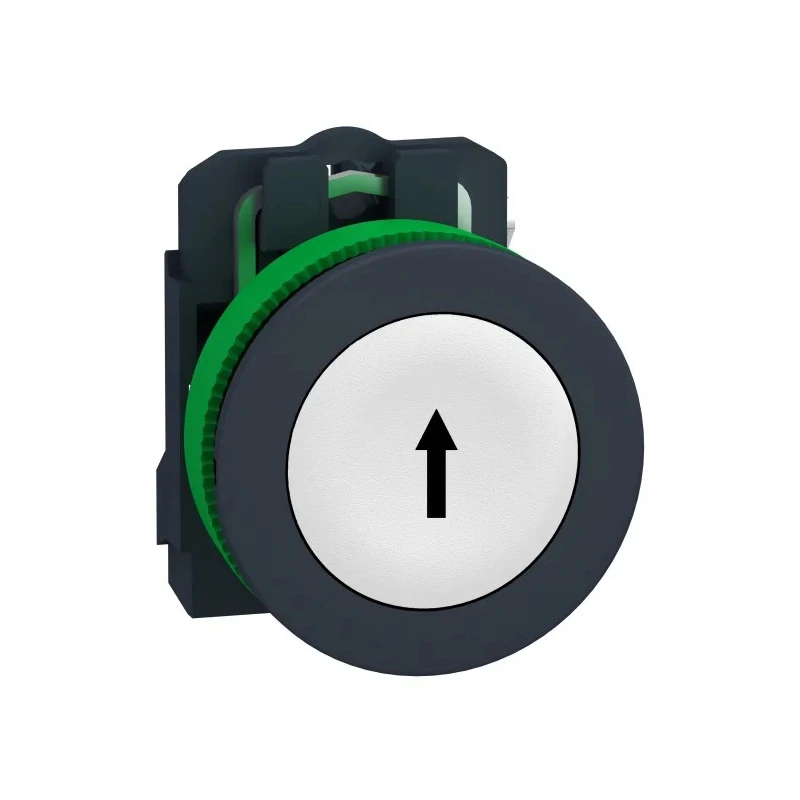

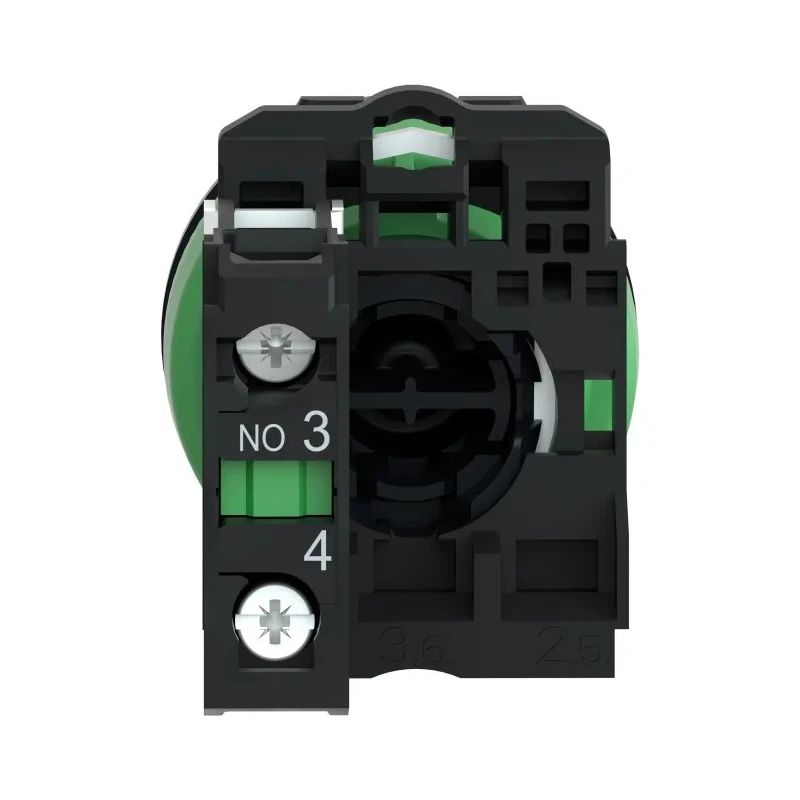

Name: Schneider Electric Harmony Series Push Button Switch Spring Return Panel 30 mm Cutout SPST White LED IP69 600 V XB5FA3341
Brand: Schneider Electric
SKU: 319641
Price: 28.73 USD
Availability: InStock



Category Push Button Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Height	55mm
Length	42mm
Model	XB5FA3341
IP Rating	IP69
Width	36.6mm
Mount Type	Panel
Series	Harmony
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-40°C
Panel Cutout Size	30 mm
Terminal type	Screw
LED Colour	White
Switch Operation	Spring Return
Actuator Colour	White
Actuator Style	Round
Switch Contact Current	6A
Contact AC Voltage	600V
Better World Claim	Repairable by the End User
Legend	Symbol
Various types of connection are available	screw clamp, connector, Faston connector, spring terminal, or printed circuit board
General purpose offer covering all segments and applications	Industry
Ideal in extreme environments	food and beverage, marine, etc. Building and infrastructure

Key Features

This push button has a round actuator with white color for clear visibility.
It is panel mount type designed for easy installation and integration.
The contact configuration is Single Pole Single Throw (SPST) with screw terminal type ensuring secure connections.
The push button supports high voltage operation up to 600 V AC/DC with a contact current rating of 6 A.
It offers high ingress protection rating IP69 suitable for harsh environments involving water and dust.
Operating temperature range from -40°C to +70°C allows usage in extreme conditions.
The compact size with dimensions of 55 mm height, 42 mm length, and 36.6 mm width optimizes panel space.
Certified to several international standards including EN/IEC, UL, CSA, CE, JIS, and ISO for reliable performance.

Product Description

Schneider Electric XB5FA3341 is a Harmony Series push button switch designed for robust industrial and commercial electrical control panels. This push button switch operates with a spring return mechanism and features a round white actuator, making it highly visible and intuitive for users. It requires a 30 mm panel cutout for mounting, making it compatible with standard panel configurations.

The switch provides Single Pole Single Throw (SPST) contact configuration with screw terminal connections ensuring secure and vibration-resistant wiring. Designed to operate at 600 V AC/DC and handle contact currents up to 6 A, it is suitable for a wide range of electrical applications requiring reliable switching under challenging conditions.

The product is rated to IP69, offering the highest degree of protection against dust ingress and powerful water jets, making it ideal for use in harsh industrial environments such as food processing, marine, infrastructure, and manufacturing sectors. Its operating temperature range from -40°C to +70°C enables it to perform reliably in extreme climatic conditions.

The housing and bezel are made of plastic with antimicrobial characteristics and a flush-mounted design improving ergonomics and aesthetics. The switch assembly is certified to international standards including EN/IEC 60947 series, UL 508, CSA C22.2 No 14, CE marking, JIS, and ISO standards ensuring compliance and safety across global markets. Accessories are available separately to customize installation needs.

This push button features white LED illumination for status indication. Installation requires only a standard cross-head screwdriver for panel mounting. Shake-proof terminal screws prevent loosening under vibration. Suitable for general-purpose switching or specific applications requiring high chemical and vibration resistance.

Compact dimensions and light weight (37 grams) enable incorporation into various control panels without significant space or weight penalties.

Schneider Electric XB5FA3341 Push Button Switch is ideal for industries including manufacturing, automation, food and beverage, infrastructure, marine, and other heavy-duty applications. The blend of high ingress protection, chemical resistance, and versatile certification makes it a dependable choice for reliable panel control switches.

Explore EnvMart's extensive range of Schneider Electric products and find matching components to create robust electrical control solutions optimized for your industrial needs.
