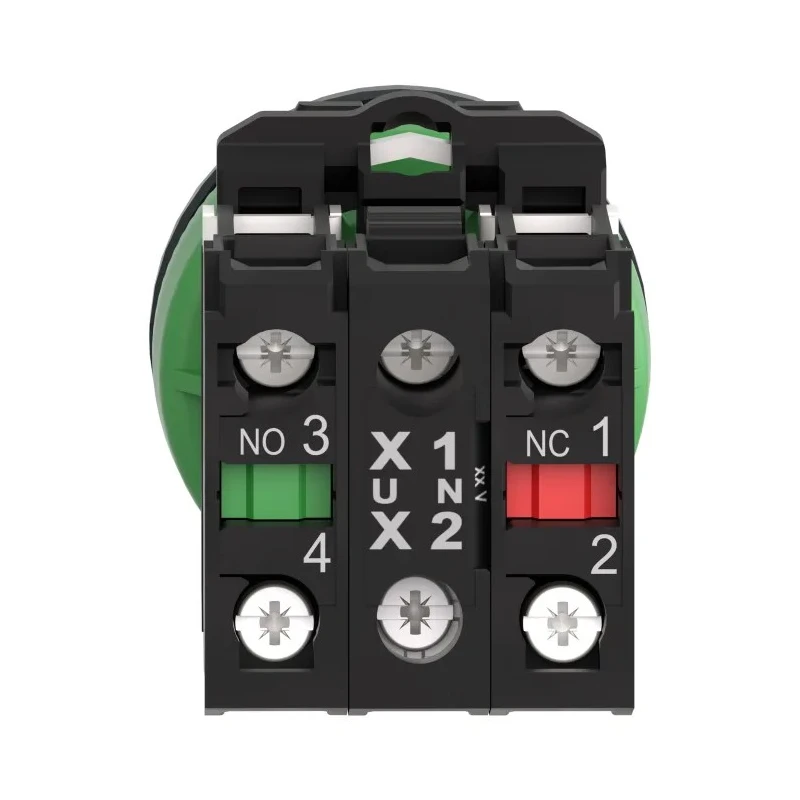

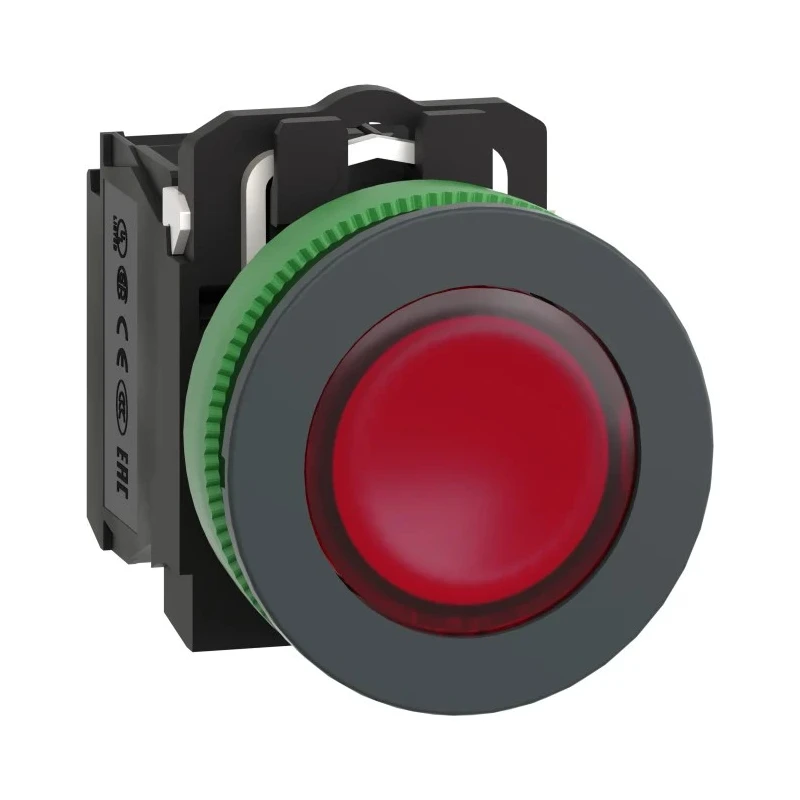

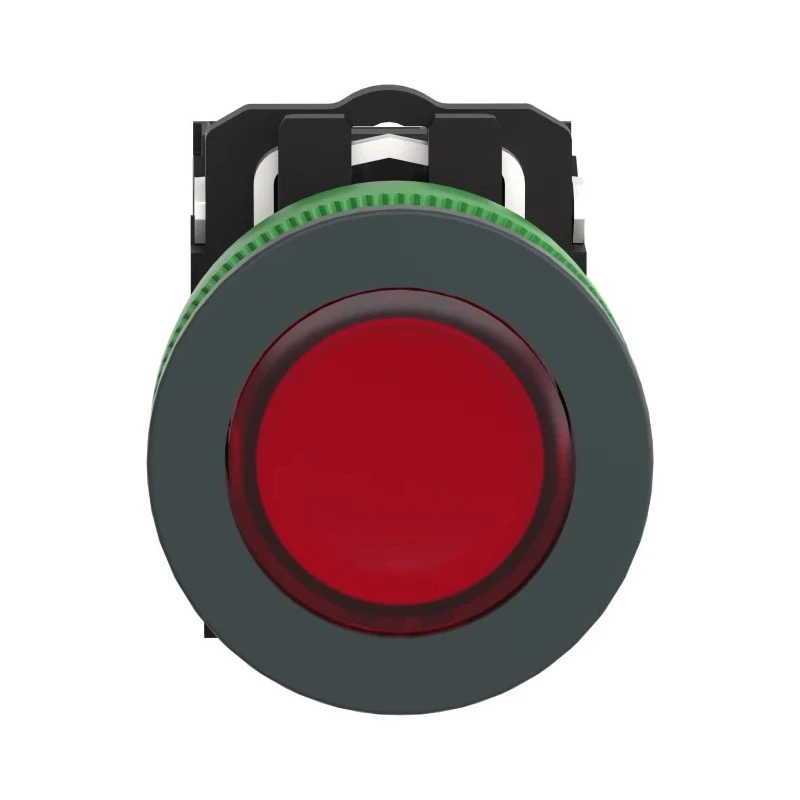

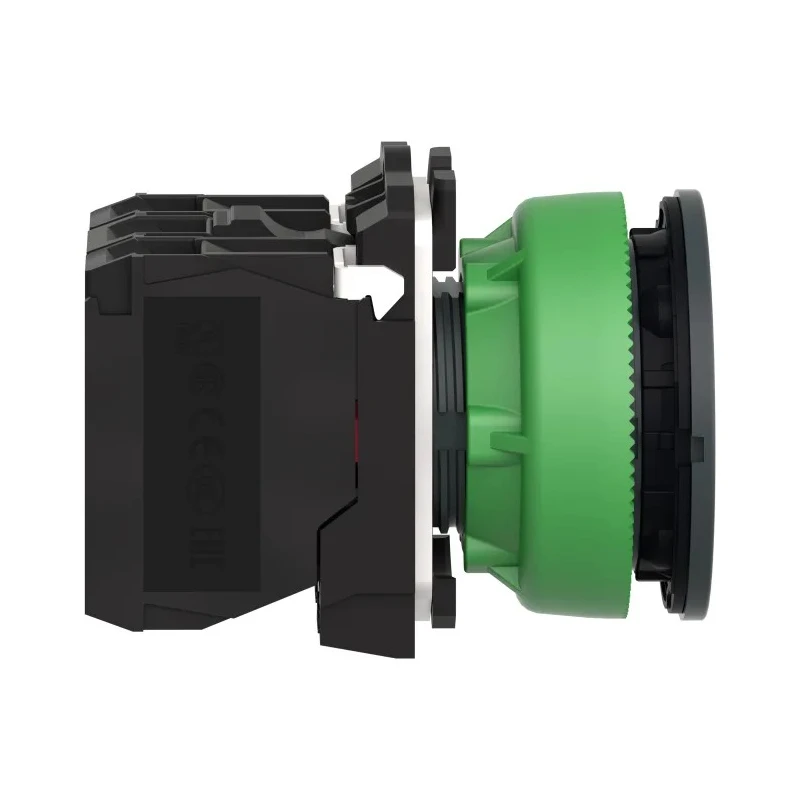

Schneider Electric Harmony Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB5FW34M5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 55mm |
| Model | XB5FW34M5 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Contact DC Voltage | 600V dc |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Contact AC Voltage | 600V |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| General purpose offer covering all segments and applications | Industry |
| Ideal in extreme environments | food and beverage, marine, etc. Building and infrastructure |
Key Features
- The actuator is round and red in color, providing clear indication with an integrated red LED illumination.
- Designed for panel installation with a mounting diameter of 30.5 mm and dimensions of 42 mm height, 55 mm length, and 36.6 mm width.
- It operates reliably between -40°C and 70°C, suitable for harsh industrial environments.
- Rated for contact voltages of up to 600 V AC and DC and contact current of 6 A for versatile electrical applications.
- The switch offers IP66, IP67, IP69, and IP69K ingress protection ratings ensuring high resistance to dust, water, and shock.
- Equipped with screw terminal type for secure electrical connections.
- Complies with multiple international standards including EN/IEC, UL, CSA, and JIS for quality and safety assurance.
- Its flush mount design provides improved ergonomics and antimicrobial characteristics.
Product Description
Schneider Electric XB5FW34M5 Harmony Series illuminated push button switch is engineered for industrial and commercial use, offering reliable operation with a spring return and single pole double throw (SPDT) contact configuration. This panel-mounted switch features a 30 mm cutout size, suitable for integration into various automation and control panels.
The actuator is ergonomically designed with a round shape and is red in color, including a clear red LED illumination to ensure high visibility. It is constructed from durable plastic materials with flush mount aesthetics and antimicrobial properties adding to both functional and hygienic benefits.
Operating within a temperature range of -40°C to 70°C, the switch is well-suited for extreme environments such as food processing, marine applications, and building infrastructures. It is rated for contact voltages of 600 V (AC/DC) and an electrical current capacity of 6 A, making it suitable for general industrial electrical circuit control.
This product features multiple ingress protection ratings - IP66, IP67, IP69, and IP69K - offering resistance against dust, water jets, and high pressure washdowns. Its robust design includes shake-proof terminal screws and screw clamp terminals for secure wiring and vibration resistance.
The switch meets a comprehensive range of international industrial standards including EN/IEC 60947, UL 508, CSA C22.2, JIS standards, and ISO certifications, ensuring compliance and safety for diverse markets globally.
Installation is simplified with supplied mounting accessories such as plastic bezel and fixing collar. Additional accessories like metal rings and protective washers are available separately to customize the switch assembly as needed. The product’s packaging includes one unit of the illuminated push button switch.
The actuator color is red for immediate recognition and ease of use. Spring return switch operation provides positive return action for safety and reliability. Panel mount type with a 30 mm cutout size enables precise installation.
IP ratings protect against dust ingress and water jets, ensuring long product life. Comprehensive international certifications validate product quality and safety. Screw terminal type facilitates secure and easy electrical connection.
This switch is optimized for applications in electrical automation, industrial control, HVAC systems, manufacturing plants, and infrastructure projects. Schneider Electric’s Harmony XB5 series is known for its durability, compliance, and user-friendly design.
Explore the extensive range of Push Button Switches in the Electronics & Electricals category at EnvMart for all your industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 70°C, making it suitable for use in extreme environments.
This switch has IP66, IP67, IP69, and IP69K ingress protection ratings, ensuring high resistance to dust and water.
The required panel cutout size for this switch is 30 mm.
The contact configuration of this model is SPDT (Single Pole Double Throw).
The switch is rated for a contact current of 6 A, suitable for various electrical applications.
It features a screw terminal type for secure electrical connections.
The actuator is red in color, which provides clear indication and high visibility when in use.
The dimensions of this model are 42 mm in height, 55 mm in length, and 36.6 mm in width.
This switch is ideal for extreme environments such as food processing, marine applications, and building infrastructures.
The minimum operating temperature for this switch is -40°C, allowing it to function in harsh conditions.
It complies with multiple international standards including EN/IEC, UL, CSA, and JIS, ensuring quality and safety.
This model features a spring return switch operation, which provides positive return action for safety and reliability.
