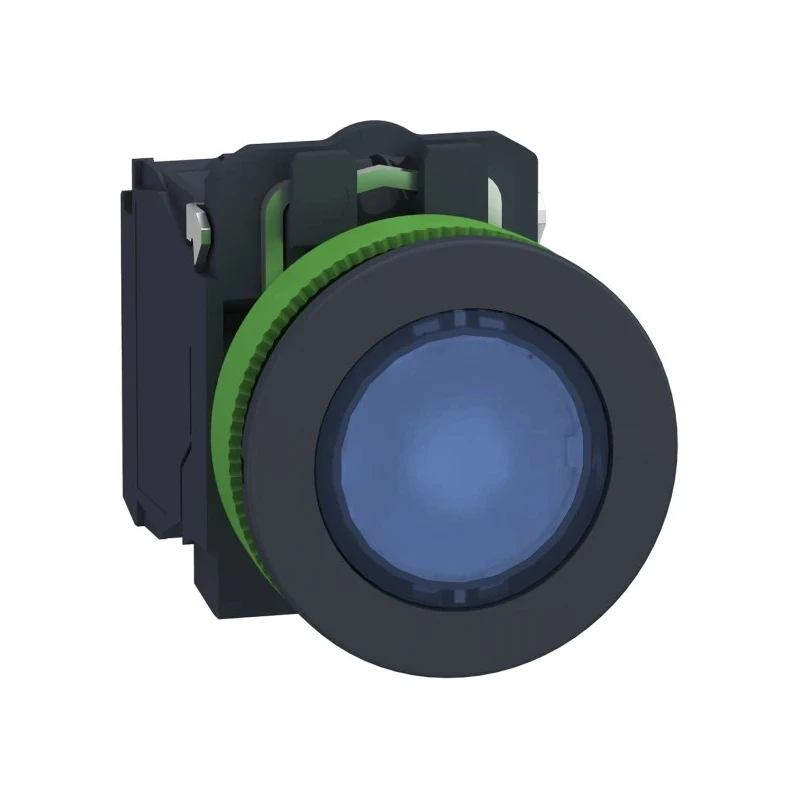

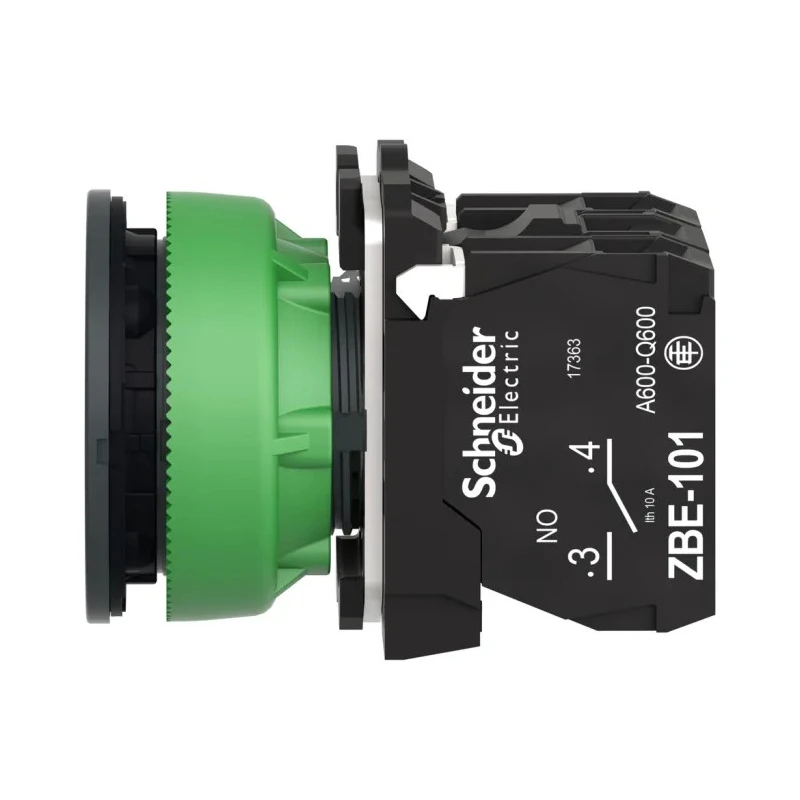

Schneider Electric XB5 Series Illuminated Push Button Switch SPDT 30 mm Cutout Spring Return Blue LED IP66 XB5FW36G5

Schneider Electric XB5FW36G5 is a high-quality illuminated push button switch designed for industrial and commercial applications. Featuring a spring return actuator mechanism and a blue LED light source, this switch offers clear visual feedback and reliable operation. The round actuator design with a 30 mm panel cutout ensures smooth integration into control panels.

Constructed from durable plastic materials, the switch is flush-mounted with a 30.5 mm mounting diameter, making it compact and ergonomic. The device supports AC and DC voltages up to 600V with a contact current rating of 6A. Its screw clamp terminal design allows secure and vibration-proof electrical connections.

With IP66, IP67, IP69, and IP69K ratings, the switch provides excellent ingress protection ensuring resistance to dust, heavy water jets, and immersion. It also holds certifications such as EN/IEC 60947 series, UL 508, CSA C22.2, JIS standards, and CE marking, underscoring its suitability for demanding industrial environments including food and beverage processing, marine applications, and building infrastructure.

The switch operates efficiently in extreme temperature conditions from -40°C to 70°C and features antimicrobial characteristics contributing to hygiene in sensitive settings. Accessories like flush mounting kits, metal rings, and protective washers are available separately to customize installations.

The product features a blue LED illumination for clear indication. It has a single pole double throw (SPDT) contact configuration for versatile switching. The switch is rated for AC and DC voltages up to 600V. IP66, IP67, IP69, and IP69K ratings provide excellent protection against dust, water, and shock.

Designed with a round actuator style and a mounting diameter of 30.5 mm for easy installation. Suitable for industrial applications with operating temperatures ranging from -40°C to 70°C. Equipped with screw clamp terminals for secure wiring connections.

Complies with major international standards including EN/IEC, UL, CSA, and JIS certifications.

This Push Button Switch is eco-friendly, compliant with RoHS and WEEE directives promoting environmental protection. It is user repairable and designed for simplified mounting with common hand tools, supporting durability and maintenance ease in industrial settings. The packaging includes one unit per pack.
