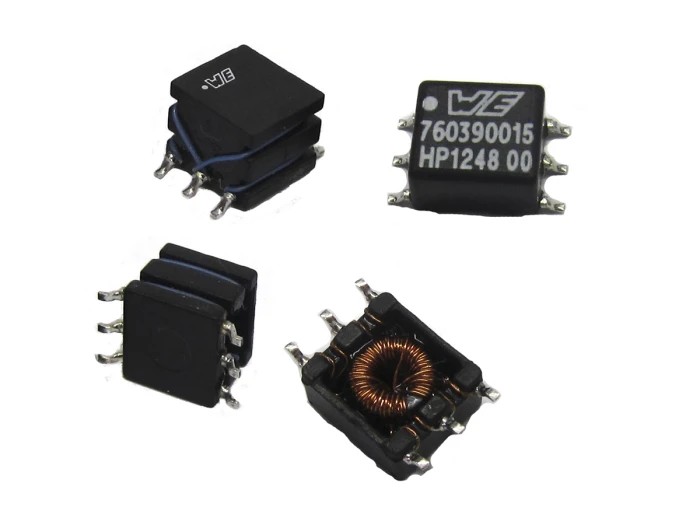

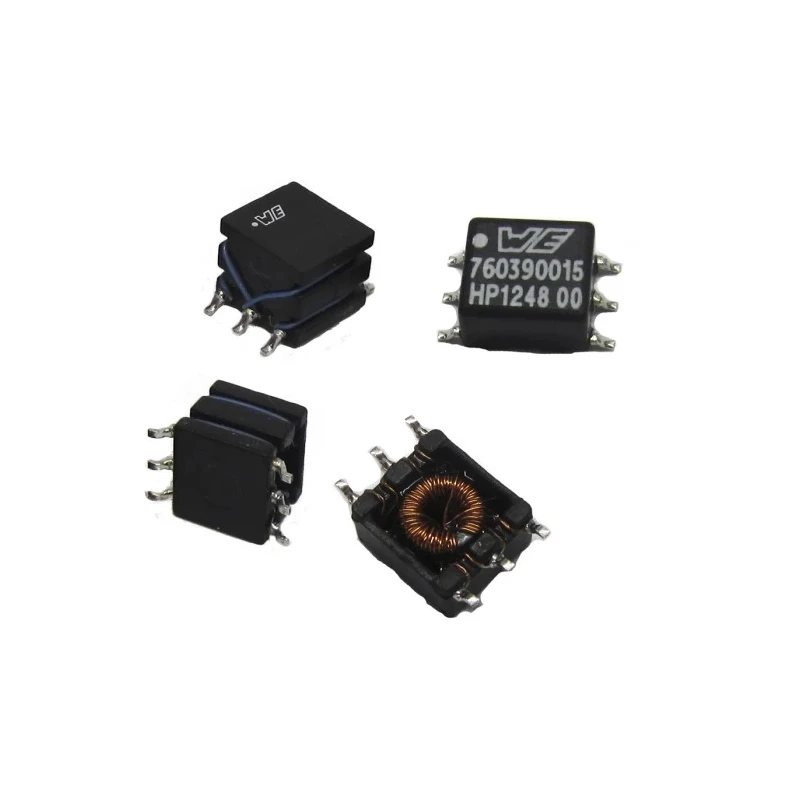

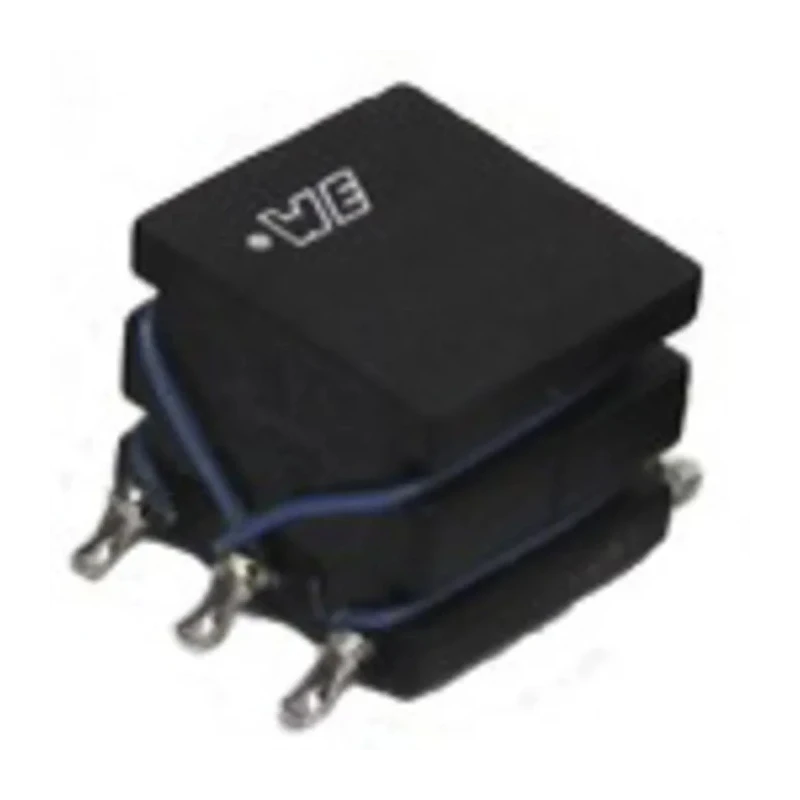

Wurth Elektronik Surface Mount PCB Transformer 3.3 V dc Primary, 5 V 1 Output, 350mA, 8x7.62x9.14mm, REACH and 750313626

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Surface Mount PCB Transformer 3.3 V dc Primary, 5 V 1 Output, 350mA, 8x7.62x9.14mm, REACH and 750313626

Name: Wurth Elektronik Surface Mount PCB Transformer 3.3 V dc Primary, 5 V 1 Output, 350mA, 8x7.62x9.14mm, REACH and 750313626
Brand: Wurth Elektronik
SKU: 319433
Price: 4.99 USD
Availability: InStock



Category PCB Transformer Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Length	8mm
Depth	9.14mm
Operating Temp	-40°C to 125°C
Width	7.62mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Interfaces	LAN
Number of outputs	1
Standards/Approvals	REACH, Free JEDEC JS709B, ASNZS668.1 and J6681, EN6681, RoHS, IEC606641, CSA, UL6681CSA6681, IEC6180051, IEC6681, cULus Approva
Number of Pins	6
Primary Voltage	3.3 V dc
Secondary Voltage	5 V
Minimum Operating Frequency	250kHz
Maximum Operating Frequency	550kHz
PCB Transformer Current	350mA

Key Features

Compact dimensions of 8 mm length, 7.62 mm width, and 9.14 mm depth for easy PCB integration.
Operates within a temperature range of -40°C to 125°C for robust performance.
Surface mount design with 6 pins for secure and space-saving installation.
Operates at frequencies from 250kHz to 550kHz, suitable for high-frequency applications.
Complies with REACH, Free JEDEC JS709B, ASNZS668.1 and J6681, EN6681, RoHS, IEC606641, CSA, UL, and cULus approvals.
Ideal for isolated interface power supplies in CAN, RS-485, RS-422, RS-232, SPI, I2C, and low-power LAN applications.
Used in industrial automation, process control, medical equipment, PLC modules, AC motor drives, UPS, solar inverters, energy meters, and protection relays.

Product Description

Wurth Elektronik 750313626 surface mount PCB transformer features a primary voltage of 3.3 V dc and a secondary voltage output of 5 V with a maximum current of 350mA. Its compact size measuring 8 mm in length, 7.62 mm in width, and 9.14 mm in depth facilitates easy mounting on PCBs.

The transformer operates efficiently within a temperature range from -40°C to 125°C and supports high-frequency operation between 250kHz and 550kHz, making it suitable for various electronic applications.

This component is certified to meet stringent standards including REACH, Free JEDEC JS709B, ASNZS668.1 and J6681, EN6681, RoHS directives, IEC606641, CSA, UL, and cULus approvals, ensuring compliance and safety in industrial use.

It is designed as a push-pull transformer optimized for Texas Instruments devices and is useful for isolated interface power supplies and signal isolation in communication protocols such as CAN, RS-485, RS-422, RS-232, SPI, and I2C.

Applications span industrial automation, process control, medical instrumentation, PLC analog and digital I/O modules, isolated gate driver supplies, AC motor drives, UPS systems, solar inverters, polyphase energy meters, protection relays, and intelligent electronic devices (IEDs).

Compact design with surface mount type and low profile. Wide operating temperature range from -40°C to 125°C. Compliance with multiple international standards ensuring safety and reliability. High-frequency operation suitable for modern electronic circuits.

Versatile usage across medical, industrial, and automation equipment. Supports isolated power supply requirements and communication interface protection. Push-pull design optimized for Texas Instruments compatible circuits.

It is ideal for engineers and designers seeking a reliable PCB transformer for demanding electronic applications. Explore more products in PCB Transformers category and other Wurth Elektronik electronic components on EnvMart for comprehensive sourcing needs.
