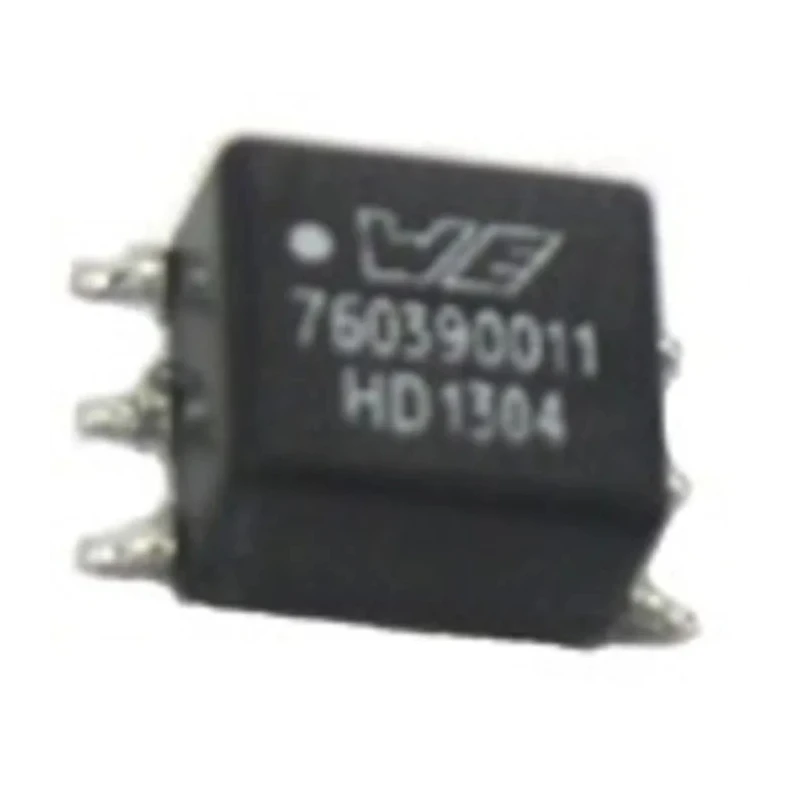

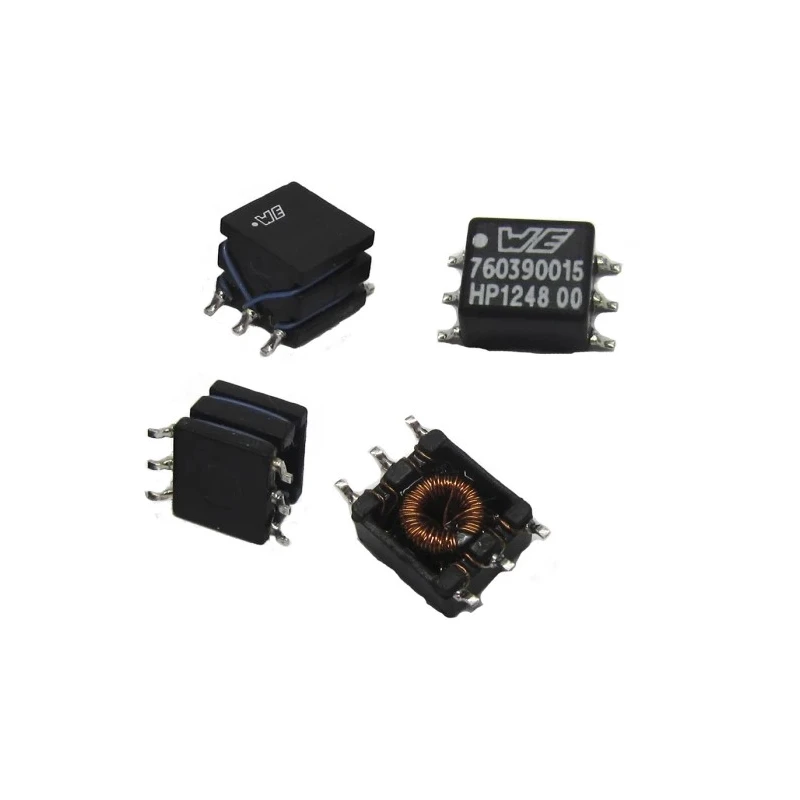

Wurth Elektronik 5 V 1 Output Surface Mount PCB Transformer with 3.3 V DC Primary Voltage 6 Pins 350mA Current 760390013

Wurth Elektronik 760390013 is a high-performance 5 V single output surface mount PCB transformer constructed for low-profile, space-saving power isolation and reliable signal integrity in demanding industrial environments.

This transformer is designed with a primary voltage of 3.3 V DC and supports a secondary voltage of 5 V, with a continuous current capacity of 350 mA. Its compact dimensions of 7.14mm length, 4.19mm width, and 6.73mm depth facilitate easy integration into dense PCB layouts.

Equipped with 6 pins for surface mounting, this device ensures efficient assembly and stable mechanical and electrical connections. It is engineered to operate reliably within a temperature range from -40°C to 125°C, supporting high-frequency operation between 250 kHz and 550 kHz, which is ideal for modern DC-DC converter and isolated power supply designs.

The product adheres to an extensive list of certifications and standards including JEDEC JS709B, IEC6180051, IEC6681, CSA, EN6681, IEC606641, ASNZS668.1, cULus approvals, REACH, and RoHS, ensuring compliance with global safety and environmental requirements.

Applications include isolated interface power supplies for communication protocols such as CAN, RS-485, RS-422, RS-232, SPI, and I2C, as well as industrial automation, process control, medical instrumentation, PLC analog and digital I/O modules, isolated gate driver supplies, AC motor drives, UPS systems, solar inverters, polyphase energy meters, and protection relays.

Operates at primary voltage of 3.3 V DC with a secondary output of 5 V and 350 mA current capacity. Compact size with 7.14mm length, 4.19mm width, and 6.73mm depth. Surface mount type with 6 pins enhances PCB integration.

Reliable operation over -40°C to 125°C temperature range. Suitable for frequencies from 250 kHz to 550 kHz. Complies with international standards and approvals such as JEDEC, IEC, CSA, UL, and RoHS. Manufactured in China, ensuring quality and consistency.

This transformer is a critical component in industrial, commercial, and medical power supply applications requiring isolation, reliability, and compact design. Explore more PCB Transformers from Wurth Elektronik on EnvMart to match your electronic component needs.
