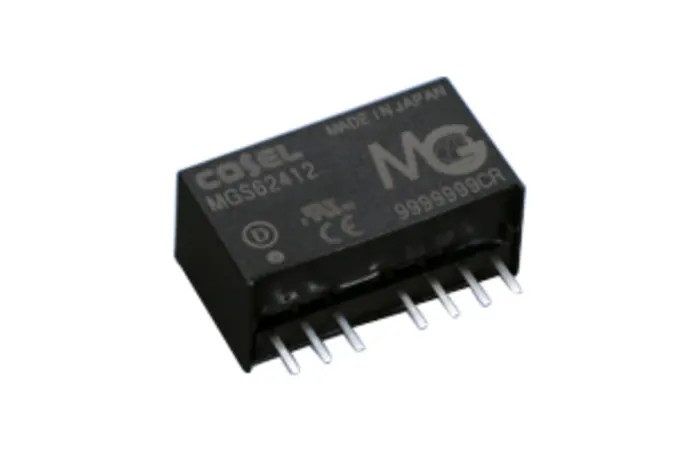

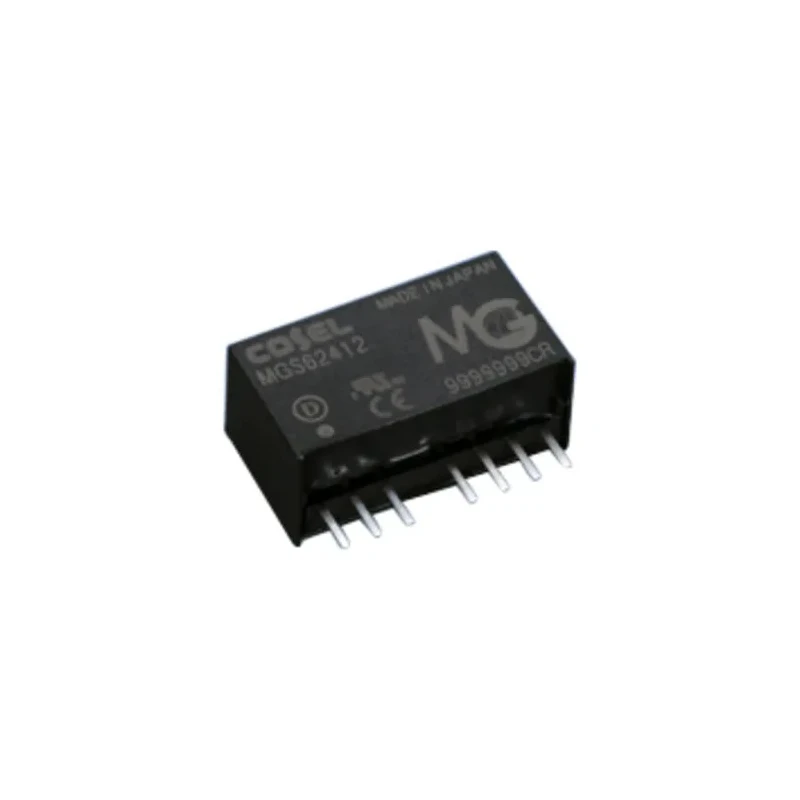

Cosel PCB Mount Dual Output DC/DC Converter 12 V dc ±12 V dc, 420 mA Output, 10.08 W Power, SIP-8 Package MGW101212
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel MGW DC/DC Converter, 12V dc, -12 V dc/ 420 m |
| Brand | Cosel |
| Efficiency | 87% |
| Length | 22mm |
| Model | MGW101212 |
| Depth | 12mm |
| Gross Weight | 7g |
| Width | 9.5mm |
| Mount Type | PCB |
| Series | MGW |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-8 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 10.08W |
| Maximum Input Voltage | 12V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 420mA |
| Output Voltage Adjustment Range | 11.64 to 12.36 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 0.34A |
| Output Voltage 2 | 15V |
Key Features
- Designed for isolated power solutions with dual outputs for enhanced efficiency and reliability.
- Maximum input voltage of 12 V dc with minimum input voltage of 9 V.
- Compact SIP-8 package type with 7 pins and PCB mounting style.
- Operating temperature range from -40°C to 85°C for robust industrial use.
- High isolation voltage of 1 kV dc ensuring electrical safety.
- Efficiency rating up to 87% to reduce energy consumption.
- Low ripple and noise output at 200 mV peak-to-peak.
- Output voltage adjustable within range 11.64 V to 12.36 V.
Product Description
Cosel MGW101212 is a high-quality PCB mount dual output DC/DC converter designed for isolated power supply applications. It delivers dual outputs of ±12 V dc with a maximum output current of 420 mA, suitable for reliable power delivery in demanding industrial and electronic systems.
Operating efficiently over an input voltage range from 9 V to 12 V dc, this converter features a compact SIP-8 package with 7 pins optimized for PCB mounting. With a maximum output power of 10.08 W and efficiency up to 87%, it ensures energy-efficient operation.
The device incorporates an isolation voltage rating of 1 kV dc and a ripple noise specification of 200 mV peak-to-peak, supporting clean and stable output voltage necessary for sensitive electronics. The output voltage adjustment range is precisely controlled between 11.64 V and 12.36 V to suit varied application requirements.
Robust design enables operation in wide temperature ranges from -40°C to 85°C, making it suitable for challenging industrial, laboratory, manufacturing, and power supply contexts. The converter complies with multiple standards including RoHS, CSA, UKCA, CE, cUL, and UL62368-1 for assured quality and safety.
This Cosel MGW series DC/DC converter is ideal for use in industrial power management, embedded electronics, communication devices, and other applications requiring isolated dual voltage output with high reliability.
Designed for isolated dual output power supply applications. Compact SIP-8 package optimized for PCB mounting. High operating efficiency up to 87% reduces energy loss. Wide input voltage range from 9 V to 12 V dc. Dual outputs delivering ±12 V dc voltage.
Maximum output current 420 mA with 10.08 W maximum power. Robust industrial operating temperature range from -40°C to 85°C. High isolation voltage rating of 1 kV dc enhances safety. Complies with major international standards for quality and safety.
Explore more electronic converters and power supply solutions from Cosel and other premium brands in EnvMart’s comprehensive Electronics & Electricals catalog.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 10.08 W.
The output voltage is adjustable within the range of 11.64 V to 12.36 V.
It has an efficiency rating of up to 87%.
The isolation voltage rating is 1 kV dc, ensuring electrical safety.
The operating temperature range is from -40°C to 85°C.
This model features two outputs: +12 V dc and -12 V dc.
The maximum input voltage is 12 V dc, with a minimum input voltage of 9 V dc.
The dimensions are 22 mm in length, 9.5 mm in width, and 12 mm in depth.
The ripple and noise output is specified at 200 mV peak-to-peak.
It is designed for PCB mounting in a compact SIP-8 package.
The maximum output current is 420 mA for the ±12 V outputs.
It complies with multiple standards including RoHS, CSA, UKCA, CE, cUL, and UL62368-1.
