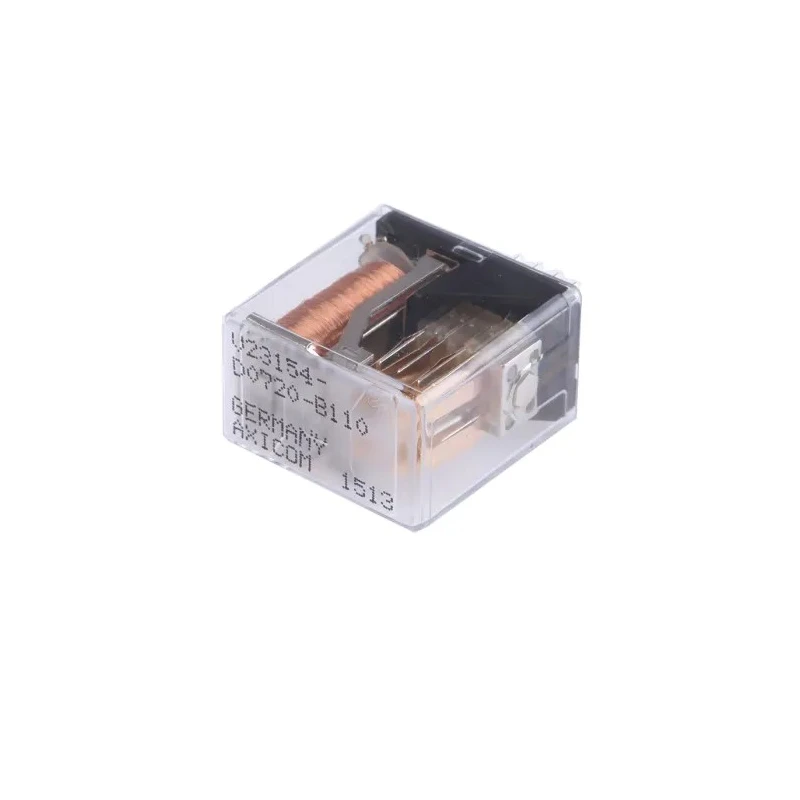

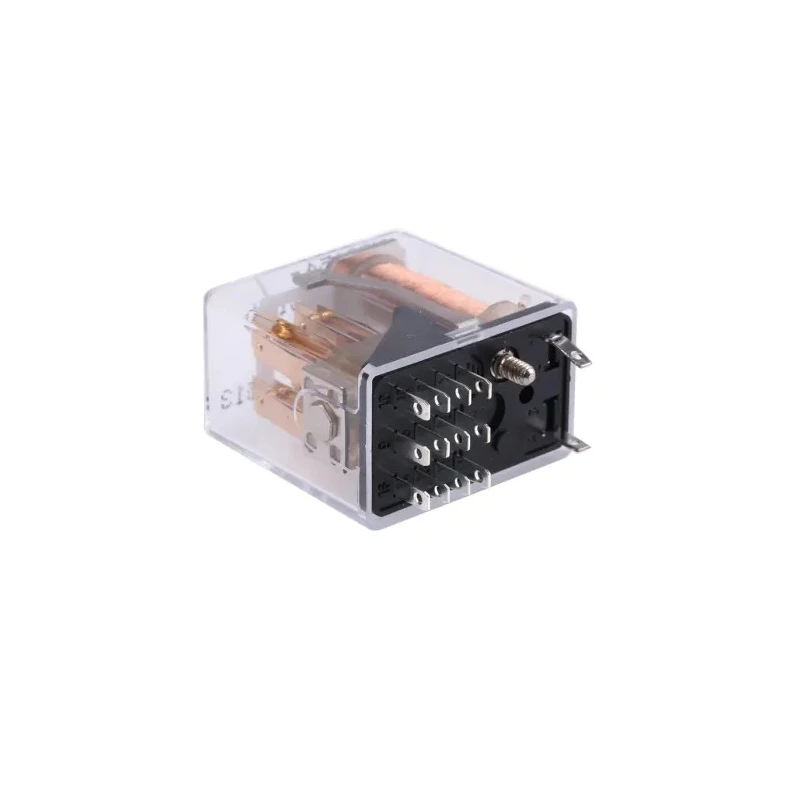

TE Connectivity Surface Signal Relay, 20V DC Coil, 2A Switching Current, SPDT Contact V23154D 720B110 6-1393808-5
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Height | 30mm |
| Length | 30mm |
| Model | V23154D 720B110 6-1393808-5 |
| Width | 24mm |
| Mount Type | Surface |
| Contact Material | Silver Nickel Alloy |
| Series | Cradle N |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 550Ω |
| Coil Voltage | 20V dc |
| Switching DC Voltage | 150V dc |
| Switching AC Voltage | 150V ac |
| Coil Power | 727mW |
Key Features
- Designed for surface mount with through-hole terminal type for versatile installation.
- Single Pole Double Throw (SPDT) contact configuration enables versatile circuit control.
- Coil resistance of 550 Ohms with coil power consumption of 727mW ensuring efficient operation.
- Silver Nickel Alloy contact material enhances durability and conductivity.
- Operating temperature range from -40°C to 70°C suits harsh industrial environments.
- Compact size with dimensions 30mm length, 30mm height, and 24mm width for space-saving installations.
- Compliant with RoHS standards ensuring environmental safety.
- Plug-in and fixed installation capable for flexible mounting options.
Product Description
TE Connectivity V23154D 720B110 6-1393808-5 is a high-quality Surface Signal Relay featuring a 20V DC coil voltage and a switching current of 2A. This relay is engineered for reliable signal switching in various industrial, automation, and electrical applications requiring precise control and durability.
It utilizes a Single Pole Double Throw (SPDT) contact configuration, enabling switching between two circuits with a single relay mechanical movement. The relay mounts on surfaces using through-hole terminal type, offering easy installation and replacement in printed circuit boards or control panels.
The coil resistance of 550 Ohms and coil power of 727mW ensure efficient energy use while providing reliable actuation. Contact material composed of Silver Nickel Alloy provides excellent longevity and electrical conductivity, reducing wear and contact resistance over time.
Designed to operate within a temperature range of -40°C to 70°C, this relay withstands harsh environmental conditions often encountered in industrial and manufacturing settings. Its compact size with 30mm length, 30mm height, and 24mm width facilitates integration into compact equipment and systems.
The relay is compliant with RoHS standards, aligning with environmental regulations restricting hazardous substances. Its design supports both plug-in and fixed installations, making it adaptable for different mounting requirements.
This relay is ideal for use in automation systems, signal conditioning, industrial control panels, and electronic switching applications, providing robust performance and reliability in signal relay tasks. Manufactured in Germany, it meets stringent quality and reliability expectations.
Designed for surface mount with through-hole terminal type for versatile installation. Single Pole Double Throw (SPDT) contact configuration enables versatile circuit control. Coil resistance of 550 Ohms with coil power consumption of 727mW ensuring efficient operation.
Silver Nickel Alloy contact material enhances durability and conductivity. Operating temperature range from -40°C to 70°C suits harsh industrial environments. Compact size with dimensions 30mm length, 30mm height, and 24mm width for space-saving installations.
Compliant with RoHS standards ensuring environmental safety. Plug-in and fixed installation capable for flexible mounting options. Browse EnvMart's Electronics & Electricals category for Signal Relays by TE Connectivity and other leading manufacturers for your automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 20V DC.
It has a maximum switching current of 2A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions of this model are 30mm in length, 30mm in height, and 24mm in width.
The coil resistance is 550 Ohms.
It operates within a temperature range of -40°C to 70°C.
This model uses a through-hole terminal type for installation.
The contact material is composed of Silver Nickel Alloy, which enhances durability and conductivity.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety regulations.
The coil power consumption is 727mW.
This relay is manufactured in Germany.
It supports both plug-in and fixed installations, providing flexible mounting options.
