Microchip PIC32MZ2064DAB288-I/4J 32 bit microAptiv CPU PIC32MZ Microcontroller 200 MHz 2.048MB FLASH 288-Pin LFBGA

Microchip PIC32MZ2064DAB288-I/4J is a powerful 32 bit microcontroller featuring the microAptiv CPU core operating at 200 MHz, designed to deliver MPU-like performance with MCU ease of design, especially suited for advanced GUI and embedded applications.

This microcontroller offers a significant 2.048MB of Flash memory along with an additional 160 KB of boot Flash and 640KB of SRAM to support large embedded and real-time operating system applications. It includes a 45-channel, 12-bit, 18 MSPS ADC module that supports up to 45 analog inputs for precise analog signal processing.

Connectivity options are extensive, including CAN, UART, I2C, SPI, I2S for audio, high-speed USB Device/Host/OTG, and a 10/100 Mbps Ethernet MAC with MII and RMII interface, making it ideal for complex communication tasks in industrial and automotive environments.

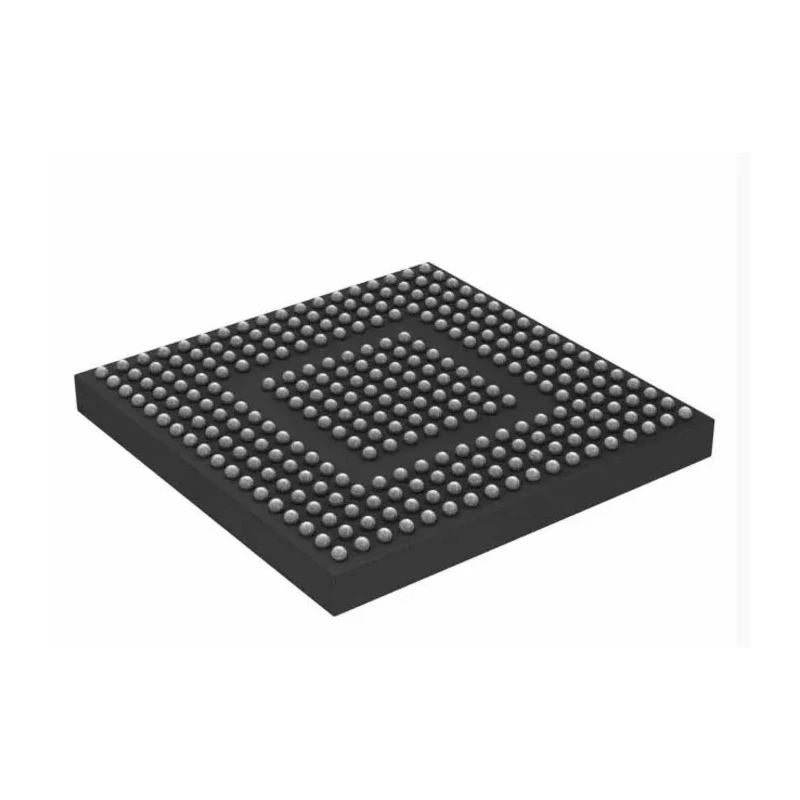

The device supports a broad supply voltage range from 2.2V to 3.6V, operates reliably within temperatures from -40°C to +85°C, and comes in a compact 288-pin LFBGA package measuring 22mm by 22mm and 1mm height, suitable for surface mounting on compact PCBs.

Advanced features such as a Memory Management Unit and microMIPS mode enable optimized embedded OS execution with up to 35% code compression and dual-panel Flash allows live firmware updates. It complies with the AEC-Q100 automotive standard, ensuring durable use in automotive applications.

Built on the MIPS32 microAptiv CPU core delivering up to 330 DMIPS performance. Includes 2MB Flash plus 160 KB boot Flash memory for enhanced firmware capabilities. Features 640KB SRAM and supports up to 45 analog inputs with a 12-bit, 18 MSPS ADC.

Offers multiple communication interfaces including CAN, UART, I2C, SPI, I2S, USB Device/Host/OTG, and 10/100 Mbps Ethernet MAC. Operates within a temperature range of -40°C to +85°C and supply voltage between 2.2V and 3.6V.

Comes in a 288-pin LFBGA surface mount package measuring 22mm x 22mm x 1mm. Includes advanced features such as Memory Management Unit, MicroMIPS code compression, and dual-panel flash for live updates. Complies with automotive standard AEC-Q100 for reliable automotive application deployment.

Integrates integrated graphics controller and graphics processor for GUI/graphics designs. Equipped with 9 timers and 2 analog comparators providing rich peripheral support.

This microcontroller is ideal for industrial, automotive, embedded system, and graphical user interface applications requiring high performance and a rich peripheral set. It supports complex communication protocols and provides robust analog integration, making it suitable for advanced manufacturing, automation, and embedded control systems.
