RS PRO PCB Transformer 5 to 24 V AC 2 Output Through Hole, 230 V AC Primary, 12 VA Power, Dual Secondary Winding 504-549

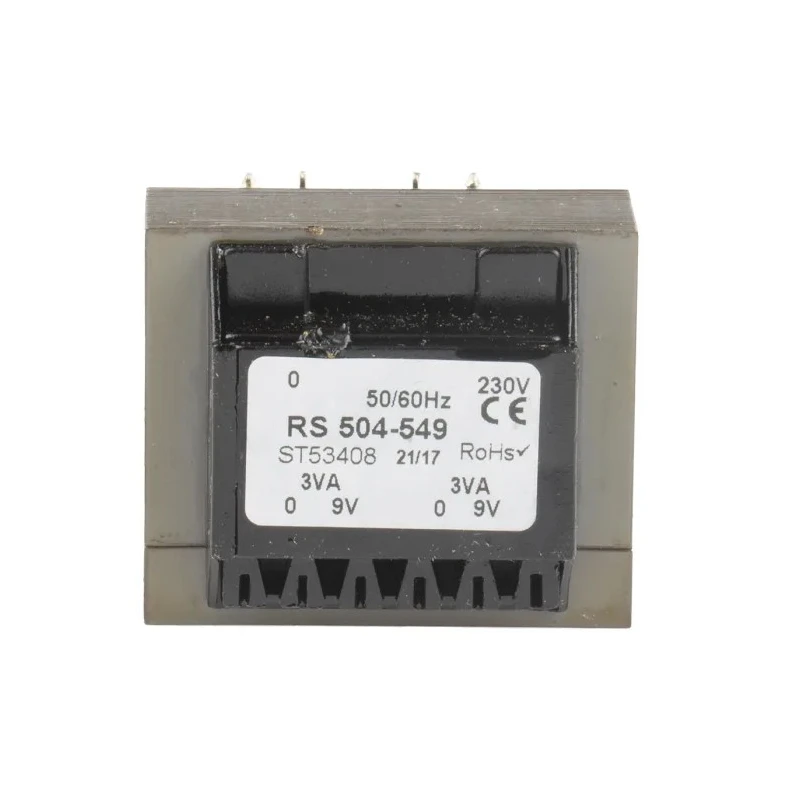

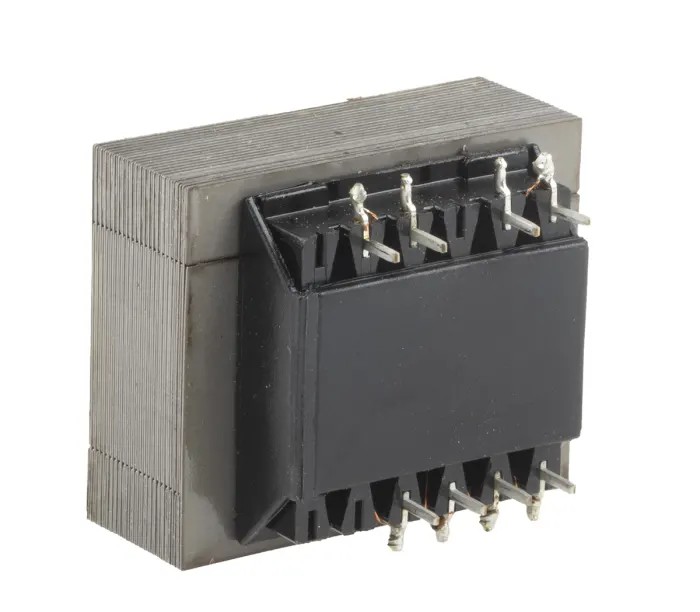

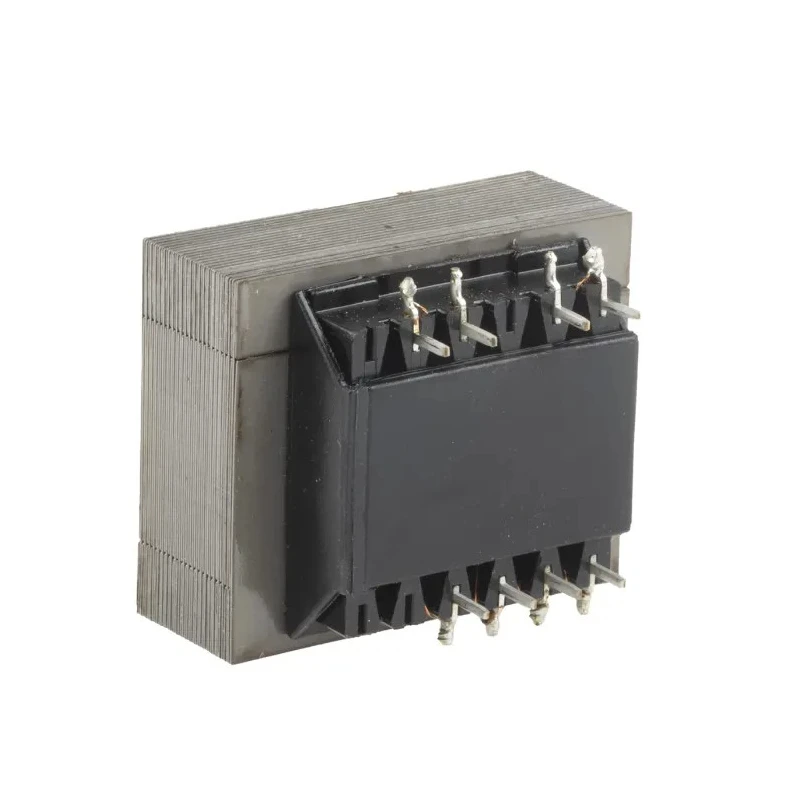

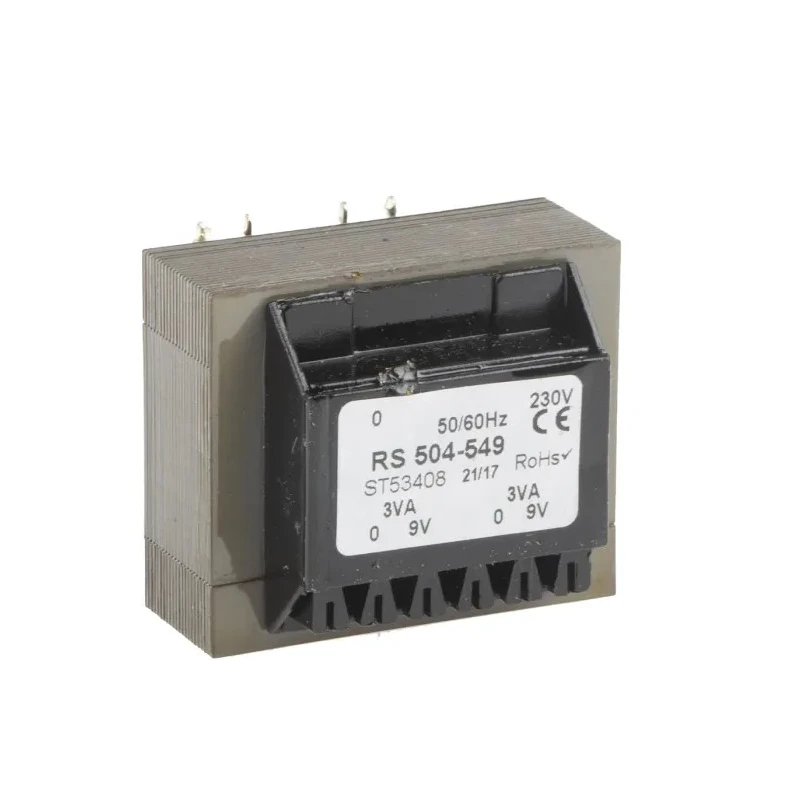

RS PRO model 504-549 PCB Transformer is designed for industrial and commercial electronic applications requiring safe and reliable power conversion. It operates at a primary voltage of 230 V AC and delivers secondary voltages ranging from 5 to 24 V AC with two outputs facilitated by dual secondary windings. The transformer has a power rating of 12 VA and supports through hole PCB mounting with a compact footprint of 43 mm length, 36 mm width, and 33 mm depth.

The construction includes fully shrouded bobbins with extra pins that ensure secure board mounting and prevent accidental contact. It is fully varnish impregnated with laminated open frame design for durability and electric isolation. The unit is 100% electrically and flash tested in accordance with BS3535 and EN 60742 standard tests, guaranteeing performance and safety. Its winding type allows for series or parallel connections of the secondary outputs, providing versatility in voltage and current configurations.

The transformer is suitable for industrial, laboratory, HVAC, and manufacturing applications, particularly where compact PCB transformers with robust safety compliance are required. It complies with international standards including IECBSEN 615581, IECBSEN 615586, RoHS, CE, and ASNZS 61558.1 and 61558.6, making it reliable and environmentally compliant. With a maximum operating temperature of 130°C and operating frequency of 50-60 Hz, it is appropriate for demanding electronic systems.

Made in Poland, this transformer combines manufacturing precision with high-quality components, ensuring long operational life and consistent performance. Its gross weight of 400 grams supports easy handling and integration within electronic assemblies. Applications include power supplies, industrial controls, instrumentation, and other electronics requiring isolation and regulated voltage conversion.

Operates with 230 V AC primary and 5 to 24 V AC secondary voltages. Two output windings for flexible configuration options. Compact through hole mounting design. Fully shrouded bobbin construction for electrical safety. Complies with IECBSEN 615581, IECBSEN 615586, RoHS, CE and Australian standards ASNZS 61558.

Tested according to BS3535 and EN 60742 standards. Maximum operating temperature 130°C. Frequency range 50 to 60 Hz. Lightweight at 400 grams for easy mounting. Explore the RS PRO range and other PCB Transformers at EnvMart for industrial grade components that meet stringent quality and safety standards.
