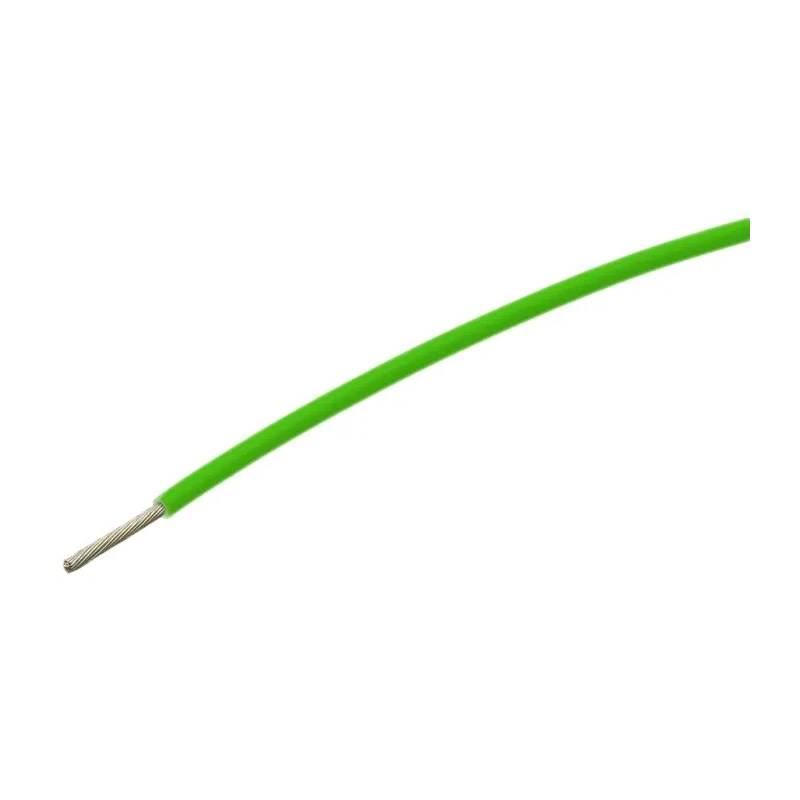

TE Connectivity 55A Series Green 0.33 mm² Hook Up Wire, 22 AWG, 19/0.16 mm Core Strands, 100 m Length, Ethylene 55A0111-22-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 55A0111-22-5 |
| Cable Length | 100m |
| Series | 55A |
| Outside diameter | 1.09mm |
| Maximum Operating Temperature | 150°C |
| Conductor Material | Copper |
| Minimum Operating Temperature | -65°C |
| Jacket Material | Ethylene Tetrafluoroethylene, Fluoropolymer |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 22AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.16mm |
| Size of Strands | 0.16mm |
Key Features
- Single core Hook Up Wire with 22 American Wire Gauge size.
- Cross-sectional area of 0.33 mm² for precise electrical conduction.
- Conductors made of copper strands (19 x 0.16 mm).
- Jacket color is green with flame-retardant and chemically resistant Ethylene Tetrafluoroethylene material.
- Cable length of 100 meters for versatile industrial use.
- Operating voltage up to 600V for varied electronic applications.
- Capable of withstanding maximum operating temperature of 150°C and minimum temperature of -65°C.
- Complies with NEMA-WC-27500 and SAE AS22759/32-35/41 to /46 standards.
Product Description
TE Connectivity 55A0111-22-5 55A Series Green Hook Up Wire is a high-performance single core cable with a cross-sectional area of 0.33 mm² and 22 AWG size, insulated with a modified radiation cross-linked Ethylene Tetrafluoroethylene (ETFE) polymer jacket. This wire features 19 copper strands of 0.16 mm diameter for excellent conductivity and flexibility, over a length of 100 meters.
The ETFE jacket provides exceptional flame retardant properties with chemical resistance and excellent abrasion characteristics, making it suitable for demanding environments. Its dual wall Airframe construction with a total wall thickness of 0.25 mm and contrasting blue core color acts as a damage indicator and enhances durability.
Rated for a maximum operating voltage of 600V and a temperature range from -65°C minimum to 150°C maximum, this wire meets the NEMA-WC-27500 and SAE AS22759 series standards, ensuring compliance with industrial and aerospace requirements.
These technical features make the TE Connectivity 55A0111-22-5 Hook Up Wire ideal for a wide range of applications including commercial wiring, avionics, satellites, aircraft, helicopters, and high-performance military systems where high temperature resistance and mechanical strength are essential.
Single core copper conductor wire with 22 AWG size. 0.33 mm² cross-sectional area with 19 strands of 0.16 mm diameter each. Green ETFE fluoropolymer jacket with flame retardant properties. 100 meters cable length per reel for extended use.
Operating temperature range from -65°C to 150°C. Rated for voltage up to 600V. Compliance with NEMA-WC-27500, SAE AS22759 standards. Dual wall Airframe construction enhances durability and damage detection. Excellent chemical resistance and electrical arc tracking.
Suitable for aerospace, military, and industrial applications requiring high reliability. Explore more advanced electrical wires and cables on EnvMart to ensure the best fit for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this hook up wire is 600V.
The cross-sectional area of this wire is 0.33 mm².
This model can operate in temperatures ranging from -65°C to 150°C.
The cable length is 100 meters per reel.
The jacket is made from Ethylene Tetrafluoroethylene (ETFE), which is a fluoropolymer.
The conductor consists of 19 strands, each with a diameter of 0.16 mm.
The American Wire Gauge size of this wire is 22 AWG.
This wire complies with NEMA-WC-27500 and SAE AS22759 standards.
The outside diameter of the wire is 1.09 mm.
This model is suitable for applications in aerospace, military, and industrial sectors requiring high reliability.
The conductor material is copper, which provides excellent conductivity.
The wire has flame-retardant properties, enhancing its safety in various applications.
