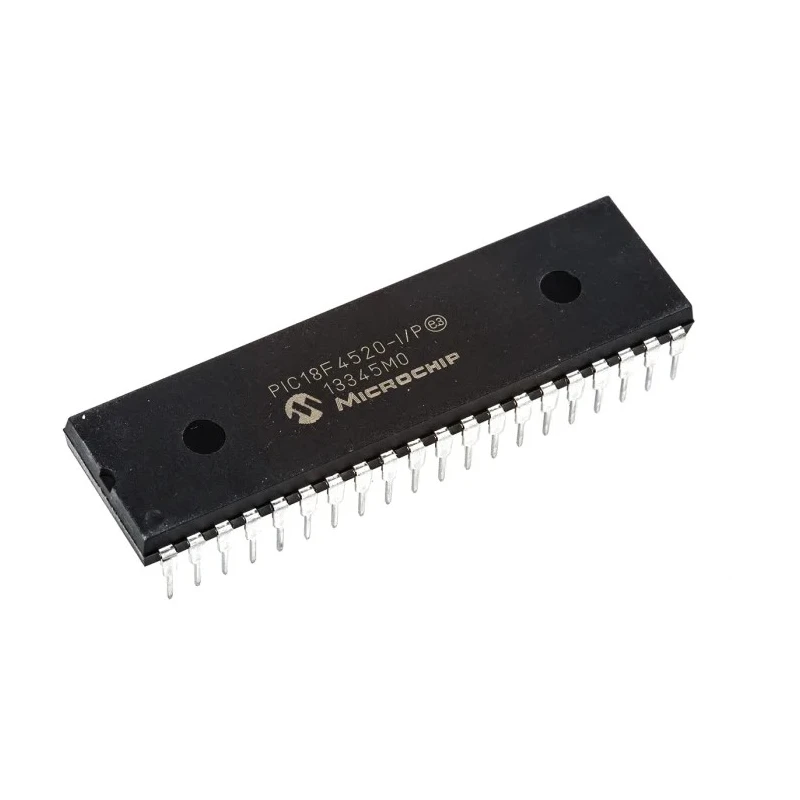

Microchip 8-bit PIC Microcontroller 40 MHz 32 kB FLASH 256 B RAM 40-Pin PDIP PIC18F4520-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC18F4520-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Interface Type | NVMREG |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates at a maximum clock frequency of 40 MHz with 8-bit data bus width.
- Features 32 kB program memory size with FLASH program memory type.
- Includes 1.54 kB RAM and 36 programmable I/O pins for versatile interfacing.
- Supports 13 channels 10-bit ADC and 2 analogue comparators.
- Equipped with 4 timers and on-chip peripherals such as DAC and enhanced capture/compare/PWM modules.
- Designed with nanoWatt technology for low power consumption and extended battery life.
- Wide operating temperature range from -40°C to 85°C for diverse environmental conditions.
- Complies with RoHS standard ensuring environmental safety.
Product Description
Microchip PIC18F4520-I/P 8-bit PIC Microcontroller delivers a high-performance embedded solution operating at 40 MHz with 32 kB FLASH program memory and 256 B RAM. This microcontroller features a 40-pin PDIP package with 36 programmable input/output pins, making it ideal for a wide range of control and automation applications.
Based on Microchip's PIC18 architecture, the PIC18F4520-I/P offers a 31-level hardware stack, 75 instructions (83 with extended instruction set), and a configurable internal oscillator with selectable frequency range from 8 MHz to 31 kHz. It supports nanoWatt technology, enabling ultra-low power operation essential for battery-powered or energy-efficient designs.
The device includes multiple on-chip peripherals such as a 13-channel 10-bit ADC, 2 analogue comparators, 1 x 5-bit DAC, a set of timers including one 8-bit and three 16-bit timers, enhanced capture/compare/PWM modules, and communication interface modules like Master Synchronous Serial Port (MSSP) supporting SPI and I2C, plus Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
Additional features such as Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, Extended Watchdog Timer, High/Low-Voltage Detection, Low-Voltage Programming, In-Circuit Serial Programming, and In-Circuit Debug enhance reliability and ease of development.
Its operating voltage ranges from 1.8 V to 5.5 V with a maximum power dissipation of 800 mW. The microcontroller is suitable for industrial, embedded, automotive, and consumer electronics applications that require reliable, low-power operation with extensive peripheral support.
Operates at 40 MHz with an 8-bit data bus width. Includes 32 kB FLASH program memory and 1.54 kB RAM. Equipped with 36 programmable I/Os and 13 ADC channels. Features nanoWatt technology for low power consumption. Supports advanced interrupt system and timers for precise control.
Complies with RoHS standard for environmental compatibility. Provides through-hole 40-pin PDIP packaging for prototyping. Includes multiple built-in peripherals for diverse applications.
This microcontroller is an optimal choice for embedded systems requiring efficient processing capabilities and flexible peripheral integration. Explore more Microchip Microcontrollers and embedded solutions within the Industrial Electronics category at EnvMart for your next design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features 32 kB of FLASH program memory.
This model includes 1.54 kB of RAM.
The operating temperature range is from -40°C to 85°C.
It has 36 programmable I/O pins.
The device supports 13 channels of 10-bit ADC.
It comes in a 40-pin PDIP package type.
The minimum supply voltage is 1.8 V and the maximum supply voltage is 5.5 V.
It includes 2 analogue comparators, 1 x 5-bit DAC, and 4 timers.
Yes, it complies with RoHS standards for environmental safety.
It supports Master Synchronous Serial Port (MSSP) for SPI and I2C, as well as Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
The height of this microcontroller is 4.95 mm.
