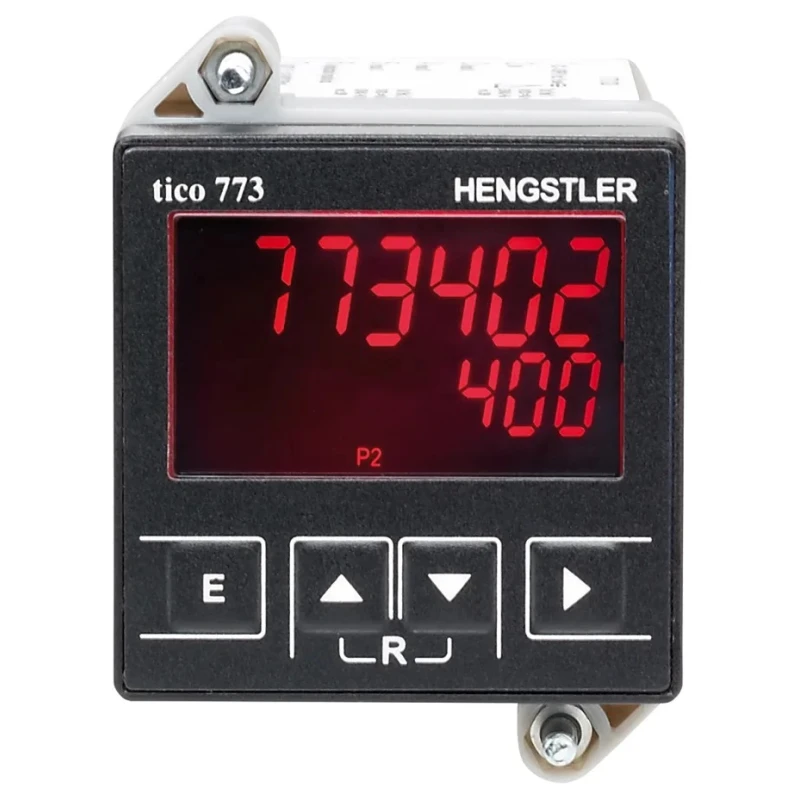

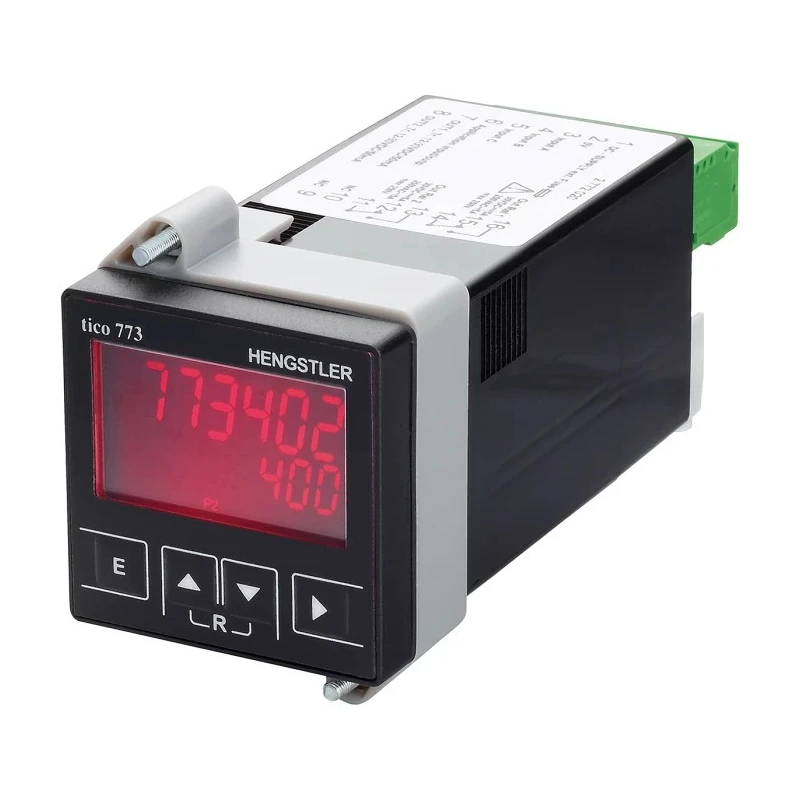

Hengstler Multifunctional 6 Digit Timer Counter TICO 773 , Relay Outputs 250V AC / 30V DC, IP65 Front Panel RS0773402

Free Delivery in India | Lowest Global Shipping Charges

Hengstler Multifunctional 6 Digit Timer Counter TICO 773 , Relay Outputs 250V AC / 30V DC, IP65 Front Panel RS0773402

Name: Hengstler Multifunctional 6 Digit Timer Counter TICO 773 , Relay Outputs 250V AC / 30V DC, IP65 Front Panel RS0773402
Brand: Hengstler
SKU: 316898
Price: 441.34 USD
Availability: InStock



Category Counters Brand Hengstler Condition New

Specifications

Country of Origin	Germany
Brand	Hengstler
Relay outputs	250 V ac / 30 V dc / 5A
Model	RS0773402
Series	TICO 773
Number Of Digits	6
Standards/Approvals	CSA, EN 61010-1, IEC, IEC 61010-1, RoHS, UL
Display and preset range	-999 999 to +999 999
Alarm signal	display flashes when preset 0, 1 or 2 are active

Key Features

Features a clearly readable LCD display with large digits showing -999 999 to +999 999 range.
Input frequency rated up to 60 kHz for versatile signal compatibility.
Equipped with 4 keys to program presets, prescaler, and totaliser separately.
Relay outputs support 250 V AC, 30 V DC with a maximum current of 5 A.
Includes alarm signals with display flashing for active presets 0, 1 or 2.
IP65 protection on the front panel ensures robust operation in industrial environments.
Easy installation enabled by pluggable terminals and compact 48 x 48 mm panel mounting.
Designed and manufactured in Germany for high reliability and accuracy.

Product Description

Hengstler RS0773402 TICO 773 is a multifunctional 6 digit timer counter designed for precise and reliable process control. It is universally applicable as a tachometer, timer, shift-counter, and batch-counter offering simplified handling for industrial automation tasks.

This counter features a clearly readable LCD with large digits that display counts and presets in the range from -999 999 to +999 999. The device supports an input frequency up to 60 kHz, allowing versatile signal applications across different industrial environments.

Programming the TICO 773 is straightforward with dedicated keys enabling separate preset adjustment, prescaler settings, and totaliser functions. Alarm signaling is implemented with a flashing display when any of the three presets (0, 1, or 2) are active, enhancing process monitoring capabilities.

Relay outputs provide switching capacity of 250 V AC or 30 V DC at a maximum of 5 A, making it suitable for direct control of external actuators or alarms. The device is compactly designed for panel mounting at 48 x 48 mm and features pluggable terminals for easy installation and maintenance.

With IP65 front panel protection, the TICO 773 withstands dust and water ingress, supporting robust industrial use. Manufactured in Germany, it adheres to strict quality standards including CSA, EN 61010-1, IEC, RoHS, and UL approvals ensuring safety and performance compliance.

Typical applications include time controlling, position indication, batch counting, cutting to length, and rotation speed control. This counter enhances operational efficiency in manufacturing, process control, and automation systems.

Clearly readable 6 digit LCD display ranging from -999 999 to +999 999. Input frequency up to 60 kHz for wide signal compatibility. Four keys for individual presets and totaliser programming. Relay outputs rated for 250 V AC / 30 V DC, 5 A maximum.

Alarm signaling with flashing display when presets are active. Front panel IP65 protection for industrial durability. Easy installation with pluggable terminals and standard panel mount. Explore more automation and control gear products to enhance your industrial control systems at EnvMart.
