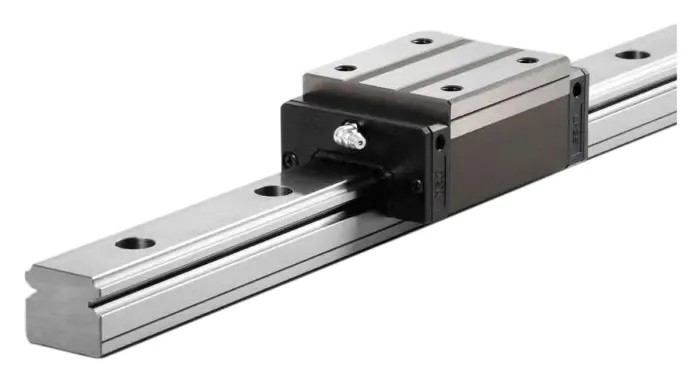

NSK Guide Block Linear Motion Carriage Dynamic Load 18800 N NAH20EMCE01PCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | NSK |
| Model | NAH20EMCE01PCZ |
| Series | Not Found |
| Static Load Rating | 32500N |
| Dynamic Load Rating | 18800N |
| Carriage Length | 69.8mm |
| Carriage Width | 63mm |
| Acceptable Rail Width | 20mm |
| NSK Guide Block NAH20EMCE01KCZ N/P R 85 N Series, 18800 N Dynamic LoadBrand | NSK |
Key Features
- The carriage length measures 69.8 mm, ensuring precise linear movement.
- The carriage width is 63 mm, suitable for compact machine designs.
- Static load rating is 32500 N, providing strong support under stationary conditions.
- Accommodates rail widths of 20 mm for compatibility with various setups.
- Redesigned groove and ball recirculation path extend bearing life and reduce noise by up to 3 dB.
- Installation dimensions match existing LH and LS ranges for easy replacement and upgrades.
- Ideal for use in machine tools, robotics, semiconductor production lines, and automation systems.
- Available with NSK’s proprietary K1 lubrication system for long-term maintenance-free operation.
Product Description
NSK NAH20EMCE01PCZ Guide Block is a linear motion carriage part of the NS series designed for high dynamic loads of 18800 N. It measures 69.8 mm in carriage length and 63 mm in width, fitting acceptable rail widths of 20 mm. This guide block is engineered for industries requiring precise and reliable linear motion, such as machine tools, robotics, semiconductor manufacturing, and automation lines.
The NS and NH series represent NSK's latest advancement in linear motion technology, featuring a new groove design that doubles life expectancy by increasing contact areas and reducing surface pressure. This significantly extends maintenance intervals and improves productivity.
The carriage includes a redesigned ball recirculation path that supports higher speeds and reduces operational noise by up to 3 dB. It maintains compatibility with previous LH and LS range installation dimensions, enabling seamless integration and upgrades.
Static load capacity is rated at 32500 N, providing stability under heavy stationary loads. The dynamic load rating of 18800 N ensures excellent performance in demanding applications.
NSK’s unique K1 lubrication system uses a mix of 70% mineral oil and 30% polyolefin resin, offering long-term maintenance-free service and enhanced durability. The carriage length measures 69.8 mm, providing precise linear control.
The width is 63 mm, suitable for compact industrial machinery. Supports a dynamic load rating of 18800 N for robust operation. Static load rating of 32500 N ensures stability. Acceptable rail width is 20 mm, compatible with NSK NS and NH series rails.
Advanced groove design extends lifespan and reliability. Low noise operation with redesigned ball recirculation. Installation-compatible dimensions facilitate easy replacement. K1 lubrication system delivers long-term maintenance-free performance.
This guide block is commonly used in industrial applications including automated manufacturing, robotics movement systems, semiconductor device assembly, and precision measurement tools. It combines strength, durability, and compatibility to meet modern mechanical system demands.
Explore more NSK linear motion components and guide blocks for reliable and efficient machinery systems at EnvMart.
Explore more products in our Linear Guide Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this guide block is 18800 N, making it suitable for demanding applications requiring robust performance.
The carriage length is 69.8 mm and the width is 63 mm, designed for compact machine designs.
The static load rating is 32500 N, providing strong support under stationary conditions.
This model accommodates rail widths of 20 mm, ensuring compatibility with various setups.
The redesigned groove and ball recirculation path extend bearing life and reduce noise by up to 3 dB, enhancing operational efficiency.
It features NSK’s proprietary K1 lubrication system, which provides long-term maintenance-free operation.
This guide block is commonly used in machine tools, robotics, semiconductor production lines, and automation systems.
Yes, the installation dimensions match existing LH and LS ranges, allowing for easy replacement and upgrades.
The NS series features a new groove design that doubles life expectancy by increasing contact areas and reducing surface pressure.
The 63 mm width is designed to fit compact industrial machinery, optimizing space in machine designs.
It offers precise linear movement and robust support, making it ideal for high-performance automation applications.
The country of origin for this guide block is India.
