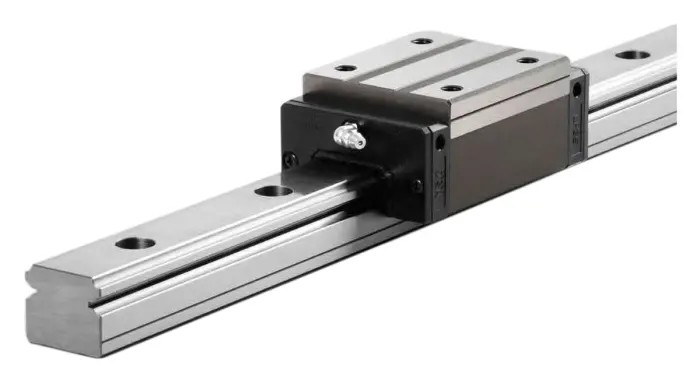

NSK Guide Block COMBISTOP 38 Series, Dynamic Load 11300 N, Carriage 55mm x 47mm NAH15EMCE01KCZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | NSK |
| Model | NAH15EMCE01KCZ |
| Series | COMBISTOP 38 |
| Standards/Approvals | TÜV approved to DIN/VDE 0580, CSA, CE approval according to low voltage regulation, C/US and CE (low voltage) approved |
| Static Load Rating | 20700N |
| Dynamic Load Rating | 11300N |
| Carriage Length | 55mm |
| Carriage Width | 47mm |
| Linear,guide carriage,15mm,HSR/BBrand | THK |
| HSR-A linear guide block,56.5L x 47WmmBrand | THK |
| Brake,failsafe,combistop,spring applied,electromagBrand | KEB |
| NSK Guide Block LAH15 EMZ-K, LHBrand | NSK |
Key Features
- The COMBISTOP series features 1.3 times the dynamic load rating compared to previous ranges.
- New groove design increases contact area between ball and rail enhancing lifespan.
- Improved ball recirculation path reduces noise by up to 3 dB and is suitable for high-speed use.
- K1 lubrication system provides long-term maintenance-free performance.
- Compatible with existing LH and LS range installation dimensions.
- Robust standards approvals include TÜV DIN/VDE 0580, CSA, and CE low voltage regulation.
- Applications include machine tools, robotics, semiconductor productions, CT scanners, and automation systems.
- Compact carriage design optimizes space without sacrificing load capacity.
Product Description
NSK NAH15EMCE01KCZ guide block from the COMBISTOP 38 Series provides a dynamic load capacity of 11300 N with precise carriage dimensions of 55mm length and 47mm width, ideal for high precision linear motion guidance in industrial machinery.
This guide block incorporates advanced design improvements including a new groove design that doubles the lifespan by increasing contact area and distributing load to reduce surface pressure. Noise levels are minimized by up to 3 dB due to a redesigned ball recirculation path, making it suitable for high-speed applications.
The compact linear carriage maintains compatibility with previous LH and LS series installation dimensions, simplifying upgrades and replacements. The NSK K1 lubrication system used blends 70% mineral oil with 30% polyolefin resin, enabling long-term maintenance-free operation and enhancing reliability.
Certified to rigorous standards including TÜV approval to DIN/VDE 0580, CSA certification, and CE low voltage regulation compliance, this guide block ensures high safety and quality standards for industrial installations.
Typical applications span across machine tools, robotics, semiconductor manufacturing lines, medical CT scanners, measuring instruments, automation equipment, and train platform doors, evidencing its versatility and robust performance in demanding environments.
The COMBISTOP 38 Series offers enhanced load capacity and durability. The new groove design increases service life significantly. The ball recirculation system reduces operational noise. K1 lubrication system provides efficient, long-lasting lubrication.
Compatibility with previous series simplifies component integration. Certified to international safety and quality standards. Suitable for a broad range of industrial applications. Explore our extensive range of Linear Guide Blocks and NSK products on EnvMart for reliable and high-performance industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load capacity of this guide block is 11300 N.
The carriage length is 55 mm and the carriage width is 47 mm.
It is certified to TÜV standards to DIN/VDE 0580, CSA, and CE low voltage regulation.
The new groove design increases the contact area between the ball and rail, enhancing the lifespan of the guide block.
It features the NSK K1 lubrication system, which blends 70% mineral oil with 30% polyolefin resin for long-term maintenance-free performance.
It is suitable for applications including machine tools, robotics, semiconductor production, CT scanners, and automation systems.
The static load rating is 20700 N.
Yes, it is compatible with existing LH and LS range installation dimensions, facilitating upgrades and replacements.
The redesigned ball recirculation path reduces noise levels by up to 3 dB and enhances suitability for high-speed applications.
The country of origin for this guide block is India.
The compact carriage design optimizes space without sacrificing load capacity, making it efficient for various installations.
Key features include enhanced load capacity, a new groove design for increased service life, and a K1 lubrication system for efficient operation.
