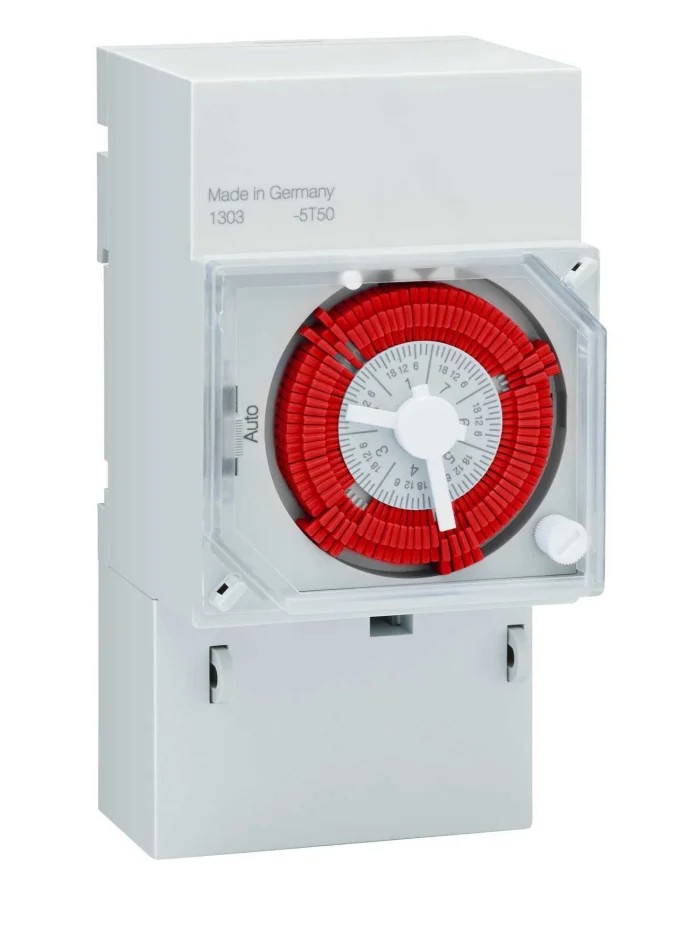

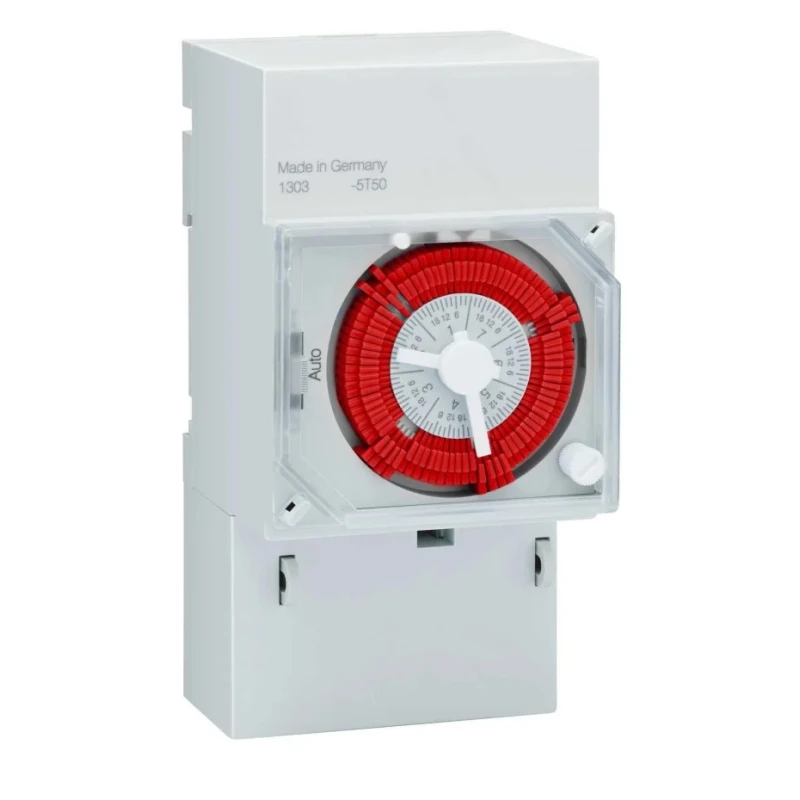

Muller Analogue VS DIN Rail Time Switch 230V 50-60HZ VS 34.18 230V 50-60HZ

The Muller VS 34.18 230V 50-60HZ Analogue DIN Rail Time Switch is a precision time control device designed for industrial automation and process control applications. Operating at a maximum supply voltage of 230V with a frequency range of 50-60Hz, it offers reliable performance for scheduling and automating equipment operations.

This time switch is built for easy installation on DIN rails or walls, featuring a slim and compact format with a height of 105mm and a depth of 60mm. The analogue clock hands provide a clear 24-hour time display, facilitating effortless programming with captive setting keys for daily or weekly schedules.

The device features a single channel and a CO (changeover) contact configuration with screw terminals to ensure secure electrical connections. Additionally, it includes a manual override switch allowing Permanent OFF, Automatic, or Permanent ON modes for operational flexibility.

Battery backup ensures continuous operation with a battery life of approximately 100 hours, preventing program loss during power interruptions. The Muller VS 34.18 time switch conforms to stringent quality and safety standards including RoHS, ISO 15693, DIN EN 60730-1, and DIN EN 60730-2-7.

With IP20 protection rating, the switch is protected against solid objects over 12mm but is intended for indoor use. Its slim 52.5mm profile helps save panel space and simplifies integration into electrical enclosures.

Suitable for DIN rail and wall mounting installation. Analogue 24-hour timer with easy-to-read clock hands display. Manual override switch with Permanent OFF, Automatic, and Permanent ON modes. Single channel with CO contact configuration and screw terminal type.

Robust design with IP20 protection rating. Compact slim format with height 105mm and depth 60mm for easy integration. Battery life up to 100 hours ensures reliable power reserve. Conforms to RoHS, ISO 15693, DIN EN 60730-1, and DIN EN 60730-2-7 standards.

Ideal for industrial automation, process control, and electrical timing applications.

This time switch is suitable for various applications in industrial automation, manufacturing, HVAC control systems, building management, and other commercial electrical timing setups. It provides consistent and accurate time-based switching to optimize operational efficiency and system reliability.
