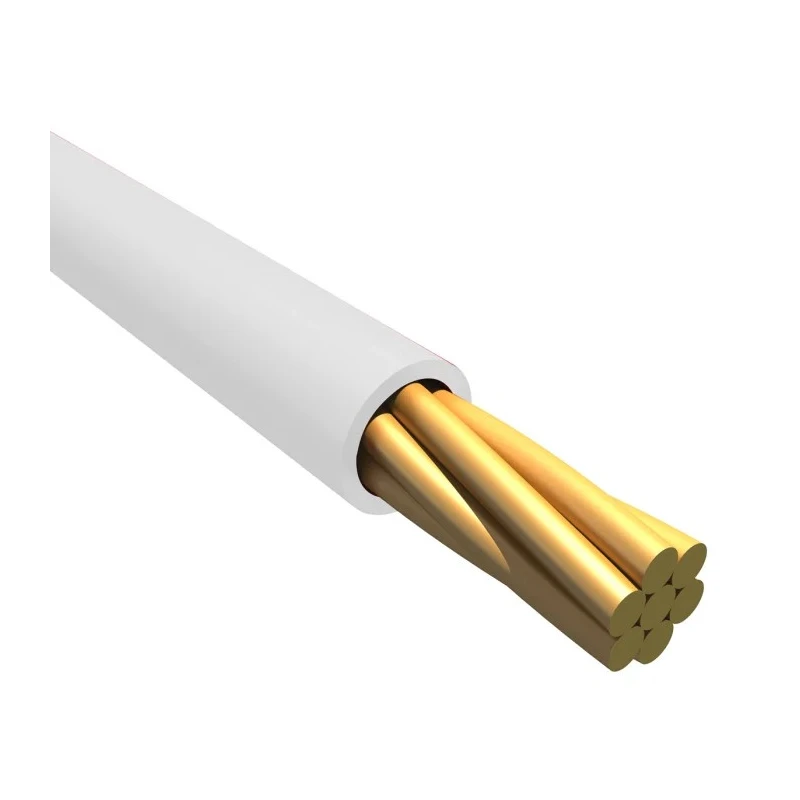

Alpha Wire Hookup Wire PVC Series White 3.3 mm² 12 AWG 65/0.25 mm Strands 30 m Polyvinyl 1560 WH005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Alpha Wire |
| Temperature range | -40°C to +80°C |
| CROSS SECTIONAL AREA | 3.3mm² |
| Model | 1560 WH005 |
| Cable Length | 30m |
| Series | Hookup Wire PVC |
| Outside diameter | 3.16mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Copper |
| Sub Type | 1560 Hookup Wire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Wire size | 12 AWG |
| Standards/Approvals | Military MIL-W-76B TYPE MW |
| Jacket Colour | White |
| American Wire Gauge | 12AWG |
| Number of Strands | 65 |
| Core Strands | 65 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 65/30 AWG |
| Insulation Colour | White |
| Mil-spec compliance | MIL-W-76 B Type MW |
Key Features
- Rated for 1000 V maximum voltage and operates from -40°C to 80°C.
- Constructed with stranded copper conductor of 65 strands at 0.25 mm diameter each for flexibility.
- Complies with Military MIL-W-76B Type MW standard for enhanced durability.
- PVC insulation offers excellent flame resistance and abrasion protection.
- Colour-coded for easy circuit identification in control cabinets and machinery.
- Suitable for demanding environments including military, industrial, and automation systems.
- Designed for easy handling, stripping, and termination due to low-fray construction.
- The 30-meter reel length supports efficient installation in various electrical assemblies.
Product Description
Alpha Wire 1560 WH005 Hookup Wire PVC Series is a premium grade 3.3 mm² (12 AWG) hook-up wire featuring a stranded copper conductor composed of 65 strands each 0.25 mm in diameter. This wire is insulated with durable white polyvinyl chloride (PVC), suitable for operating voltages up to 1000 V. It is engineered to withstand a wide temperature range from -40°C to +80°C, making it an excellent choice for applications requiring reliable performance under harsh conditions.
This wire meets the military standard MIL-W-76B Type MW, ensuring it adheres to rigorous quality and durability requirements for military and industrial use. The PVC insulation provides strong abrasion resistance and flame retardancy, ensuring safety and longevity in electrical systems.
The white colour of the insulation aids in circuit identification and organization, greatly benefiting installations in control cabinets, machine tools on factory floors, transformers, and switchboards. It also suits off-road and high-temperature industrial environments.
Alpha Wire’s 1560 WH005 series is designed for easy wiring applications where handling and termination efficiency are paramount. The stranded copper conductor and uniform insulation minimize fraying and simplify stripping, making it an ideal solution for electronics manufacturing, automation, and telecommunications.
Rated voltage: 1000 V. Temperature rating: -40°C to +80°C. Conductor material: copper (65 strands of 0.25 mm each). Insulation: polyvinyl chloride (PVC), white colour. Wire length: 30 meters. Complies with MIL-W-76B Type MW military specification.
Applications include military, industrial automation, control cabinets, and transformers.
For users seeking reliable, high-performance hook-up wire for demanding electronic and military applications, the Alpha Wire 1560 WH005 offers a trusted solution built to military-grade standards with quality PVC insulation and superior conductor flexibility.
Explore further wires and cables in our Electronics & Electricals category for diverse industrial and commercial needs.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This hookup wire is rated for a maximum voltage of 1000 V.
It operates within a temperature range of -40°C to +80°C.
The conductor material is copper, consisting of 65 strands each measuring 0.25 mm in diameter.
The wire comes in a length of 30 meters.
It is insulated with polyvinyl chloride (PVC), which provides flame resistance and abrasion protection.
Yes, it complies with the Military MIL-W-76B Type MW standard for enhanced durability.
The outside diameter of this wire is 3.16 mm.
The conductor consists of 65 strands.
This wire is suitable for military, industrial automation, control cabinets, and transformers.
The insulation of this wire is white, which aids in circuit identification.
The cross-sectional area of this wire is 3.3 mm², equivalent to 12 AWG.
The low-fray construction simplifies handling, stripping, and termination, making it user-friendly.
