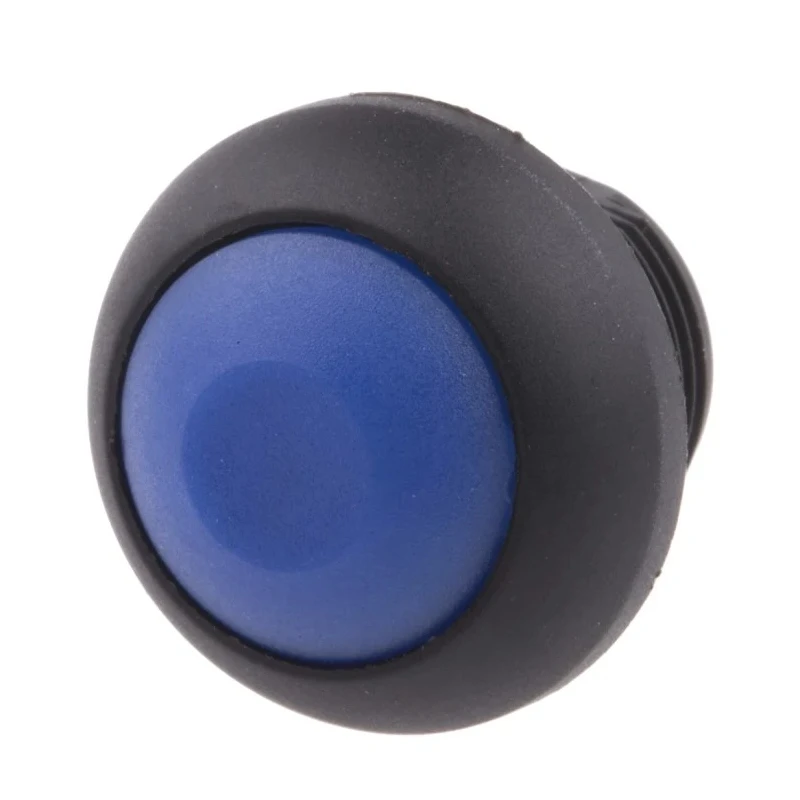

RS PRO Miniature Momentary Push Button Switch, PCB Mount, Blue LED, SPST, 13.6 mm Cutout, IP67, 50 V dc, 32 V ac 820-7606

The RS PRO 820-7606 is a high-quality miniature push button switch designed for momentary operation, suitable for PCB mounting with a 13.6 mm cutout size. Manufactured with precision, it features a blue LED for indication and utilizes a SPST contact configuration for single-pole single-throw switching.

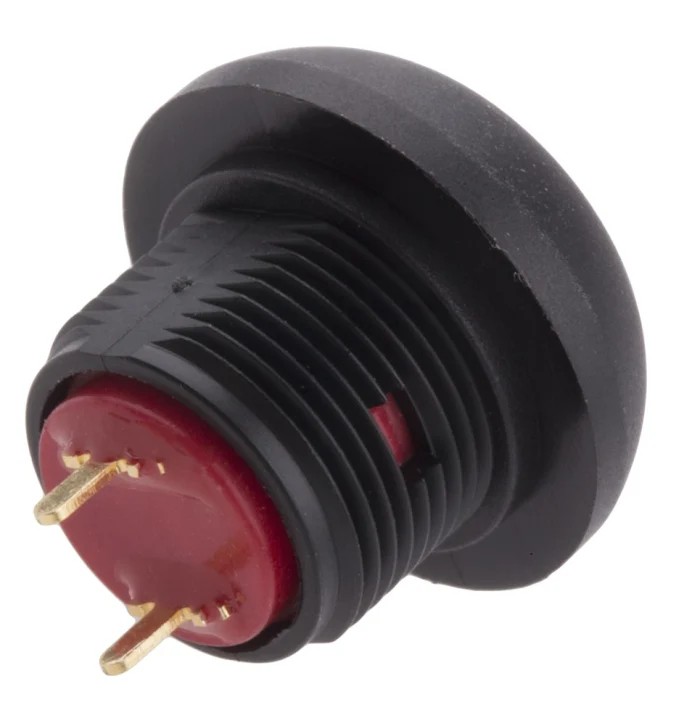

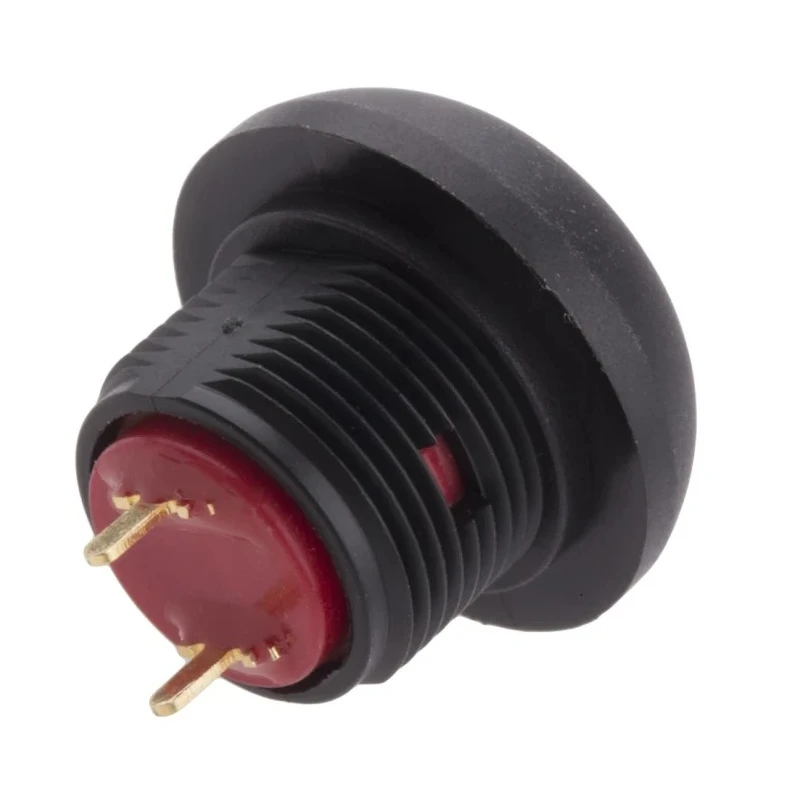

Constructed from durable Polyamide 6/6 polymer with gold-over-silver plated contacts, this switch ensures excellent electrical performance and longevity, with a mechanical life rated at one million cycles. The mount type is via PCB pins which provide secure and reliable installation on circuit boards.

Operating with a contact voltage rating of 50 V dc or 32 V ac and a contact current rating of 400 mA, this switch suits low-voltage electronic applications. Its IP67 rating certifies protection against dust ingress and temporary immersion in water, making it suitable for industrial, laboratory, and telecommunications environments.

The actuator style is a cap type, with operating forces ranging from 2 N to 5 N, contact bounce is minimal at 10 ms, which improves switch response quality. Soldering tolerance reaches up to 350°C for 5 seconds, ensuring compatibility with standard PCB soldering processes.

Commonly used in test equipment, networking devices, telecommunications, and handheld appliances, this switch is an optimal choice for engineers seeking efficient and robust switching solutions.

This switch features a cap actuator style made from high-quality Polyamide 6/6 for durability. It supports a contact voltage of 50 V dc and 32 V ac with a maximum contact current of 400 mA. The switch operation is momentary with a mechanical life of 1,000,000 cycles ensuring long-term reliability.

The device includes a blue LED color and is mounted via PCB pins for secure installation. Rated IP67, this switch offers protection against dust and immersion in water, ideal for harsh environments. It tolerates a maximum operating temperature of 85°C and soldering up to 350°C for 5 seconds.

Typical applications include test equipment, telecommunications, networking, and handheld appliances. RS PRO offers rigorous testing and quality assurance for all products under their brand, ensuring reliable performance in industrial and commercial applications.
