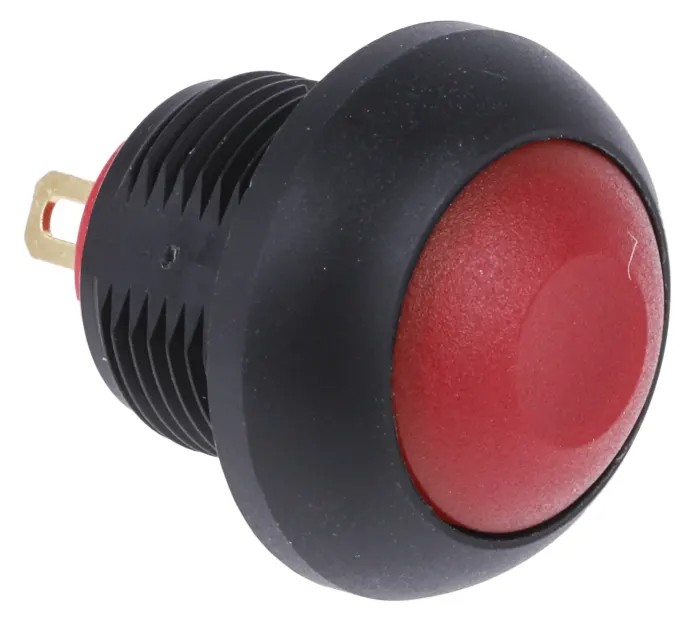

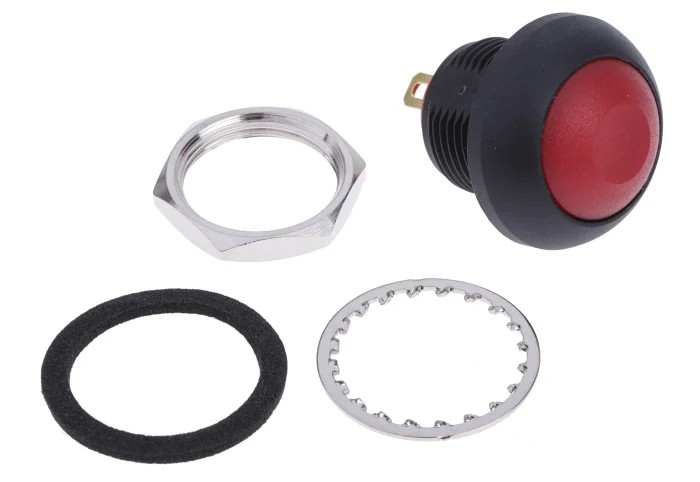

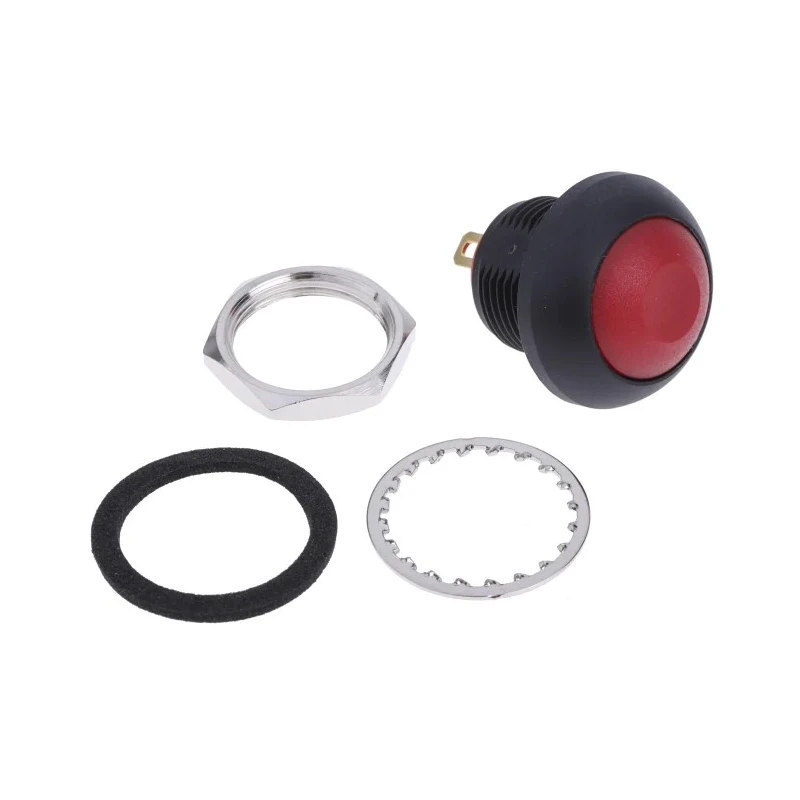

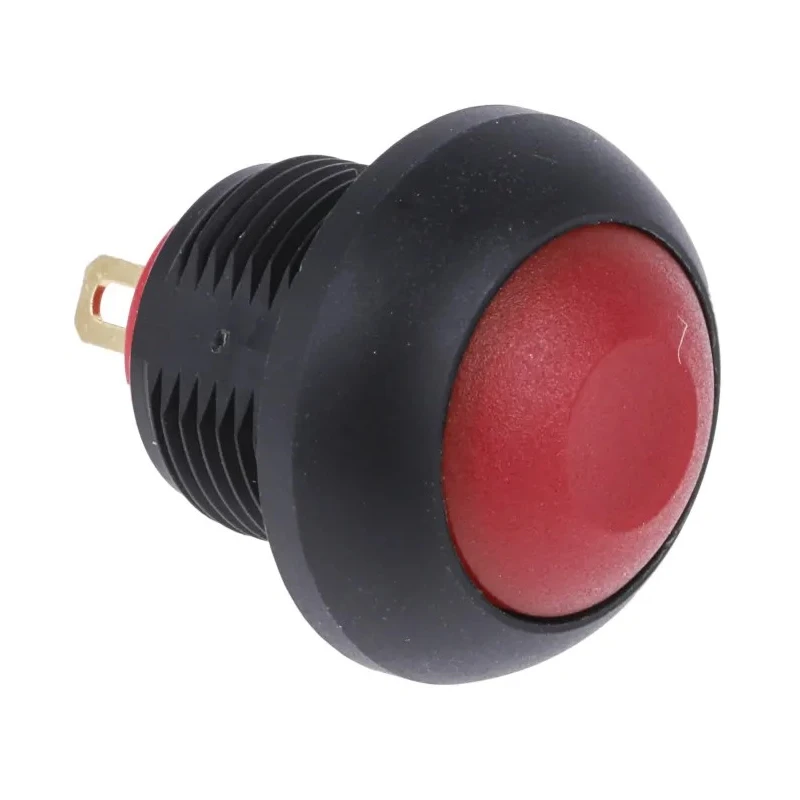

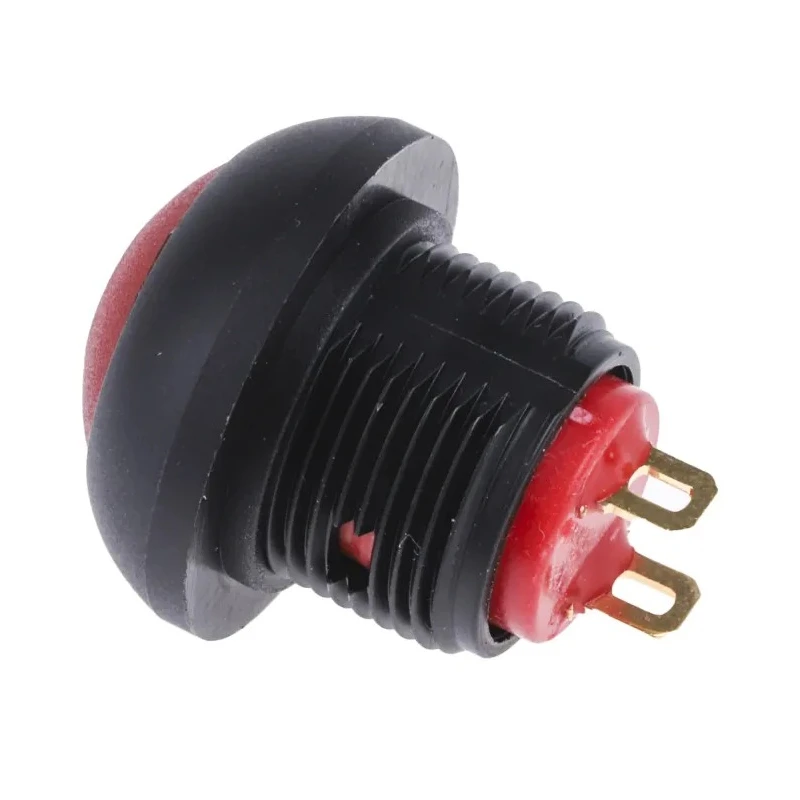

RS PRO Miniature Push Button Switch, On-Off, Panel Mount, Red LED, IP67, 50 V dc, 13.6 mm Cutout, SPST Configuration 820-7587

RS PRO 820-7587 miniature push button switch is designed for reliable on-off panel mount operations with a compact 13.6 mm cutout. The switch features a red LED actuator made from durable polyamide 6/6 material, combining robustness with visual feedback in control systems. It incorporates a Single Pole Single Throw (SPST) contact configuration suitable for simple circuit operations requiring momentary push button control with on-off capability.

This push button switch is built to meet IP67 standards, ensuring full protection against dust ingress and water immersion, making it suitable for industrial, laboratory, and commercial applications with exposure to harsh environmental conditions.

Operating across a voltage of 50 V DC and supporting a contact current of 400 mA, it is suitable for low-power circuit applications. The mechanical design allows an operating force between 2N and 5N and features a contact bounce time of 10 ms to enhance switching performance. The switch supports a wide temperature range from -30°C to 85°C, ensuring dependable operation in diverse climates.

The product is RoHS compliant and lead-free, reflecting adherence to environmental and safety standards. Its mechanical life is rated at one million cycles, underlining its durability for long-term industrial use. The solder lug terminal type enables reliable and stable electrical connections during assembly.

This miniature push button switch is ideal for applications such as test equipment, telecommunications systems, networking devices, and handheld appliances where compact size and dependable switching are critical.

Features a red LED illumination for visual status indication. Single Pole Single Throw (SPST) contact configuration for simple on-off control. Panel mount design with 13.6 mm cutout size for easy integration. High-quality polyamide 6/6 actuator and gold over silver plated contacts ensure longevity.

Rated for 50 V DC voltage with a contact current of 400 mA. IP67 rated for dust tightness and water immersion protection. Wide operating temperature range from -30°C to 85°C. Mechanical life of 1,000,000 cycles for extended durability.

Solder lug terminals for secure and reliable connections. Ideal for industrial, laboratory, telecommunications, networking, and handheld applications. Explore more RS PRO switches and components at EnvMart to find reliable solutions for your electronic and electrical projects.
