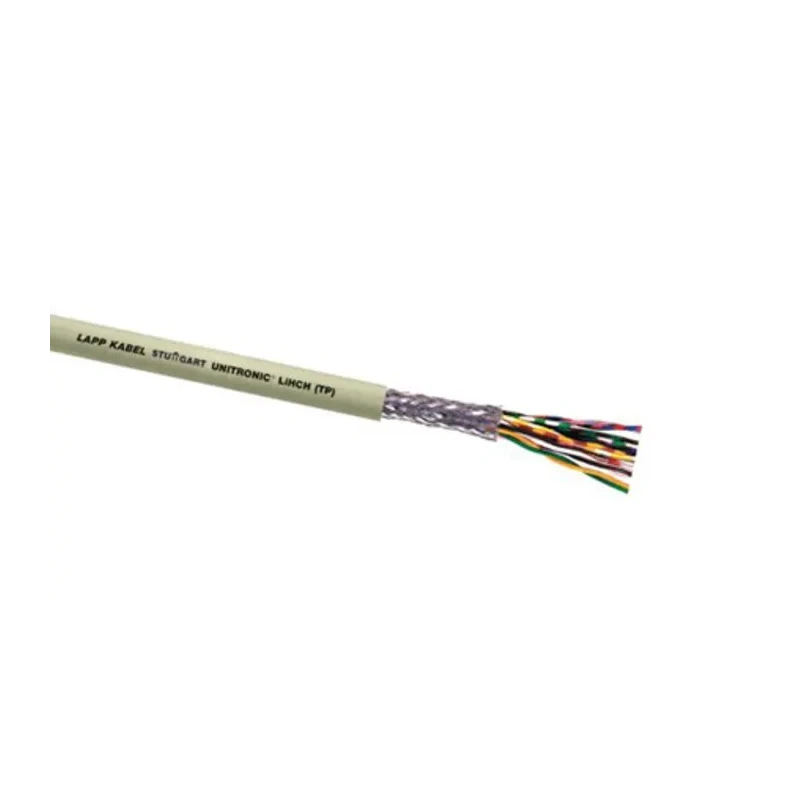

Lapp Unitronic LiHCH Series Data Cable 12 Pairs 0.5 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen 0038612

Free Delivery in India | Lowest Global Shipping Charges

Lapp Unitronic LiHCH Series Data Cable 12 Pairs 0.5 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen 0038612

Name: Lapp Unitronic LiHCH Series Data Cable 12 Pairs 0.5 mm² 50 m Pebble Grey Sheath Low Smoke Zero Halogen 0038612
Brand: Lapp
SKU: 315612
Price: 1273.81 USD
Availability: InStock



Category Data Cable Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Lapp
CROSS SECTIONAL AREA	0.5 mm²
Model	0038612
Cable Length	50m
Series	Unitronic LiHCH
Outside diameter	15.1mm
Maximum Operating Temperature	80°C
Conductor Material	Bare Copper
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen
Standards/Approvals	EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances)
Jacket Colour	Pebble Grey
Screened/Unscreened	Screened
Conductor Type	Stranded
Number of Pairs	12
• Operating temperature range of with occasional flexing	-5°C to +70°C
• Operating temperature range in fixed installations	-30°C to +80°C

Key Features

The cable features low capacitance polyethylene-based insulation for improved data transmission.
An overall braided shield reduces electromagnetic interference effectively.
The cable jacket is low smoke zero halogen (LSZH) for enhanced safety in confined spaces.
Operates reliably within a temperature range of -40°C to 80°C, suitable for fixed installation and occasional flexing conditions.
Flame-retardant according to IEC 60332-1-2 ensures fire safety compliance.
The pebble grey sheath offers durable environmental protection and identification.
Constructed with fine-wire bare copper strands to maintain conductivity and flexibility.
Ideal for measurement, control, safety-related, computer, and instrumentation systems in industrial and public environments.

Product Description

Lapp 0038612 Unitronic LiHCH Series Data Cable is a high-quality screened twisted pair data cable designed for low frequency data transmission applications. This cable comprises 12 pairs of stranded bare copper conductors with a 0.5 mm² cross-sectional area, encased in a pebble grey low smoke zero halogen sheath. The cable is engineered to minimize electrical interference and enhance safety in environments where reduced smoke and halogen emissions are crucial.

The cable includes polyolefin-based insulation that provides low capacitance, enhancing signal integrity over long distances. The overall braided shield acts as a screen to reduce electromagnetic interference, making it highly effective in industrial installations and sensitive measurement systems.

Compliant with flame retardant standards IEC 60332-1-2 and bearing the EU Low Voltage Directive (2014/35/EU) and RoHS (2011/65/EU) restrictions, this data cable meets stringent safety and environmental requirements. It operates within an ambient temperature range from -40°C up to +80°C, supporting both occasional flexing and fixed installations, thus suitable for diverse industrial and commercial applications.

Applications include data processing, measurement and control engineering, safety-related systems, computer networks, instrumentation, and general office equipment cabling, especially where fire safety and low smoke emissions are critical such as public buildings and transport systems.

The cable’s pebble grey sheath provides durability and ease of identification within cable bundles. Lapp's Unitronic LiHCH cables are supported with compatible accessories like EMC cable glands suitable for various sizes to maintain system grounding and protection.

Low capacitance due to polyolefin-based insulation. Overall braided shielding minimizes electrical interference. Flame retardant according to IEC 60332-1-2 standard. Low smoke zero halogen (LSZH) sheath enhances safety in case of fire.

Operating temperature range from -5°C to +70°C with occasional flexing and -30°C to +80°C for fixed installations. Voltage rating of 250V suitable for low voltage signal transmission. Constructed with stranded bare copper conductors for excellent conductivity.

Complies with EU Low Voltage Directive and RoHS regulations. Ideal for industrial, measurement, control, data processing, and public environment applications. Manufactured in Germany ensuring high quality standards. Explore more from the Lapp range of industrial and Data Cables at EnvMart for your electrical and automation needs.
