Lapp Unitronic LiHCH Series Low Smoke Zero Halogen Screened Data Cable 3 Pairs 0.5 mm² 50 m Pebble Grey Sheath 0038603

Free Delivery in India | Lowest Global Shipping Charges

Lapp Unitronic LiHCH Series Low Smoke Zero Halogen Screened Data Cable 3 Pairs 0.5 mm² 50 m Pebble Grey Sheath 0038603

Name: Lapp Unitronic LiHCH Series Low Smoke Zero Halogen Screened Data Cable 3 Pairs 0.5 mm² 50 m Pebble Grey Sheath 0038603
Brand: Lapp
SKU: 315609
Price: 321.03 USD
Availability: InStock



Category Data Cable Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	Lapp
CROSS SECTIONAL AREA	0.5 mm²
Model	0038603
Cable Length	50m
Series	Unitronic LiHCH
Outside diameter	8.9mm
Maximum Operating Temperature	80°C
Conductor Material	Bare Copper
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen
Standards/Approvals	EU-Directive 2014/35/EU (Low Voltage Directive) and to EU-Directive 2011/65/EU (RoHS, Restriction of the use of certain hazardous substances)
Jacket Colour	Pebble Grey
Screened/Unscreened	Screened
Conductor Type	Stranded
Number of Pairs	3
• Operating temperature range of with occasional flexing	-5°C to +70°C
• Operating temperature range in fixed installations	-30°C to +80°C

Key Features

The cable has a pebble grey sheath made from low smoke zero halogen material.
It features stranded bare copper conductors with polyolefin-based insulation to ensure low capacitance.
The overall braided shielding minimizes electrical interference providing enhanced signal integrity.
Designed for operating temperatures from -40°C minimum up to 80°C maximum, with specific ranges for flexing and fixed installation.
The cable meets EU Low Voltage Directive and RoHS standards, with flame retardant characteristics according to IEC 60332-1-2.
Ideal for data processing, measurement and control engineering, safety, and instrumentation systems.
Suitable for use in public buildings and transport systems where safety and low smoke emissions are critical.

Product Description

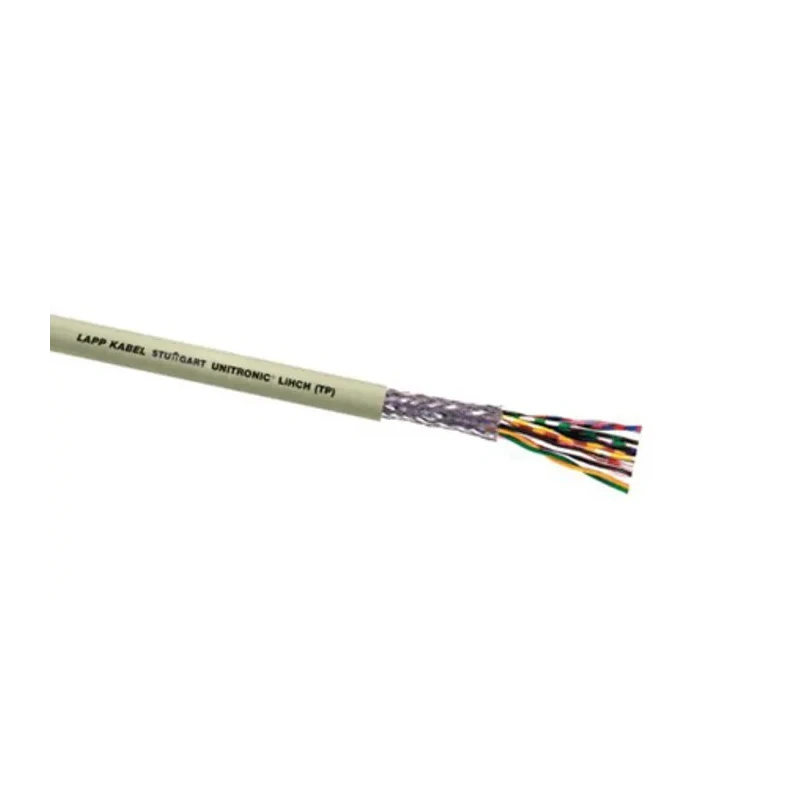

Lapp 0038603 Unitronic LiHCH Series data cable is a screened twisted pair cable designed for low frequency data transmission applications. It has 3 pairs of stranded bare copper conductors, each with a cross-sectional area of 0.5 mm² and an overall cable length of 50 meters. The cable is sheathed in a durable pebble grey low smoke zero halogen (LSZH) material, ensuring minimal smoke and halogen emissions in case of fire, making it especially suitable for environments prioritizing public safety and protection of sensitive equipment.

The cable features polyolefin-based insulation that provides low capacitance, enhancing signal quality. The overall braided shield further reduces electrical interference, ensuring stable and reliable data transmission. This cable complies with European Low Voltage Directive 2014/35/EU and RoHS Directive 2011/65/EU, and its flame retardant properties are certified to IEC 60332-1-2 standards.

Its operating temperature ranges from -40°C minimum to a maximum of 80°C, with specific ranges for occasional flexing (-5°C to +70°C) and fixed installations (-30°C to +80°C). These criteria make it usable in demanding industrial, commercial, and automation environments.

Lapp’s Unitronic LiHCH cable is ideal for applications in data processing, measurement and control engineering, safety-related and instrumentation systems, as well as office and computer systems. Its low smoke zero halogen construction makes it an excellent choice for public buildings, transport systems, and other areas with high people density where fire safety is paramount.

Accessories compatible with Unitronic cables include a range of cable glands for low resistance screen contact, available in sizes M16, M20, M25, M32, M40, and M50, enabling secure and reliable cable entries.

The cable offers a pebble grey low smoke zero halogen sheath for enhanced fire safety. It contains 3 pairs of stranded bare copper conductors with polyolefin insulation. Designed to minimize electrical interference with an overall braided shield.

Complies with EU Low Voltage and RoHS directives and flame retardant IEC standards. Operating temperature ranges enable use in both flexing and fixed installations. Suitable for industrial, commercial, automation, and safety system applications.
