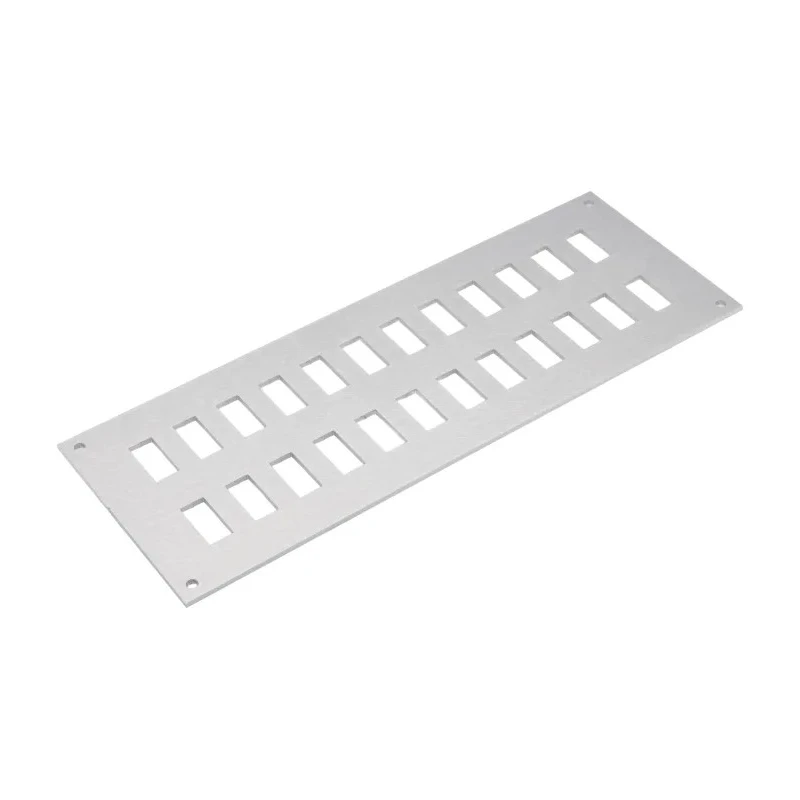

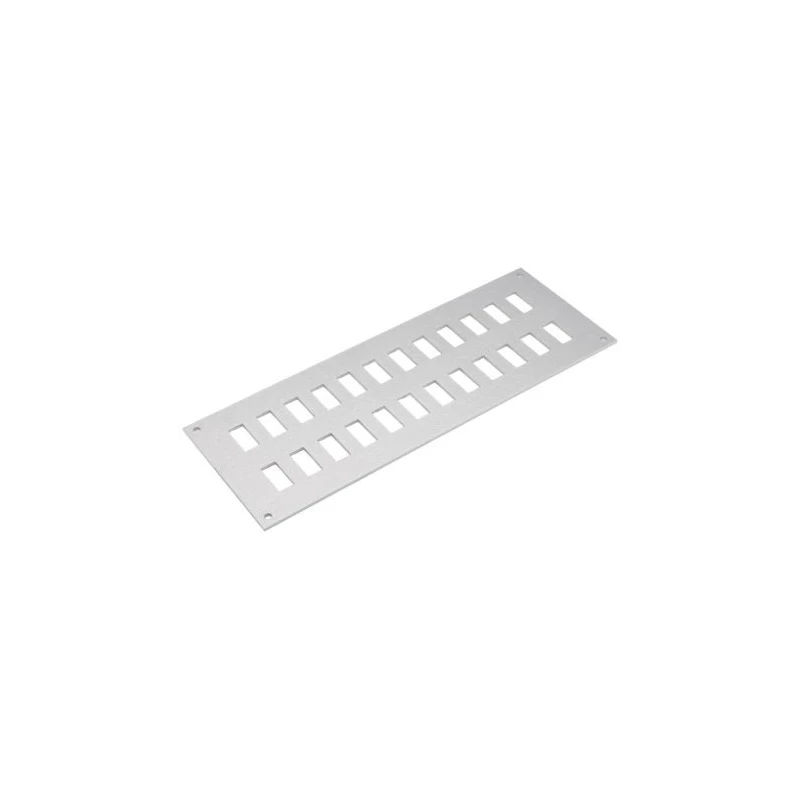

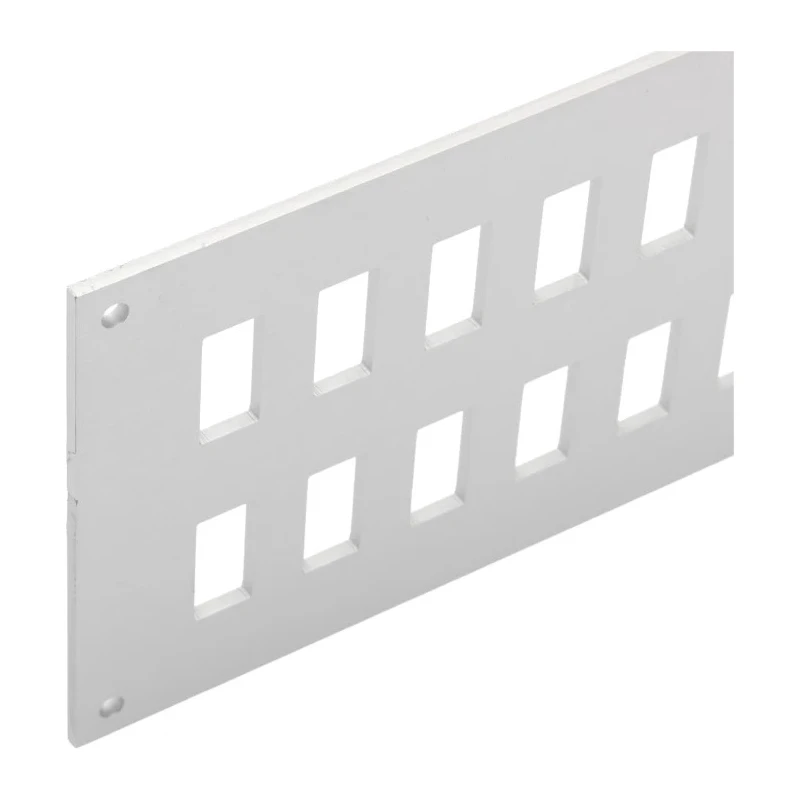

RS PRO Thermocouple Panel Accessory for Use with Up To 24 Fascia Sockets RoHS Standard 762-1168

RS PRO 762-1168 Thermocouple Panel accessory is engineered for compatibility with up to 24 fascia sockets, adhering strictly to RoHS environmental standards. This panel accessory features anodised aluminium faceplates known for their strength and resistance to corrosion, making them suitable for industrial environments.

The panel is available in two height dimensions: standard height of 66mm and miniature height of 45mm, accommodating various installation requirements. Lengths of the panels are calculated with precision using standard formulae based on the number of ways: (19 x n) + 31mm for standard and (15 x n) + 25mm for miniature sizes, where n represents the number of ways or socket positions.

Each panel includes four fixing holes (3.25mm diameter) positioned 5mm from the edges, ensuring secure attachment and ease of installation. Miniature size panels come in configurations ranging from 2, 4, 6, 12, 16, 20 to 24 ways, with larger counts arranged in two rows for better accessibility and organization. Standard size panels are available in lower counts from 1 to 6 ways, arranged in a single row.

An etch matt and satin anodised finish enhances the panel's durability and provides a refined industrial look. The product is compatible with both standard and miniature fascia panel mounting thermocouple sockets, making it a versatile accessory for various sensor configurations.

This thermocouple panel accessory suits industrial, laboratory, and automation environments where robust and precise temperature measurement setups are required. Its modular design supports diverse configurations and provides reliable mounting options.

Constructed with anodised aluminium faceplates offering durable and corrosion-resistant performance. Available in miniature and standard height options: 45mm and 66mm respectively. Panel lengths calculated using standard formulae based on the number of ways for precise fits.

Includes four fixing holes of 3.25mm diameter positioned 5mm from each edge to ensure secure mounting. Miniature panels available in configurations from 2 to 24 ways, while standard panels are available in 1 to 6 ways. Standard panels are single row for up to 12 ways; 16, 20, and 24 way panels have two rows ensuring organized layout.

Finished with etch matt and satin anodised surfaces providing a professional appearance. Compatible with both miniature and standard fascia panel mounting thermocouple sockets. Designed for industrial and laboratory applications requiring precise temperature measurement interfaces.

Explore the comprehensive range of Sensor Accessories like this in the RS PRO category at EnvMart for reliable and high-quality industrial components.
