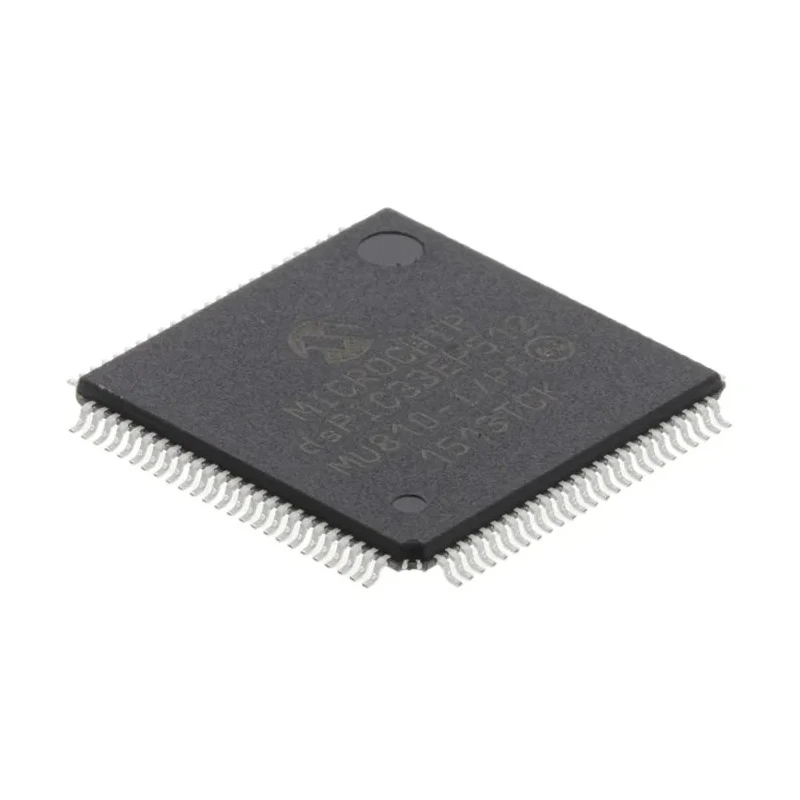

Microchip 16 bit dsPIC33EP512MU810-I/PF Microcontroller, 70 MHz, 536kB FLASH, 16bit Data Bus, 100-Pin TQFP

Microchip dsPIC33EP512MU810-I/PF is a 16 bit dsPIC33EPXXXMU810 series microcontroller delivering 70 MHz maximum clock frequency and 536kB FLASH memory capacity. Designed as a digital signal controller, it combines DSP performance with MCU simplicity, optimized for digital filter algorithms, high-speed control loops, and audio processing applications.

This microcontroller is equipped with a 16 bit data bus, 52kB RAM, and a 1 x 4 bit DAC alongside 32 channels of configurable 12/24 bit ADCs. It supports 13 programmable timers and 3 analog comparators, providing flexible peripheral interfaces.

The device comes in a 100-pin TQFP surface-mount package, measuring 14mm length, 14mm width, and 1mm height. It operates within supply voltages of 3 V to 3.6 V and temperature specifications from -40°C up to 85°C. The component meets automotive standard AEC-Q100 for enhanced reliability in vehicle electronics.

dsPIC33EP512MU810-I/PF microcontroller is suited for industrial, automotive, and embedded system applications requiring high precision and performance digital signal control with integrated ADCs, DACs, and timers.

Operates at a maximum clock frequency of 70 MHz for efficient processing. Contains 536kB FLASH program memory with 52kB RAM size. Includes 1 x 4 bit DAC and 32 channels of 12/24 bit ADCs for analog interfacing. Offers automotive grade AEC-Q100 compliance for reliability.

Equipped with 13 timers and 3 analog comparators for versatile functionality. Packaged in a 100-pin TQFP surface-mount format, measuring 14 mm x 14 mm x 1 mm. Operates within voltage range of 3 V to 3.6 V and temperature range of -40°C to 85°C.

Implements C instruction set architecture optimized for DSP tasks. Browse the Electronics and Semiconductor category for more advanced Microcontrollers and embedded solutions at EnvMart.
