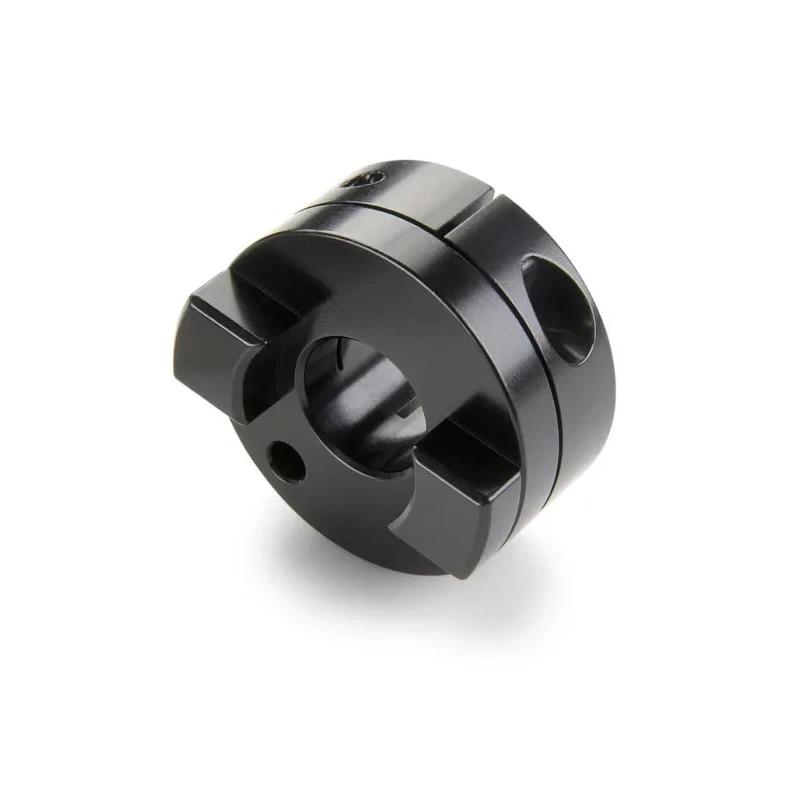

Ruland Flexible Clamp Style Coupler 16mm Bore 57.2mm Outside Diameter 28.7mm Length MOCT57-16-A
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Ruland |
| Material | Aluminium |
| Model | MOCT57-16-A |
| Maximum Speed | 4500rpm |
| Outside diameter | 57.2mm |
| Bore Diameter | 16mm |
| Bore Type | Finished with No Keyway |
| Standards/Approvals | REACH, RoHS |
| Misalignment - Angular | 0.5° |
| Misalignment - Parallel | 0.25mm |
| Misalignment - Axial | 0.2mm |
| Hub Length | 28.7mm |
| Securing | 13mm and 19mm anodised aluminium hubs are secured to the shafts with one set screw on each end. 33mm, 35mm and 41mm hubs have 2 set screws set 90° apart |
Key Features
- Clamp style Oldham coupling suitable for shafts with slight axial and angular misalignment.
- Manufactured from black anodised aluminium for high durability and lightweight performance.
- Replaceable centre torque disc made of acetal or nylon acts as a torque limiter protecting machinery.
- Supports maximum speed up to 4500 rpm for efficient power transmission.
- Finished bore without keyway allows easy installation and secure shaft connection.
- Accommodates angular misalignment up to 0.5°, parallel misalignment 0.25mm, and axial misalignment 0.2mm.
- Ideal for light industrial and motion control applications including servo and stepper motors.
- Two hubs and one torque disc are required per complete coupling assembly.
Product Description
Ruland MOCT57-16-A flexible clamp style coupler features a 16mm bore diameter, 57.2mm outside diameter, and 28.7mm hub length, making it optimized for precision mechanical power transmission. This clamp style Oldham coupling accommodates small axial and angular misalignments typically encountered in light industrial and motion control applications such as servo or stepper motor drives.
The hubs are formed from black anodised aluminium, providing a combination of strength, corrosion resistance, and lightweight design. The centre torque disc, made of acetal or nylon, acts as a torque limiter to protect the drivetrain by breaking cleanly under torque overload conditions. This design ensures extended equipment life and reliable performance.
The coupling supports a maximum rotational speed of 4500 rpm and can handle misalignments including angular up to 0.5°, parallel up to 0.25mm, and axial movement up to 0.2mm. Its finished bore without keyway allows a snug fit on shafts and ease of installation.
The clamp style securing mechanism varies by hub size; smaller hubs use one set screw while larger ones employ two set screws positioned 90 degrees apart for secure attachment. Note that the product is not supplied fully assembled; a complete assembly requires two hubs and one torque disc.
This flexible coupling is well suited for mechanical power transmission tasks in industrial manufacturing, automation, laboratory instruments, HVAC systems, and other applications requiring reliable torsional connectivity with the ability to accommodate slight shaft misalignments.
Clamp style Oldham coupling for axial and angular misalignment accommodation. Black anodised aluminium hubs offer corrosion resistance and strength. Replaceable acetal or nylon torque disc provides overload protection. Maximum speed rating of 4500 rpm.
Finished bore with no keyway for precise installation. Securing screws vary by hub size for reliable shaft fastening. Two hubs and one torque disc required per assembly. Ideal for motion control, light industrial, and automation use cases.
Browse our selection of Ruland couplings and other mechanical power transmission components at EnvMart for industrial, lab, and commercial applications.
Explore more products in our Flexible Coupler category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed rating for the Ruland MOCT57-16-A flexible clamp style coupler is 4500 rpm.
This model has a bore diameter of 16mm, an outside diameter of 57.2mm, and a hub length of 28.7mm.
It can accommodate angular misalignment up to 0.5°, parallel misalignment of 0.25mm, and axial misalignment of 0.2mm.
The hubs are made from black anodised aluminium, while the replaceable torque disc is made of either acetal or nylon.
The coupler is secured to the shafts using one set screw on each end for smaller hubs, while larger hubs utilize two set screws positioned 90 degrees apart.
The bore type is finished with no keyway, allowing for a snug fit on shafts and facilitating easy installation.
Yes, it is ideal for light industrial and motion control applications, including use with servo and stepper motors.
This model complies with REACH and RoHS standards.
The torque disc acts as a torque limiter, protecting the drivetrain by breaking cleanly under torque overload conditions.
A complete assembly requires two hubs and one torque disc.
The coupler is manufactured in the United States.
It is suitable for mechanical power transmission tasks in industrial manufacturing, automation, laboratory instruments, and HVAC systems.
