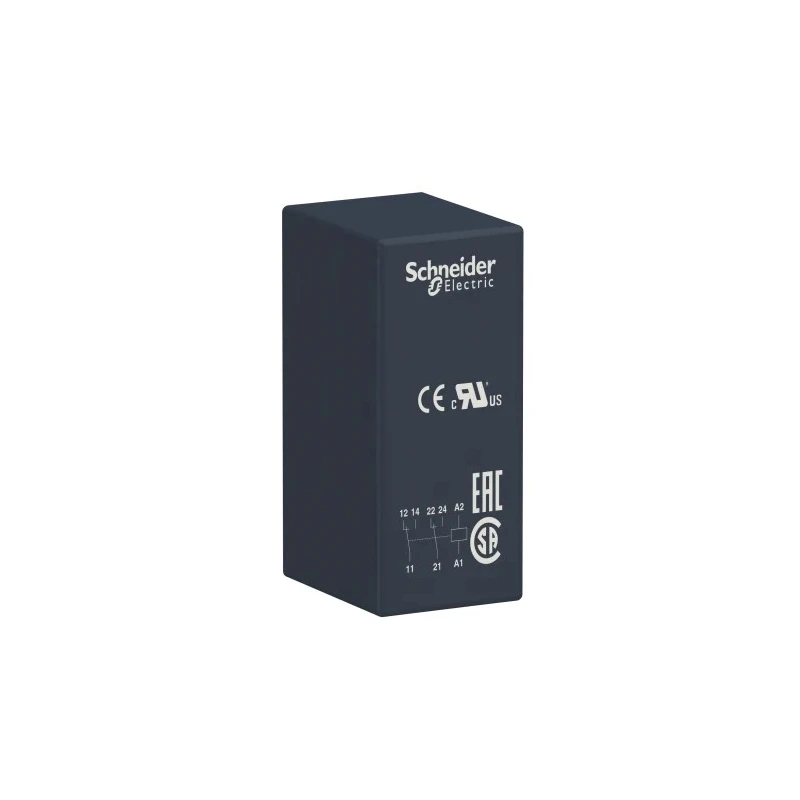

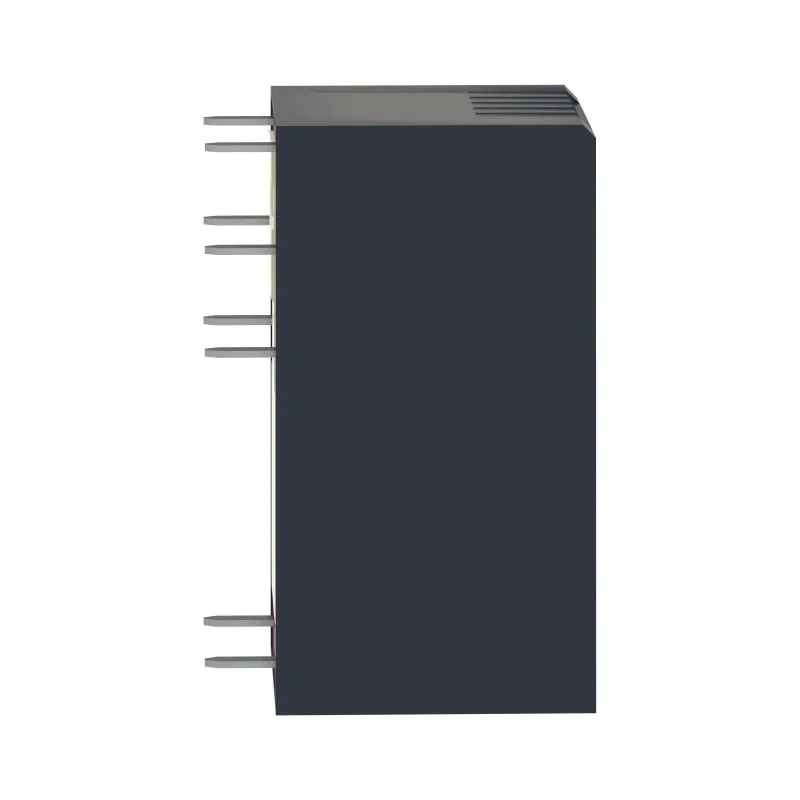

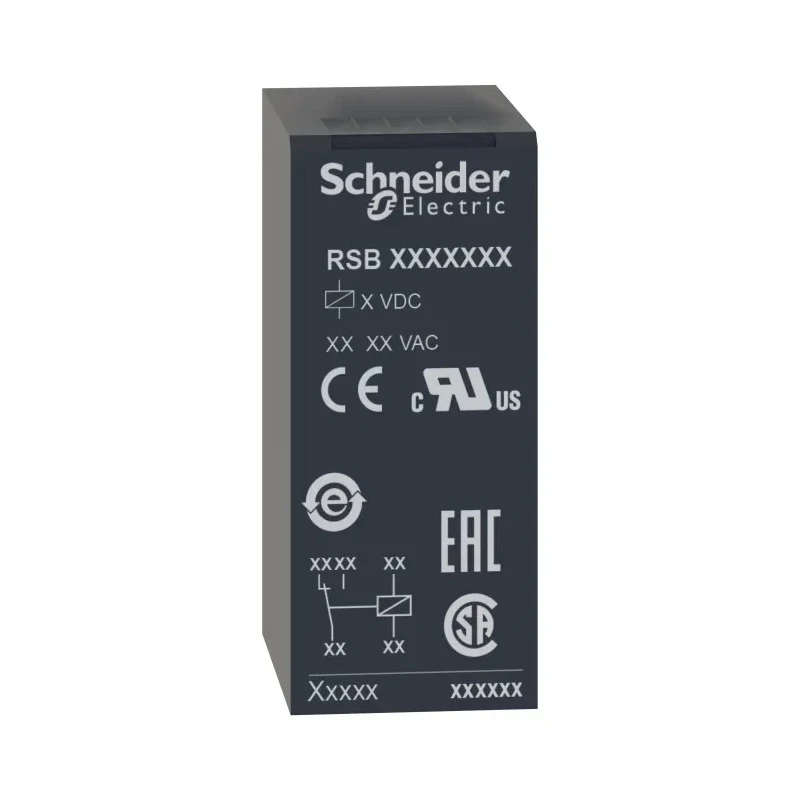

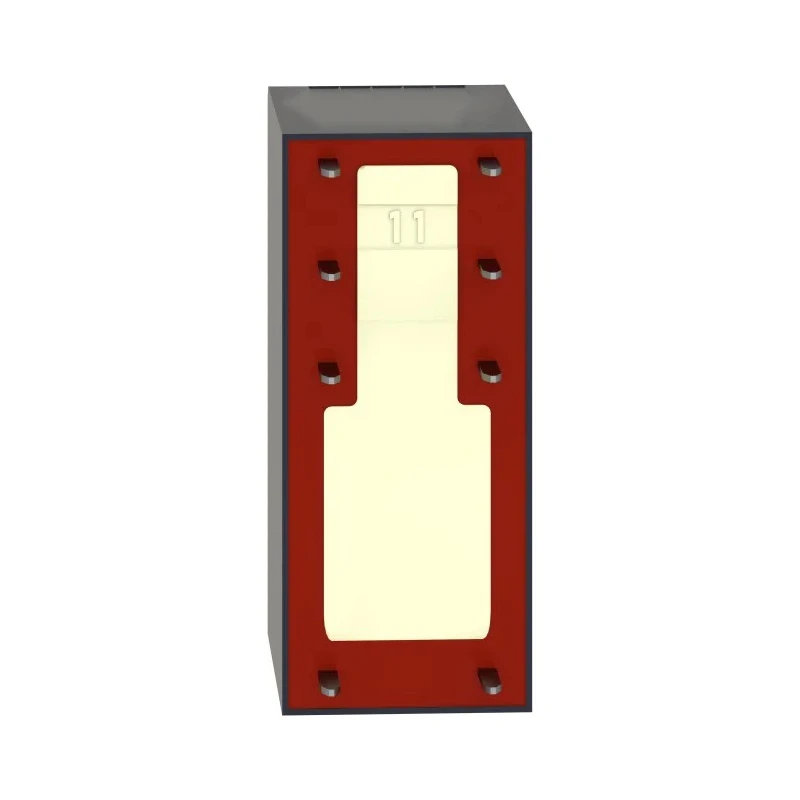

Schneider Electric PCB Power Relay 110V AC Coil 8A Switching Current DPDT RSB2A080F7

Schneider Electric RSB2A080F7 is a high-quality PCB power relay from the Harmony Relay RSB series designed for industrial and automation applications. It features a coil voltage of 110V AC and an 8A switching current with a DPDT (Double Pole Double Throw) contact configuration.

This relay’s plug-in design allows for straightforward installation and maintenance, making it ideal for compact enclosures where space efficiency is critical. The transparent cover provides a clear view of the contact status, enhancing operational visibility and maintenance diagnostics.

Constructed with durable silver alloy (Ag/Ni) contacts, the relay ensures reliable switching performance and long service life. It offers an IP40 ingress protection rating, suitable for controlled industrial environments with moderate exposure to dust and contaminants.

Operating between -40°C and 70°C, this relay complies with international standards CSA, UL, and EN, ensuring quality and safety in various industrial settings. The through-hole terminal type provides robust mechanical and electrical connections on printed circuit boards.

Schneider Electric’s focus on sustainability is evident with this relay being designed for disassembly, supporting environmentally responsible manufacturing and disposal practices. The compact dimensions (29mm length, 15.7mm height, 12.5mm width) optimize space usage in control panels and automation systems.

The plug-in relay design enables easy replacement and service. Silver alloy contacts ensure excellent conductivity and durability. Coil voltage of 110V AC with an 8A switching capacity caters to moderate load control. IP40 rated for protection against solid particles and non-protected against liquids.

Suitable for industrial, manufacturing, electrical automation, and control panel applications. Operating temperature range ensures reliable performance in various climates. Built to international standards for assured safety and reliability.

Compact footprint aids in reducing enclosure sizes and simplifies machine design. Designed for disassembly to promote sustainability goals.

This Schneider Electric RSB2A080F7 PCB Power Relay is a dependable component for electrical control systems requiring reliable power relay switching with ease of maintenance. Browse EnvMart for related Schneider Electric products and Harmony RSB series Power Relays to complete your project requirements.
