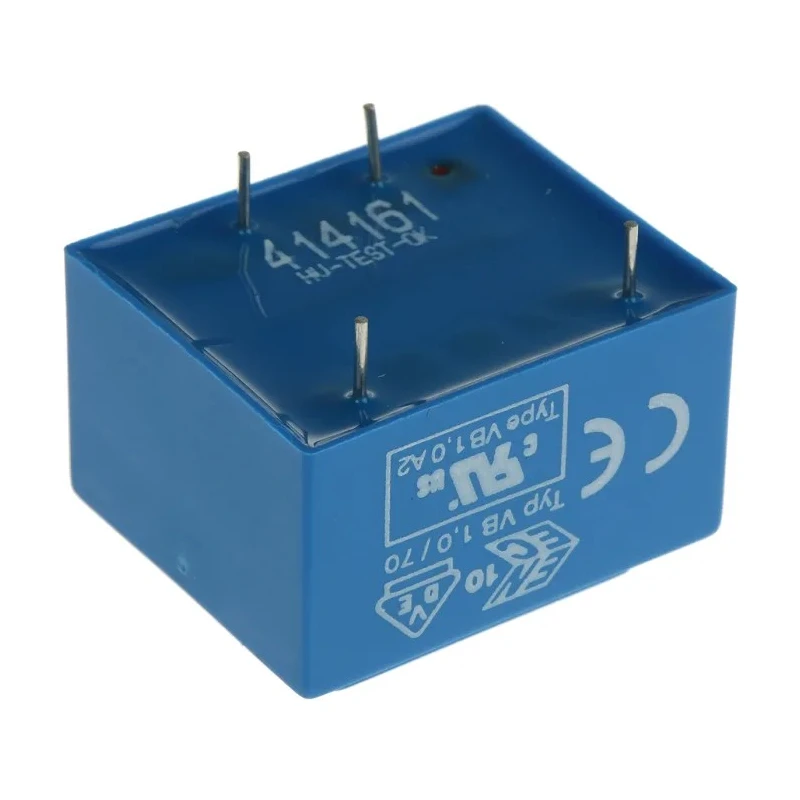

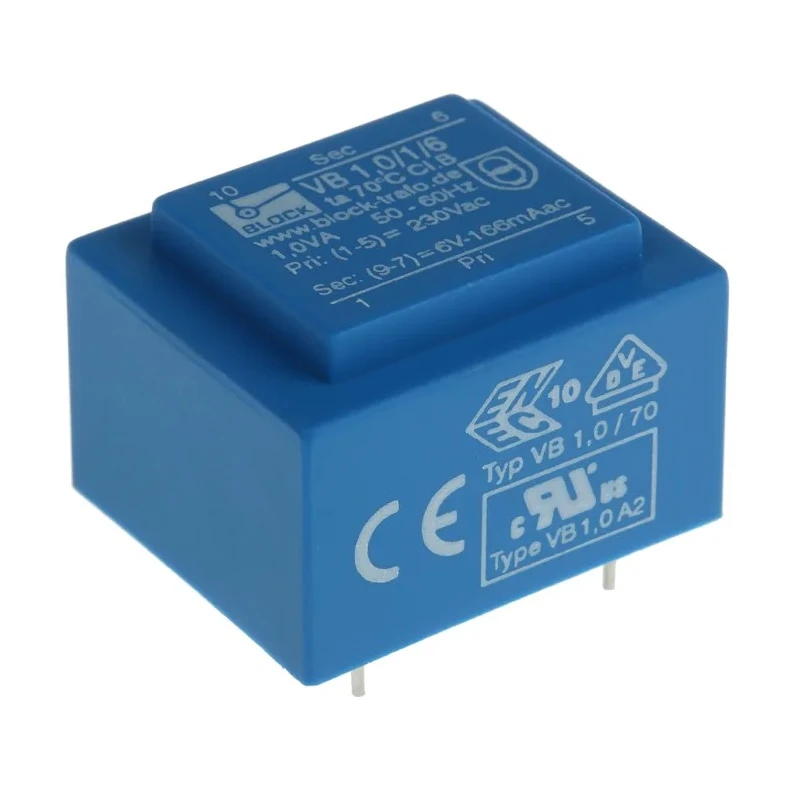

Block PCB Transformer 6 V ac 1 Output Pin, 230 V ac Primary, 1 VA, Pin Mount, VB 1,0/1/6

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 6 V ac 1 Output Pin, 230 V ac Primary, 1 VA, Pin Mount, VB 1,0/1/6

Name: Block PCB Transformer 6 V ac 1 Output Pin, 230 V ac Primary, 1 VA, Pin Mount, VB 1,0/1/6
Brand: Block
SKU: 314157
Price: 12.22 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	55%

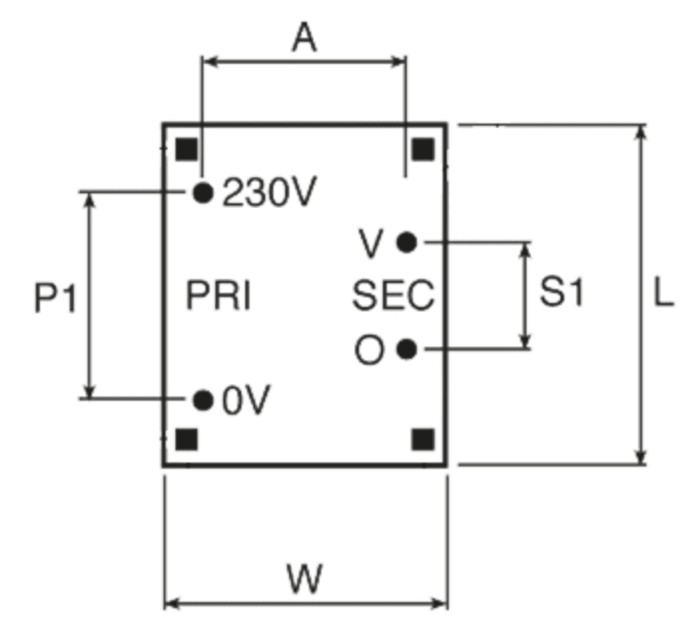

Length	32.3mm
Model	VB 1,0/1/6
Depth	21.8mm
Gross Weight	70g
Width	27.3mm
Mount Type	Pin
Series	VB 1.0/1/6
Maximum Operating Temperature	70°C
Number of outputs	1
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	6 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Designed for PCB mounting with pin type mount.
High isolation voltage of 5000 volts for safety.
Compact dimensions of 32.3 mm length, 27.3 mm width, and 21.8 mm depth.
Efficiency of 55% ensuring low power losses.
Maximum operating temperature of 70 degrees Celsius.
Operates within frequency range of 50 to 60 Hz.
Certified to VDE 0570 part 2-1, IEC 61558-2-6, ENEC 10, and UL standards.
Constructed with vacuum epoxy resin molding for durability and UL94-V0 rating.

Product Description

Block VB 1,0/1/6 PCB Transformer is a single output pin transformer designed for mounting on printed circuit boards. It provides a secondary voltage of 6 V ac from a primary input of 230 V ac with a power rating of 1 VA.

This transformer features robust construction with vacuum epoxy resin molding achieving UL94-V0 flame retardant rating, ensuring safety and durability in electronic applications. The bobbins are reinforced with double section glass fiber reinforced polyamide to withstand operational stresses.

The device is inherently short circuit proof, making it a reliable choice for sensitive electronic circuits. It complies with international industry standards including VDE 0570 part 2-1, IEC 61558-2-6, ENEC 10 (VDE), and is recognized under C-UL-US certifications, providing assurance of quality and conformity.

Compact in size with dimensions 32.3 mm length, 27.3 mm width, and 21.8 mm depth, it is ideal where space efficiency on the PCB is critical. The isolation voltage of 5000 V and operating temperature up to 70°C make it suitable for demanding industrial environments.

With an efficiency rating of 55%, it maintains low heat generation and energy loss during operation. The frequency range supported is from 50 Hz minimum to 60 Hz maximum, compatible with common power systems worldwide.

PCB mount transformer with pin mounting for easy integration. Single 6 V ac output from 230 V ac input. Power rating of 1 VA suitable for low power electronic devices. Conforms to prominent safety and quality standards. Compact and lightweight with 70 g mass.

High isolation voltage for electrical safety. Vacuum epoxy resin mold for long-term reliability. Short circuit proof design. Low noise, low inter-winding capacitance construction. Applicable in industrial power supplies, electronics manufacturing, and testing instruments.

For engineers and designers requiring high-quality, certified transformers for PCB mounting, Block VB 1,0/1/6 offers reliability and safety compliance with international standards.
