Block PCB Transformer 9 V ac 1 Output Pin DIN EN 61558-2-1, VDE 0570 Part 2-6, IEC 61558-2-6, ENEC VB 1,2/1/9

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 9 V ac 1 Output Pin DIN EN 61558-2-1, VDE 0570 Part 2-6, IEC 61558-2-6, ENEC VB 1,2/1/9

Name: Block PCB Transformer 9 V ac 1 Output Pin DIN EN 61558-2-1, VDE 0570 Part 2-6, IEC 61558-2-6, ENEC VB 1,2/1/9
Brand: Block
SKU: 314147
Price: 16.73 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	57%
Length	32.3mm
Model	VB 1,2/1/9
Depth	23.8mm
Gross Weight	80g
Width	27.3mm
Mount Type	Pin
Series	VB 1.2/1/9
Maximum Operating Temperature	70°C
Number of outputs	1
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Operates with a primary voltage of 230 V ac and delivers 9 V ac secondary voltage.
Rated power capacity of 1.2 VA suitable for low power applications.
Constructed with pin mount type for easy PCB integration.
Compact dimensions of 32.3mm length, 27.3mm width, and 23.8mm depth enable space-saving designs.
High isolation voltage of 5000 V ensures robust electrical safety.
Designed to operate efficiently with a frequency range from 50 Hz to 60 Hz.
Maximum operating temperature is 70°C, ensuring reliability under thermal stress.
Manufactured with vacuum epoxy resin moulding and glass fibre reinforced polyamide bobbins for durability.

Product Description

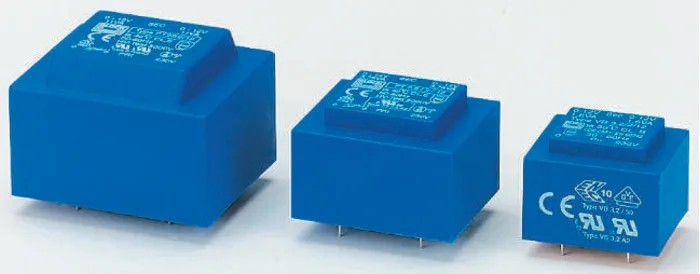

Block VB 1,2/1/9 is a high-quality PCB transformer designed for efficient electrical isolation and voltage transformation in electronic circuits. This transformer operates on a 230 V ac primary input and converts the voltage to a single 9 V ac output through a pin mount configuration, ideal for PCB integration.

With a power rating of 1.2 VA, it is suitable for low power applications and provides a compact footprint with dimensions 32.3mm (L) x 27.3mm (W) x 23.8mm (D). The product is vacuum epoxy resin moulded to UL94-V0 rating and uses double-section glass fibre reinforced polyamide bobbins, enhancing mechanical strength and insulation performance.

The transformer offers an isolation voltage of 5000 V and complies with multiple strict safety and quality standards including DIN EN 61558-2-1, VDE 0570 Part 2-6, IEC 61558-2-6, and ENEC, ensuring it is suitable for industrial and commercial use cases. Its efficiency stands at 57% with minimal temperature rise, allowing for reliable performance up to 70°C maximum operating temperature.

Designed to be short circuit proof, the VB series transformers are manufactured in Germany to meet rigorous quality controls. Operates with 230 V ac primary voltage and outputs 9 V ac secondary voltage. Power rating of 1.2 VA suitable for precise and low-power electronics.

Compact pin mount design for straightforward PCB mounting. High isolation voltage rating at 5000 V for safety and reliability. Vacuum epoxy resin moulded and glass fibre reinforced bobbins for durability. Conforms to multiple international safety and quality standards.

Maximum operating temperature of 70°C to suit various operating environments. Frequency range between 50 Hz and 60 Hz for standard electrical grids. Short circuit proof construction for enhanced protection. This PCB transformer is ideal for use in industrial electronics, power supplies, instrumentation, and control systems requiring reliable step-down isolation transformers.
