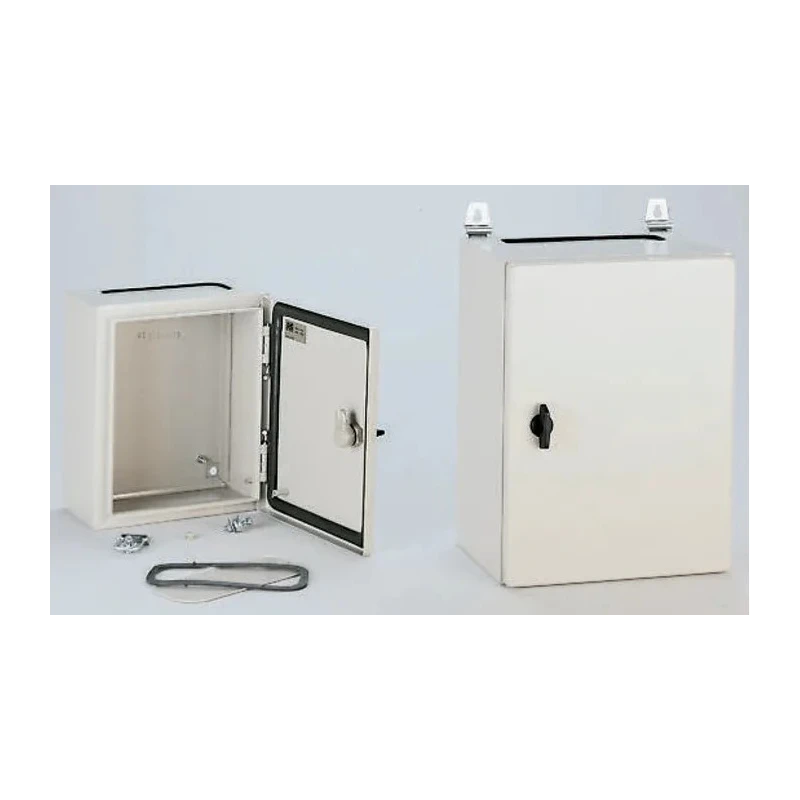

Schneider Electric Spacial CRN Series Steel Wall Box IP66, IK10, 1000 mm x 800 mm x 300 mm NSYCRN108300
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYCRN108300 |
| IP Rating | IP66 |
| Series | Spacial CRN |
| External Width | 800mm |
| External Depth | 300mm |
| External Height | 1000mm |
| Standards/Approvals | IEC 62208, cULus, REACH, UL, RoHS |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| Rittal AE Series Steel Wall Box, IP66, 1000 mm x 800 mm x 300mmBrand | Rittal |
Key Features
- The steel body features an epoxy-polyester powder finish in Grey RAL 7035.
- Compact wall-mount enclosure with external dimensions 1000 mm height, 800 mm width, and 300 mm depth.
- Plain, reversible front door opening up to 120° with a 3 mm double-bar lock for secure closure.
- Includes two bottom cable gland plates to facilitate cable entry and sealing.
- Conforms to IEC 60529 for IP66 water and dust ingress protection and IEC 62262 for IK10 impact resistance.
- Equipped with polyurethane seal for long-term watertight performance.
- Suitable for industrial automation and electrical enclosure applications.
- Mounting plate is not supplied with the enclosure.
Product Description
Schneider Electric NSYCRN108300 Spacial CRN Series Steel Wall Box enclosure combines robust steel construction with IP66 and IK10 ratings, making it ideal for harsh industrial environments requiring reliable protection against dust, water, and mechanical impacts. The enclosure's surface is coated with an epoxy-polyester powder finish in Grey RAL 7035, ensuring long-lasting durability and corrosion resistance.
The enclosure is designed with compact dimensions of 1000 mm height, 800 mm width, and 300 mm depth, providing versatile wall-mounted protection for electrical and automation equipment. The front door is plain and reversible, offering a 120° opening with a secure 3 mm double-bar lock mechanism. It includes two cable gland plates located at the bottom to accommodate multiple cable entries while preserving the enclosure's sealing integrity.
With an IP66 rating conforming to IEC 60529, the enclosure guarantees complete protection against dust ingress and powerful water jets, suitable for both indoor and outdoor installations. The IK10 impact resistance rating ensures the enclosure can withstand strong mechanical impacts without damage. A polyurethane seal further enhances the enclosure's watertight performance over time.
Although a mounting plate is not supplied, the enclosure supports internal panel mounting tailored to user requirements. The Spacial CRN series adheres to international standards such as IEC 62208, cULus, REACH, UL, and RoHS, underlining its quality and compliance for industrial automation applications.
Typical applications include industrial automation control installations, electrical equipment housing, and control panel protection requiring durable and secure enclosures that withstand environmental stressors. This enclosure is also part of the Schneider Electric 'Better World' initiative, designed for easy disassembly and sustainability.
The steel body features epoxy-polyester powder coating for enhanced durability. Designed for wall mounting with a reversible door opening at 120°. IP66 and IK10 rated protection ensures suitability for demanding environments.
Includes two cable gland plates for effective cable management. Complies with multiple international standards including IEC 62208 and UL certifications. Explore the full range of Schneider Electric industrial enclosures and solutions at EnvMart to find products designed for efficiency, reliability, and compliance.
Explore more products in our Wall Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this model are 1000 mm in height, 800 mm in width, and 300 mm in depth.
This enclosure has an IP66 rating, providing complete protection against dust ingress and powerful water jets, suitable for both indoor and outdoor use.
It has an IK10 impact resistance rating, ensuring it can withstand strong mechanical impacts without damage.
The body of this wall box is constructed from steel and features an epoxy-polyester powder finish in Grey RAL 7035 for corrosion resistance.
No, a mounting plate is not supplied with the enclosure, but it supports internal panel mounting tailored to user requirements.
It features a double-bar lock mechanism for secure closure of the front door.
This enclosure complies with several international standards including IEC 62208, cULus, REACH, UL, and RoHS.
The two bottom cable gland plates facilitate cable entry and sealing, helping to maintain the enclosure's integrity.
It is suitable for applications in industrial automation, electrical equipment housing, and control panel protection.
The enclosure is finished in Grey RAL 7035.
It is designed for disassembly as part of Schneider Electric's 'Better World' initiative, promoting sustainability.
The weight of this specific model is not provided in the available specifications.
