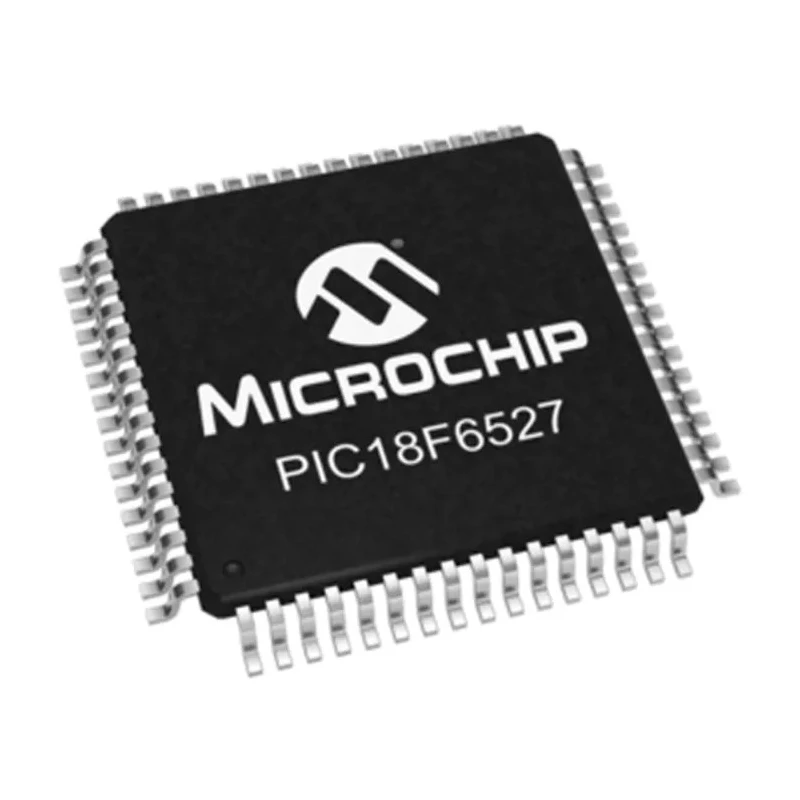

Microchip 8-Bit PIC18F Microcontroller 40 MHz, 1.024kB Program Memory, 64-Pin TQFP PIC18F6527-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18F6527-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.94kB |
| Interface Type | SPI |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 1.024, 48kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 12 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This 8-bit PIC18F microcontroller operates at a maximum clock frequency of 40 MHz.
- It features a program memory size of 1.024 kB with 48 kB flash memory using FLASH program memory type.
- The device includes 3.94 kB RAM and supports SPI interface communication.
- Maximum operating voltage is 5.5V with minimum supply voltage of 1.8V and maximum power dissipation of 1 W.
- The microcontroller has 25 programmable I/O pins and 5 timers.
- It supports 12 channels of 10-bit ADCs and includes 2 analogue comparators.
- The device supports RISC instruction set architecture and is surface mounted in a 64-pin TQFP package.
- Operating temperature ranges from -40 °C to 85 °C, suitable for various industrial and embedded applications.
Product Description
Microchip PIC18F6527-I/PT is an 8-bit PIC microcontroller designed for diverse embedded system applications requiring high performance and reliability. Operating at a maximum clock frequency of 40 MHz, it provides efficient processing power suitable for real-time control tasks.
This device features 1.024 kB program memory and 48 kB FLASH memory to store firmware and application code, supported by 3.94 kB RAM for data and stack operations. The FLASH memory enables reprogrammability and storage of complex programs.
Designed with 64 pins in a TQFP package, the microcontroller allows for extensive connectivity through 25 programmable input/output pins and communication interfaces including SPI for peripheral interfacing and data transfers.
It has 12 channels of 10-bit ADC, making it suitable for analog signal processing tasks in sensor interfacing and measurement applications. The inclusion of two analogue comparators facilitates analog threshold detection and other analog functions.
Operating voltage ranges from 1.8 V to 5.5 V with a maximum power dissipation of 1 Watt, ensuring suitable power efficiency for embedded systems. This MCU can operate reliably in harsh temperature conditions from -40°C to 85°C, making it fit for automotive, industrial automation, consumer electronics, and instrumentation.
This microcontroller uses a RISC instruction set, optimizing performance and code density for efficient firmware development. The compact TQFP 64-pin form factor allows for space-efficient PCB designs and surface-mount installation.
Wide temperature range and low power consumption make it adaptable to various industrial, laboratory, and commercial applications. Environmentally conscious design without automotive standard certification indicates suitability primarily for industrial and consumer embedded systems.
Explore more Microchip Microcontrollers within the Electronics & Electricals Semiconductor category at EnvMart, where you find reliable components for your next embedded design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The microcontroller operates at a maximum clock frequency of 40 MHz.
It features a program memory size of 1.024 kB along with 48 kB of FLASH memory.
This microcontroller includes 25 programmable I/O pins for extensive connectivity.
It supports SPI interface communication for peripheral interfacing and data transfers.
The operating voltage ranges from a minimum of 1.8 V to a maximum of 5.5 V.
It has a RAM size of 3.94 kB for data and stack operations.
The operating temperature ranges from -40 °C to 85 °C, suitable for various applications.
It supports 12 channels of 10-bit ADCs for analog signal processing tasks.
This microcontroller is housed in a TQFP package with 64 pins.
The maximum power dissipation is 1 Watt, ensuring power efficiency for embedded systems.
It includes 5 timers for various timing applications.
It uses a RISC instruction set architecture, optimizing performance and code density.
