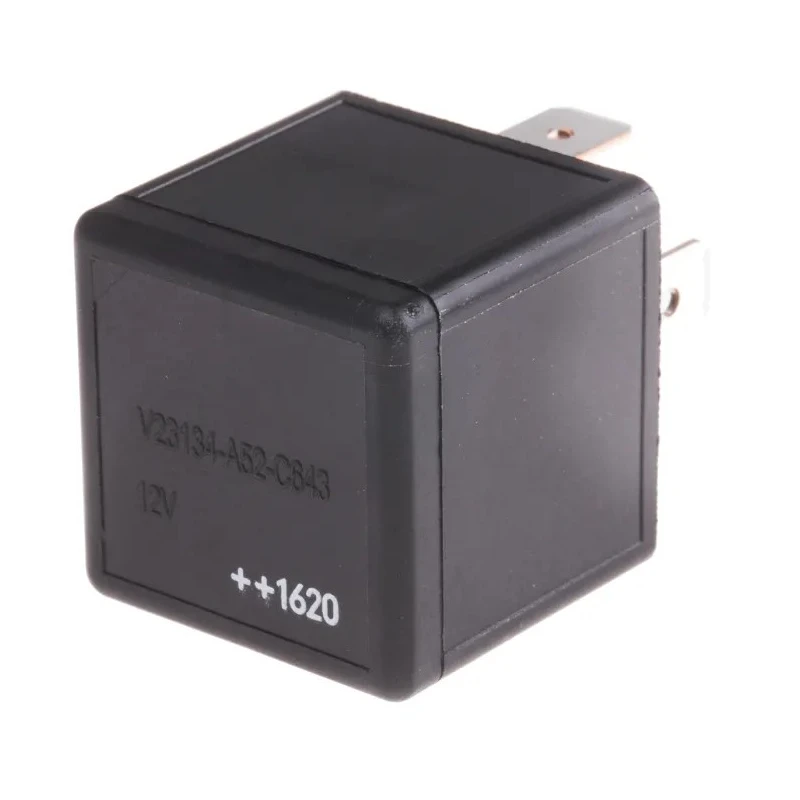

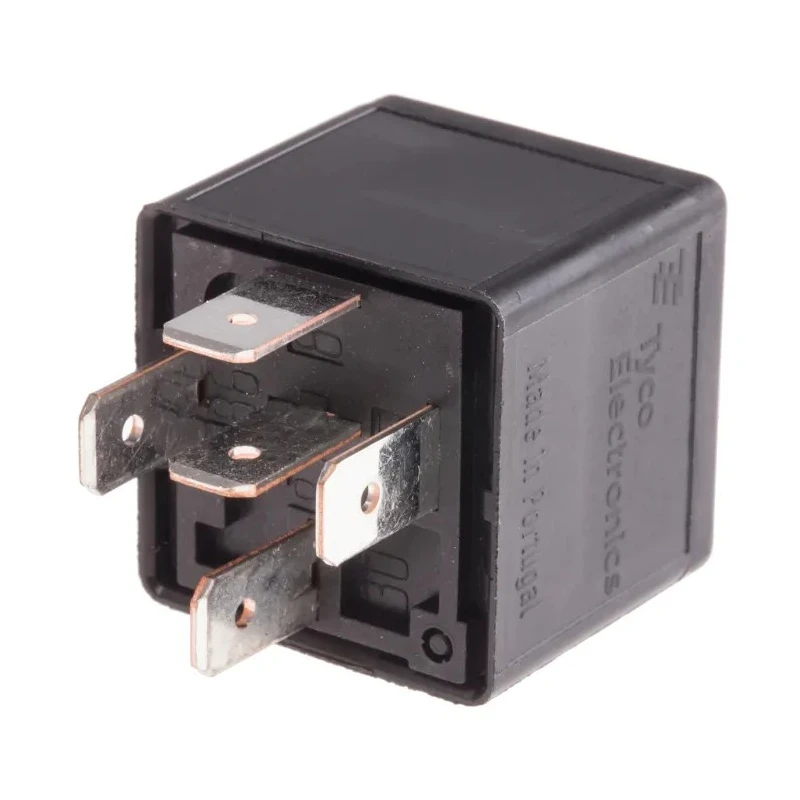

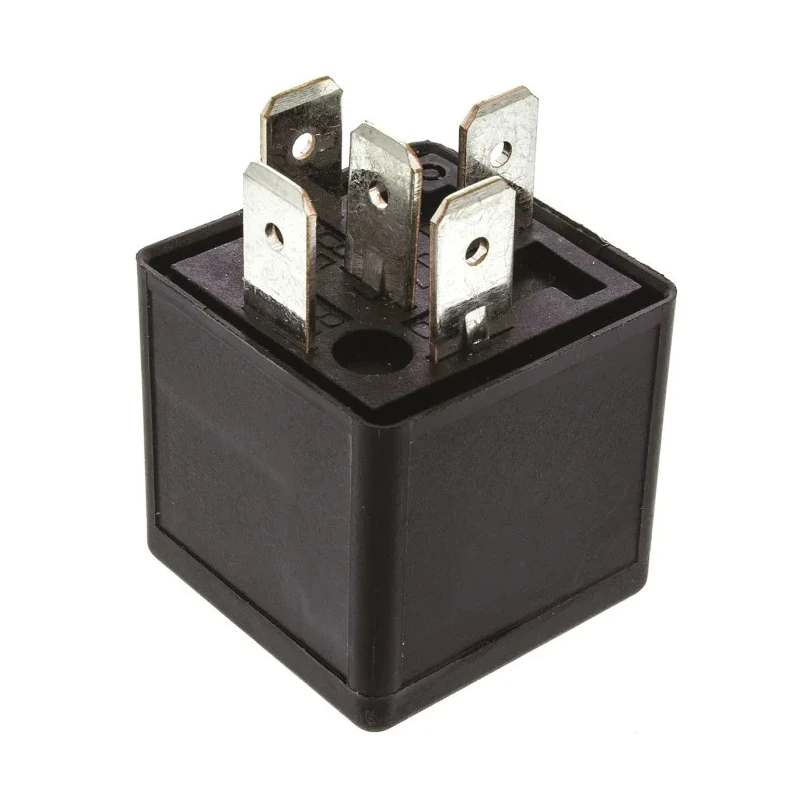

TE Connectivity Automotive Relay, 12V DC Coil Voltage, 40A Switching Current, SPDT, Quick V23134A0052C643 2-1393302-2
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 25.2mm |
| Length | 26.2mm |
| Model | V23134A0052C643 2-1393302-2 |
| Depth | 26.2mm |
| Contact Material | Silver |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 91Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500V |
Key Features
- Equipped with a 1.6W coil power ensuring reliable operation.
- Coil resistance measured at 91 ohms for stable performance.
- Single Pole Double Throw (SPDT) contact configuration for versatile circuit control.
- Designed with quick connect terminals for fast and secure installation.
- Operates within a temperature range of -40°C to 125°C.
- Compact dimensions of 26.2mm length, 25.2mm height, and 26.2mm depth.
- Constructed with durable silver contact material ensuring high conductivity.
- Isolation voltage between coil and contact rated at 500V for safety.
Product Description
TE Connectivity V23134A0052C643 2-1393302-2 is a high-quality automotive relay designed for robust electrical control in vehicles. Operating at a 12V DC coil voltage and capable of handling a 40A switching current, this relay is ideal for automotive applications demanding reliability and durability.
The relay belongs to the F4 series of mini ISO Automotive Relays, featuring quick connect plug-in terminals that facilitate rapid and secure installation. Its coil power of 1.6W combined with a coil resistance of 91 ohms ensures efficient energy consumption during operation.
Its contact configuration is SPDT (Single Pole Double Throw), providing flexibility in circuit design. Constructed with silver contact material, it ensures excellent electrical conductivity and long service life. The relay is engineered to operate reliably within temperature extremes from -40°C to 125°C, suitable for harsh automotive environments.
With compact dimensions of 26.2mm length, 25.2mm height, and 26.2mm depth, the relay is space-efficient and adaptable to various assembly requirements. The isolation voltage rating of 500V between coil and contact adds a layer of electrical safety, preventing unintended current flow.
Applications of this TE Connectivity automotive relay include ignition lock control, headlamp circuits, exhaust emission control, ABS systems, fuel pumps, electric power steering, wiper control, car alarms, and blower fan operations. Its integrated components and multiple contact arrangements make it a versatile choice for automotive electrical systems.
Equipped with a 1.6W coil power ensuring reliable operation. Coil resistance measured at 91 ohms for stable performance. Single Pole Double Throw (SPDT) contact configuration for versatile circuit control. Designed with quick connect terminals for fast and secure installation.
Operates within a temperature range of -40°C to 125°C. Compact build with dimensions 26.2mm x 25.2mm x 26.2mm. Silver contact material provides superior conductivity and durability. Isolation voltage between coil and contact rated at 500V ensures safety.
Part of the durable F4 series suited for varied automotive applications.
This automotive relay is manufactured in Portugal and represents a reliable solution for automotive electrical control requiring compact, efficient, and durable relays. Explore more automotive relay products at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a 12V DC coil voltage, making it suitable for automotive applications.
This model can handle a maximum switching current of 40A, providing reliable circuit control.
It features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit design.
The relay has compact dimensions of 26.2mm in length, 25.2mm in height, and 26.2mm in depth.
The coil resistance is measured at 91 ohms, ensuring stable performance during operation.
It operates reliably within a temperature range of -40°C to 125°C, suitable for harsh automotive environments.
This relay is designed with quick connect terminals for fast and secure installation.
The isolation voltage between the coil and contact is rated at 500V, providing a layer of electrical safety.
The contacts are constructed from silver, ensuring high conductivity and long service life.
This automotive relay is manufactured in Portugal.
It is part of the F4 series of mini ISO Automotive Relays, designed for robust electrical control.
Applications include ignition lock control, headlamp circuits, fuel pumps, and ABS systems among others.
