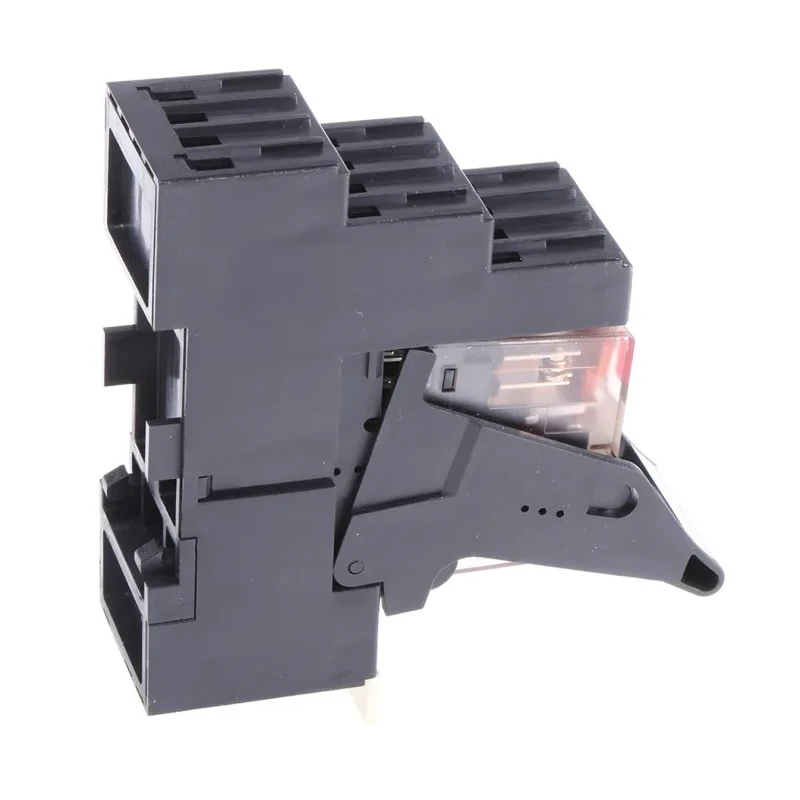

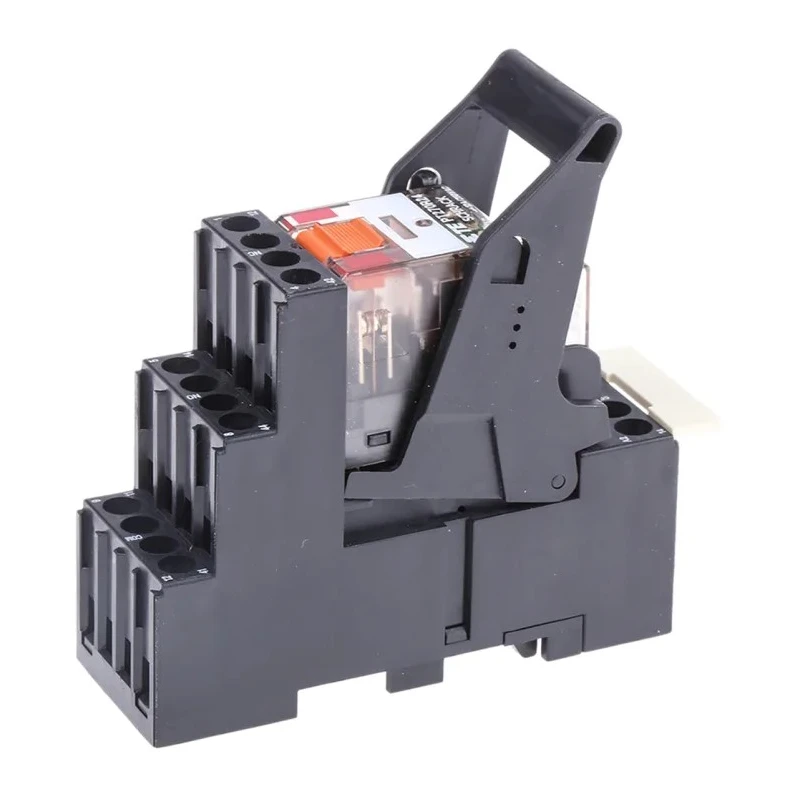

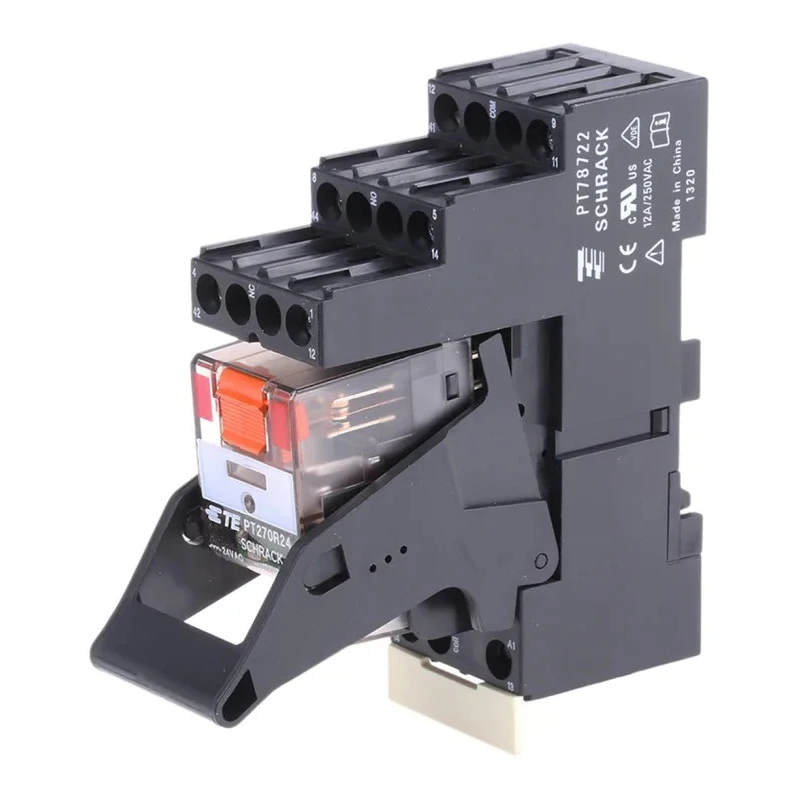

TE Connectivity DIN Rail Power Relay, 24V ac Coil, 12A Switching Current, DPDT PT2L7RC4 9-1415534-0

TE Connectivity PT2L7RC4 9-1415534-0 DIN Rail Power Relay is engineered for industrial and electrical automation uses where precise switching performance is critical. It operates with a 24V ac coil and supports a switching current rated at 12A, suitable for medium power control circuits. The relay utilizes a Double Pole Double Throw (DPDT) contact configuration to enable multiple circuit control.

This relay is designed for DIN rail mounting, facilitating easy integration into control panels and electrical enclosures common in manufacturing, HVAC, and process automation sectors. The relay's silver nickel alloy contacts ensure durability and maintained electrical performance over extended operational cycles.

Dimensionally, the relay measures 78.3mm in height, 77mm in length, and 27.2mm in width, making it compact yet robust, while screw type terminals provide reliable electrical connections. Operating temperature ranges from -40°C to 70°C, allowing it to function efficiently in diverse environments.

Included with the relay are a DIN rail socket, module, retainer, and marking tab enhancing installation and identification. The relay complies with major international standards such as IEC 61810-1, UL, RoHS, and VDE, ensuring quality, safety, and environmental friendliness.

This product is suitable for applications in industrial automation, electrical distribution, HVAC control, manufacturing process controls, and other commercial electrical systems demanding reliable switching. Its varied approvals and compact design make it advantageous for engineers and systems integrators.

Designed for mounting on DIN rail systems for industrial applications. 24V ac coil voltage ensures consistent relay operation. DPDT contact configuration enables flexible switching. Rated switching current of 12A suitable for medium power circuits.

Silver nickel alloy contacts provide durability and low resistance. Compact sizing optimizes panel space with dimensions 78.3mm x 77mm x 27.2mm. Screw-type terminals ensure secure electrical connections. Wide operating temperature range of -40°C to 70°C.

Includes DIN rail socket, module, retainer, and marking tab for ease of installation. Certified to IEC, UL, RoHS, and VDE standards for safety and quality assurance. Discover more reliable industrial automation components by exploring the Power Relays category at EnvMart.
