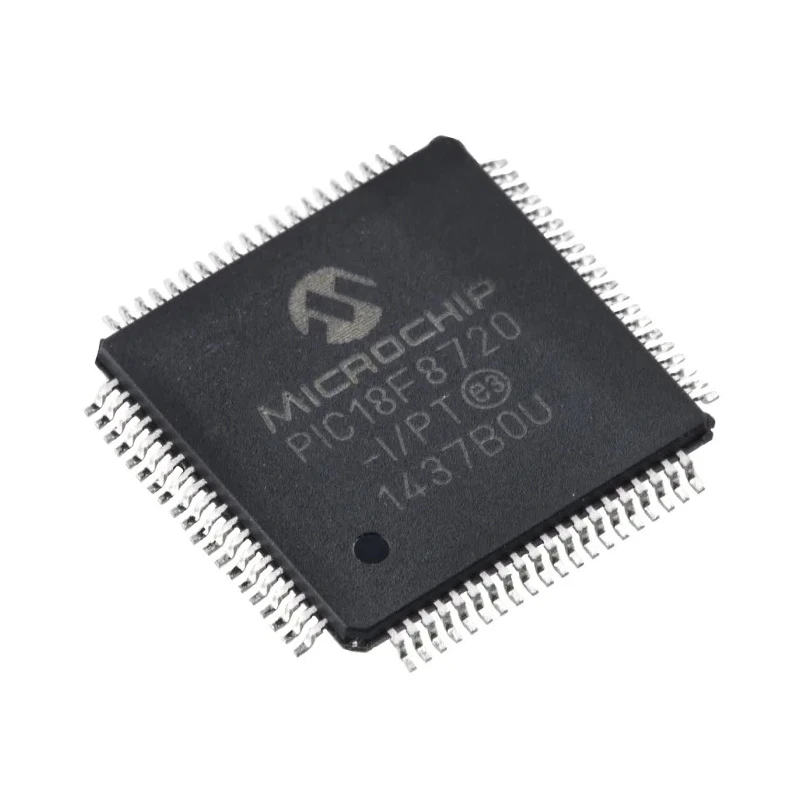

Microchip 8-bit PIC18F Microcontroller 1.024MB Flash 128kB RAM 25MHz 80-Pin TQFP PIC18F8720-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12.25mm |
| Model | PIC18F8720-I/PT |
| Width | 12.25mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.84kB |
| Standards/Approvals | RoHS |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 4.2V |
| Device Core | PIC |
| Program Memory Size | 1.024, 128kB |
| Maximum Clock Frequency | 25MHz |
| Number of Programmable I/Os | 68 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 2MB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features a PIC18F series RISC architecture for efficient processing.
- Operates at a maximum clock frequency of 25 MHz for high-speed performance.
- Equipped with 1.024MB program memory and 3.84kB RAM for complex applications.
- Includes 68 programmable I/O pins for versatile interfacing.
- Supports 16 x 10-bit ADC channels and 5 timers for advanced control.
- Designed for surface mount with 80-pin Thin Quad Flat Package (TQFP).
- Operating voltage ranges from 4.2V minimum to 5.5V maximum supply.
- Operating temperature range from -40°C to 85°C suitable for industrial conditions.
Product Description
Microchip PIC18F8720-I/PT is a high-performance 8-bit PIC microcontroller featuring a 25 MHz maximum clock frequency with an advanced RISC architecture. It provides 1.024MB of FLASH program memory and 3.84kB of RAM, packaged in an 80-Pin Thin Quad Flat Package (TQFP) designed for surface mounting. This microcontroller is ideal for industrial, automotive, embedded system, and electronic applications requiring efficient processing and extensive I/O connectivity.
It includes 68 programmable I/O pins, 5 timers, and 16 analog-to-digital converters (ADC) with 10-bit resolution, enabling precise control and measurement. The device operates reliably over a wide supply voltage range of 4.2V to 5.5V and can withstand temperatures from -40°C to 85°C, making it suitable for harsh operating environments.
The PIC18F8720-I/PT supports program memory expansion up to 2MB, enhancing flexibility for complex software implementations. With low power dissipation rated at 1W maximum, it ensures energy-efficient operation. Additionally, the microcontroller is compliant with RoHS environmental standards, ensuring safe and eco-friendly usage.
Package dimensions are compact, measuring 12.25mm by 12.25mm with a height of 1.05mm, suitable for space-constrained PCB layouts. The robust features and extensive functionality of this microcontroller make it an excellent choice for applications in industrial automation, electronic instrumentation, consumer electronics, and automotive systems.
Features a PIC18F series RISC architecture for efficient processing. Operates at a maximum clock frequency of 25 MHz for high-speed performance. Equipped with 1.024MB program memory and 3.84kB RAM for complex applications.
Includes 68 programmable I/O pins for versatile interfacing. Supports 16 x 10-bit ADC channels and 5 timers for advanced control. Designed for surface mount with 80-pin Thin Quad Flat Package (TQFP). Operating voltage ranges from 4.2V minimum to 5.5V maximum supply.
Operating temperature range from -40°C to 85°C suitable for industrial conditions. Compliant with RoHS standards ensuring environmental safety. Explore comprehensive Microchip Microcontrollers and related semiconductor components on EnvMart for reliable and advanced embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 25 MHz, allowing for high-speed performance in applications.
It features a program memory size of 1.024MB, which is suitable for complex applications.
This microcontroller includes 68 programmable I/O pins, providing versatile interfacing options.
The operating voltage range is from 4.2V minimum to 5.5V maximum, ensuring compatibility with various power supplies.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial conditions.
The PIC18F8720-I/PT supports 16 analog-to-digital converter (ADC) channels with 10-bit resolution.
This model is designed in an 80-pin Thin Quad Flat Package (TQFP) for surface mounting.
The maximum power dissipation for the PIC18F8720-I/PT is rated at 1W, ensuring energy-efficient operation.
The package dimensions are 12.25mm in length and width, with a height of 1.05mm, suitable for space-constrained PCB layouts.
This microcontroller includes 5 timers for advanced control in various applications.
Yes, it is compliant with RoHS standards, ensuring safe and environmentally friendly usage.
The maximum expanded memory size supported by the PIC18F8720-I/PT is up to 2MB, enhancing flexibility for software implementations.
