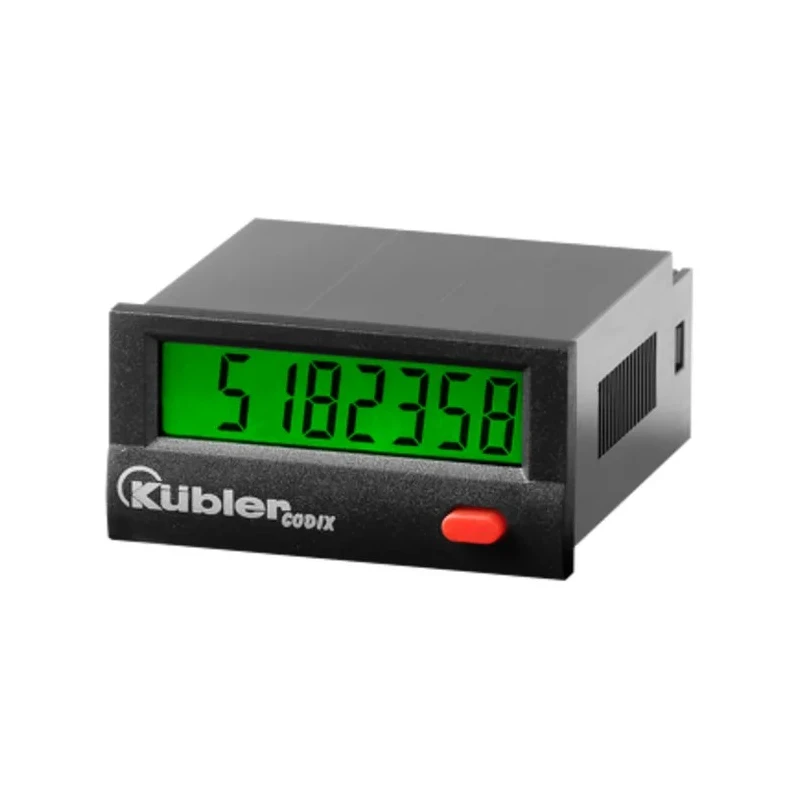

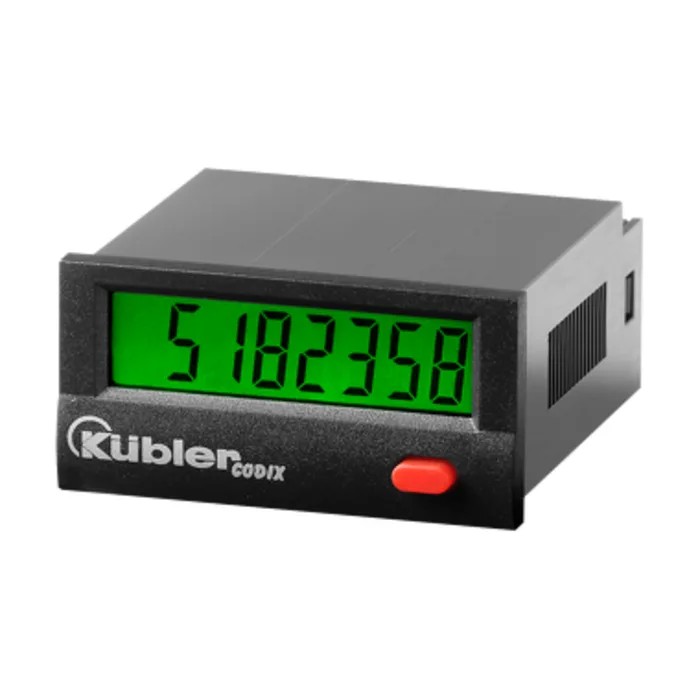

Kubler 8 Digit LCD Panel Mount Counter CODIX 131 6.131.012.851, Battery Powered, 8mm Digit Height, IP65 Rated

Kubler 6.131.012.851 CODIX 131 is an 8 digit LCD panel mount counter designed for various industrial and automation counting applications. Its battery-powered design eliminates the need for external power supply, making it suitable for installations where power source is unavailable or limited.

The device features an 8mm digit height for excellent readability and applies leading zero blanking for visual clarity. It supports both slow count inputs, such as mechanical contacts, and fast count inputs up to 30 kHz, accommodating a wide range of input signals.

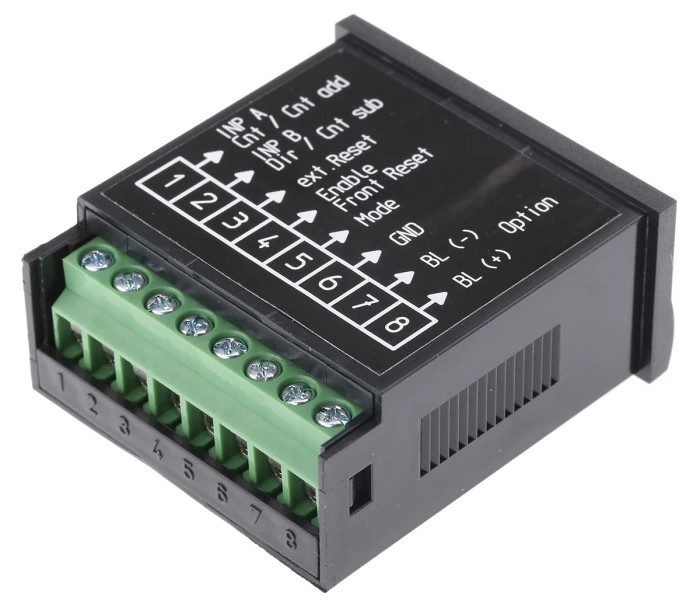

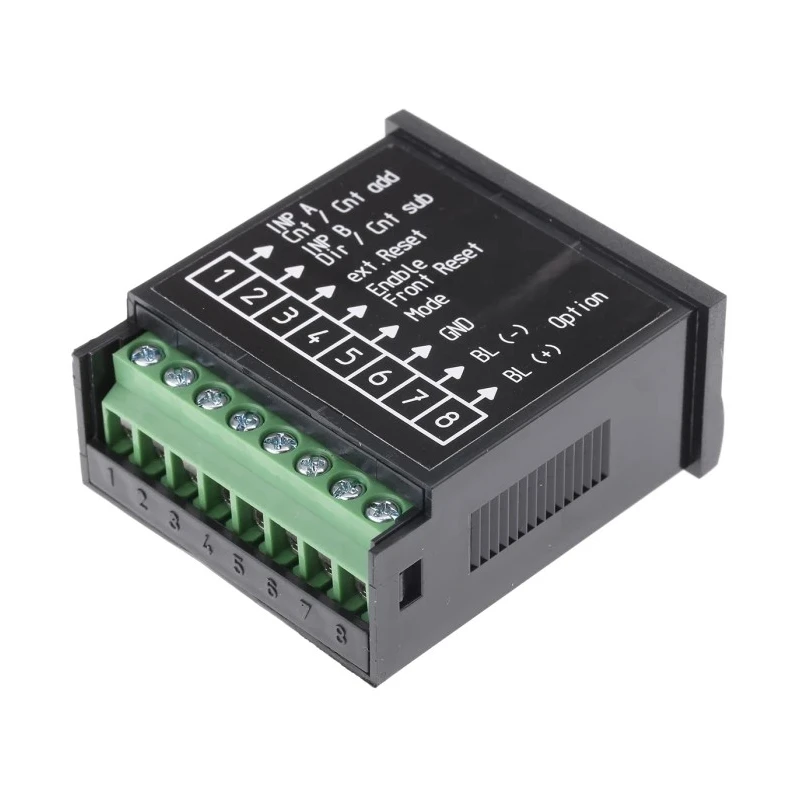

This counter supports versatile counting modes including NPN, PNP, and AC inputs, providing a flexible solution for different automation systems. The counter is simple to use with no programming required and offers easy and safe connections through screw terminals.

The panel mounting is facilitated by included bezels, fitting standard panel cut-out dimensions of 22.2 mm by 45 mm. Its IP65 rating ensures protection against dust ingress and water splashes, suitable for harsh industrial environments.

Operating reliably within a temperature range of -10 to +60 degrees Celsius, the Kubler CODIX 131 counter is engineered for durability and performance in industrial, process control, manufacturing, and automation use cases.

Eight digit LCD display with 8mm digit height for clear readability. Battery powered with no external power supply required. Supports slow and fast count inputs including mechanical contacts and up to 30kHz frequency. Compatible with counting modes NPN, PNP, AC, fast, and slow counting.

Panel mounting with included bezels and panel cut-out dimension of 22.2mm x 45mm. IP65 rated for protection against dust and water splashes. Operating temperature range from -10 to +60 degrees Celsius. Easy and safe electrical connection using screw terminals.

No programming required, simplifying installation and use. Manufactured in Germany ensuring high quality standards. Explore the Electronics & Electricals > Automation & Control Gear > Counter category on EnvMart for more automation counter solutions including Kubler Counters.
