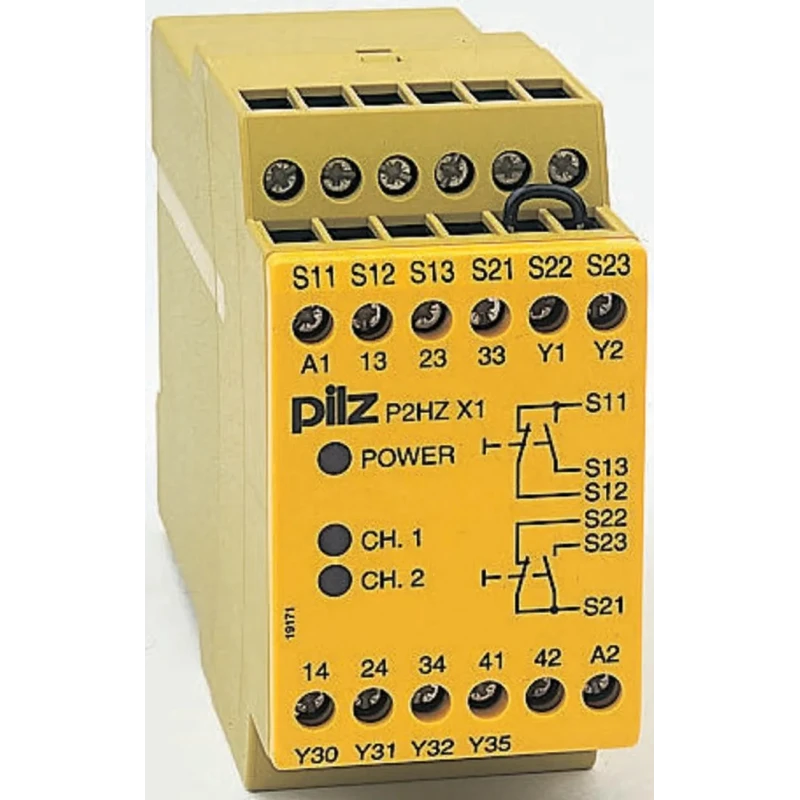

Pilz P2HZ X1, 115V AC Safety Relay with 3 Safety Contacts and 1 Auxiliary Contact P2HZ

Pilz P2HZ X1 is a 115V AC safety relay designed for advanced safety applications, including two-hand monitoring with three safety contacts and one auxiliary contact. It features a manual reset and DIN rail mounting, making it ideal for reliable integration in industrial safety systems.

This relay ensures the operator's hands are outside the danger zone before hazardous machine operations can proceed, enhancing workplace safety. The device includes LED indicators for channel status and supply voltage monitoring, assisting in quick diagnostics.

P2HZ series supports single or dual channel input operation to accommodate various machine safety configurations. The outputs will only re-energize after both operator controls are released and then simultaneously operated, ensuring high safety integrity.

Constructed for durability with IP54 rating, screw terminal type, and a temperature operating range from -10°C to 55°C, this relay is reliable for harsh industrial environments. It complies with standards such as EN 574 Type IIIC, EN 60947-5-1, EN 60068, VDE 0110-1, and IEC safety norms.

Commonly applied in mechanical and hydraulic presses, this relay provides effective safety control suitable for general safety circuits in compliance with EN 60204-1. The self-monitoring circuit detects and prevents faults such as coil defects, contact welding, and open or short circuits, ensuring continuous safe operation.

Specifically designed for two handed control and operation. LED indicator for monitoring channel status and supply voltage. Single or Dual channel input operation for flexible safety control. Reactivation requires simultaneous release and re-operation of operator elements.

Durable DIN rail mount suitable for industrial use. Extended service life compared to competitors. Self-monitoring safety relay to prevent component failure risks. Complies with key safety standards including EN 60204-1 and EN ISO 13849-1.

Ideal for mechanical presses, hydraulic presses, and general safety circuits. Explore more Safety Relays and automation components on EnvMart for robust industrial safety solutions.
