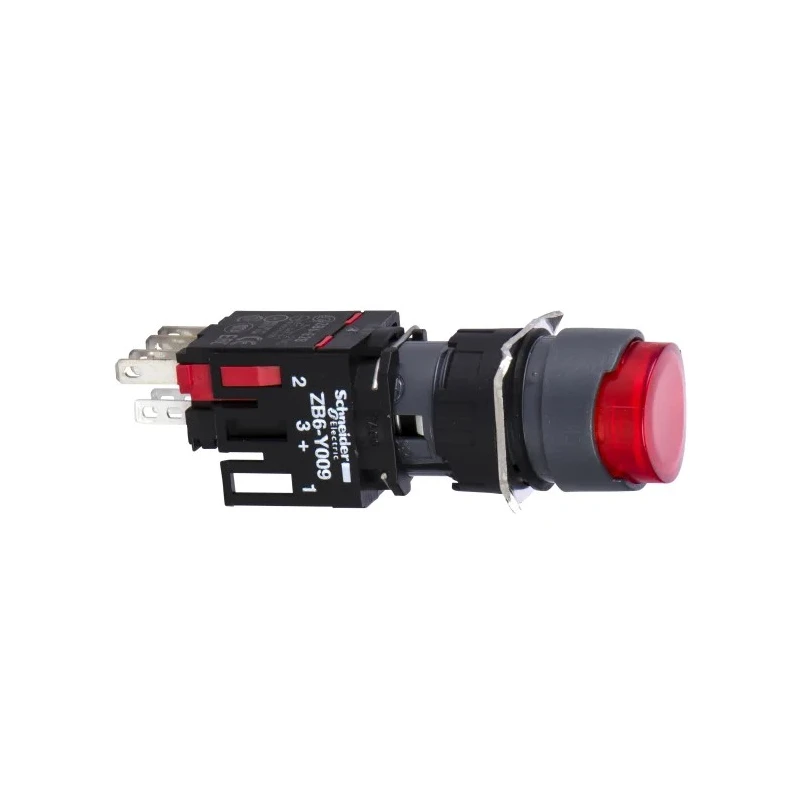

Schneider Electric Harmony XB6 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 16 mm Cutout XB6AE4B2B

Schneider Electric XB6AE4B2B Illuminated Push Button Switch Series Harmony XB6 is a high-quality, reliable panel-mounted control switch designed for industrial, manufacturing, electrical automation, and commercial applications. This model features a bright red LED for illumination, allowing easy visibility under varying lighting conditions and providing clear operational status indication.

The push button operates using a spring return mechanism, providing dependable momentary contact functionality. The actuator is round, with an actuator color and LED color in red, matching typical safety and warning color codes in industrial control panels. Its precise 16 mm panel cutout size ensures compatibility with standard panels.

Constructed to withstand demanding environmental conditions, this switch has an IP65 rating, protecting it against dust ingress and low-pressure water jets. It is rated for contact voltages up to 250V DC and 240V AC, making it compatible with a wide range of electrical systems. The quick connect terminal type streamlines the wiring process, saving time in installation and maintenance.

The compact dimensions of 18 mm width, 18 mm height, and 61 mm length make this switch suitable for panel applications with space constraints. Despite the compact size, it delivers robust mechanical and electrical performance. The operating temperature range from -25°C to 70°C allows deployment in diverse climate conditions.

This switch's cosmetic design features a blank legend to allow for custom labeling or usage without predefined functions. It is manufactured in France, guaranteeing quality control and adherence to industrial standards.

Features a red LED illumination for clear operational status indication. Operates with Spring Return switch mechanism for quick return to default position. Panel cutout size is precisely 16 mm for easy mounting and replacement.

Single Pole Single Throw (SPST) contact configuration for simple switching functions. Durable round actuator style with red color enhancing visibility and safety. Rated IP65 for dust-tight and water jets protection, suitable for harsh environments.

Designed to operate within temperature range -25°C to 70°C ensuring wide application range. Supports 250V DC and 240V AC contact voltages for versatile electrical systems. Quick connect terminal type for efficient installation and wiring.

This Schneider Electric Harmony XB6 series push button switch is an excellent choice for industrial control panels, automation systems, machinery operation, and other electrical control applications requiring robust, visible, and reliable user interface controls.
