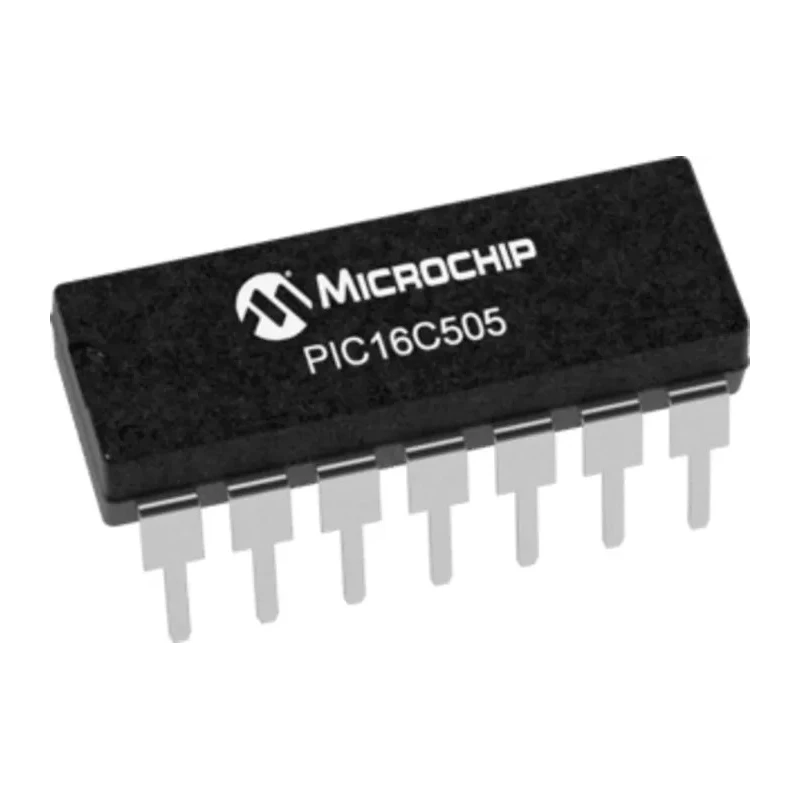

Microchip 8 Bit PIC Microcontroller PIC16C 4 MHz EPROM 14-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 19.3mm |
| Model | PIC16C |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 72bit |
| Pin Count | 14 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 700mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 1kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 11 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 bit |
| Program Memory Type | EPROM |
Key Features
- Operates at a maximum clock frequency of 4 MHz with low power consumption.
- Includes 1kB EPROM program memory and 72-bit RAM for efficient data handling.
- Features 11 programmable I/O pins supporting diverse interfacing needs.
- Built-in 8-bit timer and watchdog timer for precise timing and system reliability.
- Designed for through-hole mounting using a 14-pin PDIP package.
- Wide operating temperature range from 0°C to 70°C ensures dependable industrial use.
- Maximum supply voltage up to 5.5 V with power dissipation rating of 700 mW.
- Employs RISC instruction set architecture optimized for embedded control applications.
Product Description
Microchip PIC16C505-04/P is an 8-bit PIC microcontroller featuring a 4 MHz internal oscillator and EPROM program memory. It is offered in a 14-pin PDIP through-hole package ideal for robust embedded electronic designs across industrial and consumer applications.
This PIC16C family member adopts Microchip's baseline PIC architecture with a 2-level hardware stack and supports 33 instructions optimized for efficient embedded programming. The device provides 1kB of EPROM for program storage and 72 bits of RAM to handle data operations smoothly.
The microcontroller includes 11 programmable input/output pins allowing flexible interfacing with sensors, actuators, and other peripherals. It also consists of a single 8-bit timer critical for timing and event control. Additional features include a watchdog timer (WDT), power-on reset (POR), and device reset timer (DRT) to enhance system stability and safety.
The device operates at voltages between 3 V and 5.5 V with a maximum power dissipation of 700 mW, suitable for low-power embedded solutions. Its ambient operating temperature range from 0°C to 70°C ensures reliable performance in various environments, including industrial controls, automation, and automotive electronics.
The compact size of 19.3 mm length, 6.6 mm width, and 3.68 mm height makes it fit for space-sensitive applications requiring through-hole installation on printed circuit boards (PCBs). Although superseded by Flash-based PIC16F variants for new designs, the PIC16C505 remains popular in legacy systems due to its stability and long-term availability.
Operates at 4 MHz maximum clock frequency for control applications. 1kB EPROM plus 72-bit RAM memory for program and data. Contains 11 programmable I/O pins for flexible interfacing. Includes an 8-bit timer and watchdog timer for system monitoring.
Packaged in 14-pin PDIP with through-hole mount type. Wide operating temperature is 0°C to 70°C for industrial usage. Supports RISC architecture with 33 instructions for efficient code. Certified to ISO 9001 automotive standards for quality assurance.
Compact dimensions enable installation in tight spaces. Designed for embedded control, automation, and legacy industrial systems.
Discover more microcontrollers and PIC Microcontroller variants to suit various industrial, automotive, and embedded applications at EnvMart. Explore our complete range of semiconductor components designed for performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory size of 1kB EPROM.
This model includes 11 programmable I/O pins for flexible interfacing.
The operating temperature range is from 0°C to 70°C.
The dimensions are 19.3 mm in length, 6.6 mm in width, and 3.68 mm in height.
The maximum supply voltage is 5.5 V.
It is packaged in a 14-pin PDIP (Plastic Dual In-line Package) for through-hole mounting.
The maximum power dissipation rating is 700 mW.
It employs a RISC instruction set architecture optimized for embedded control applications.
This model includes one 8-bit timer for timing and event control.
It is certified to the ISO 9001 automotive standard for quality assurance.
The microcontroller has a RAM size of 72 bits for data handling.
