Eaton 16A PKZM 0 Motor Protection Circuit Breaker 690V, 3 Poles, IP20, Operating Temperature -25 to 199200 PKZM0-16-SPI32
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199200 PKZM0-16-SPI32 |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 16A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- This circuit breaker provides reliable protection against overloads and short circuits.
- It supports motors up to 7.5 kW with high breaking capacity of 50 kA.
- Compact dimensions of 75mm length, 45mm width, and 75mm depth allow easy installation in restricted spaces.
- Features phase-failure sensitivity compliant with IEC standards for enhanced motor safety.
- Suitable for operation in temperatures ranging from -25 to 55°C.
- IP20 rated enclosure protects internal components from solid objects and light contact.
- Compatible with screw and push-in terminal types for flexible wiring options.
- Durable design supports up to 100,000 electrical operations, ensuring long service life.
Product Description

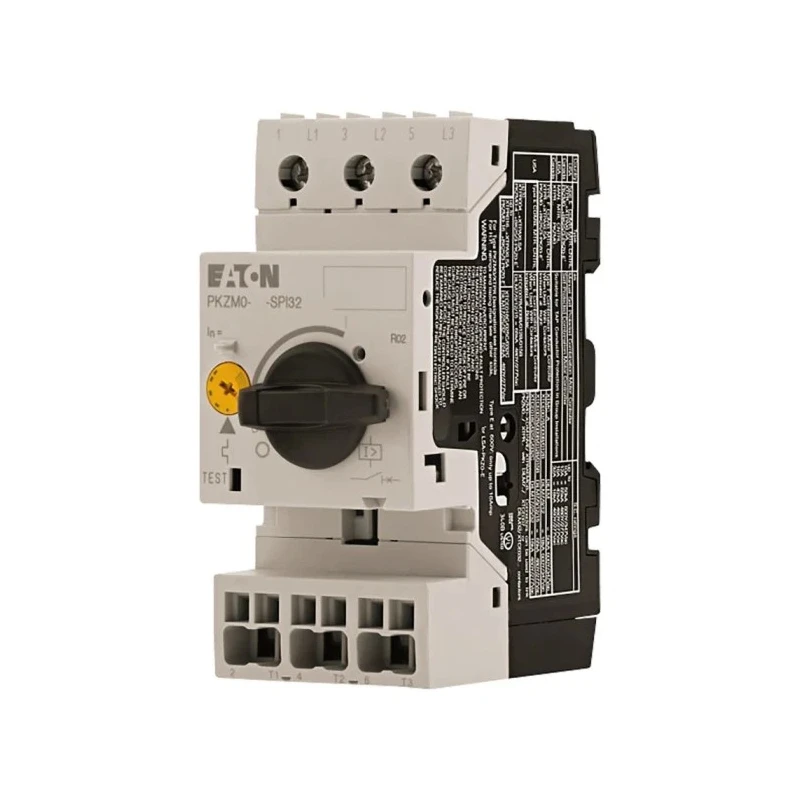

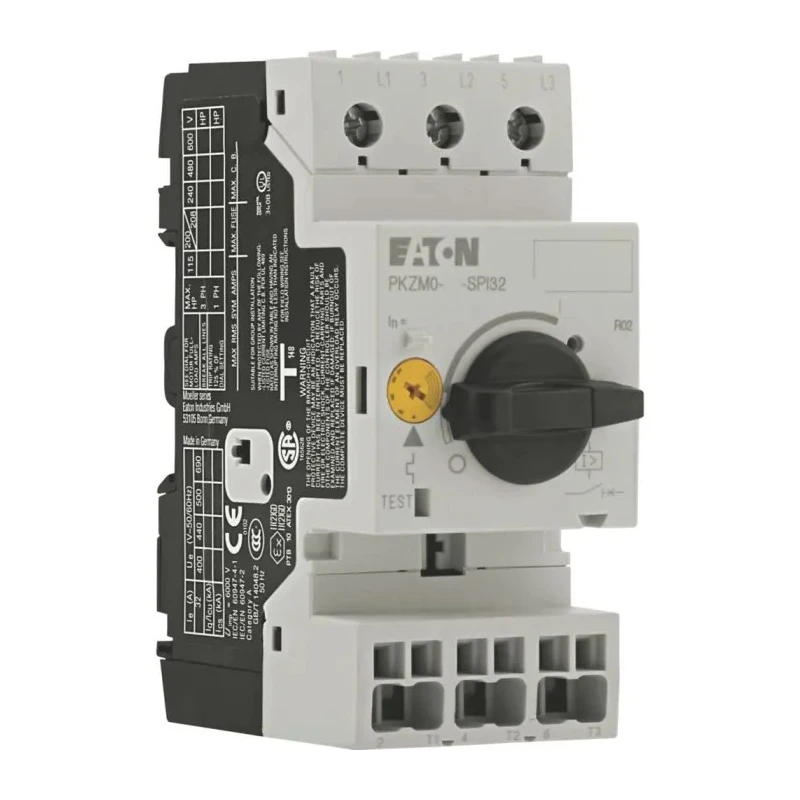

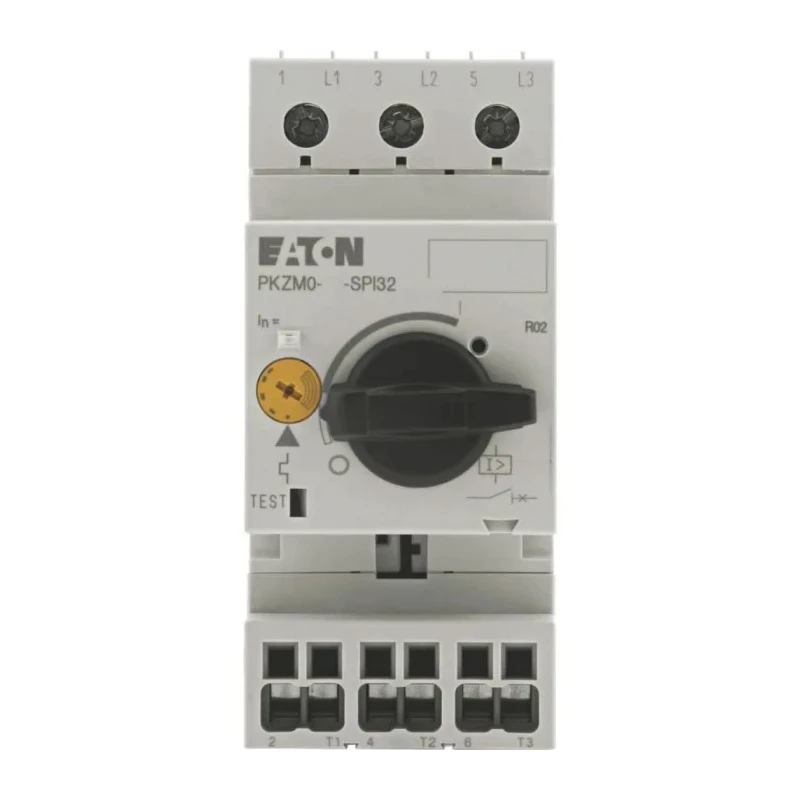

Eaton 199200 PKZM0-16-SPI32 Motor Protection Circuit Breaker is a 16A motor protection device engineered to safeguard electrical motors from overloads and short circuits in demanding industrial environments. Operating at a supply voltage of 690V, this circuit breaker is part of the PKZM 0 series and is designed to support motors up to 7.5 kW.
It features phase-failure sensitivity compliant with IEC standards, ensuring rapid disconnection during electrical faults to protect connected motors effectively. The breaker boasts a high breaking capacity of 50 kA, providing robust short circuit protection.
The compact form factor with dimensions of 75mm length, 45mm width, and 75mm depth allows fitting in tight industrial control panels. Its IP20 rating offers protection against solid objects larger than 12mm and light contact, suitable for various industrial settings.
This motor protection circuit breaker is compatible with both screw and push-in terminal types, providing flexible installation options. It is rated for operation within a temperature range from -25 to 55 degrees Celsius, suitable for environments with fluctuating temperatures including damp heat cycling.
Durability is ensured with a rated life capable of up to 100,000 electrical operations, minimizing maintenance needs. The product is RoHS compliant, manufactured in Germany under stringent quality controls, making it ideal for industrial, manufacturing, HVAC, and automation applications requiring reliable motor protection.
This breaker provides reliable protection against overloads and short circuits. Supports motors up to 7.5 kW with a high breaking capacity of 50 kA. Compact and flexible installation with screw and push-in terminals. Phase-failure sensitivity enhances motor safety complying with IEC norms.
Operates efficiently in temperature ranges from -25 to 55°C. Durable design supports up to 100,000 electrical operations. IP20 rating protects against solid objects and light contact. Manufactured in Germany ensuring robust quality and RoHS compliance.
Explore more Motor Protection Circuit Breakers and Eaton products to enhance your industrial automation and control systems within EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This motor protection circuit breaker has a current rating of 16A.
The maximum supply voltage for this model is 690V.
It features a high breaking capacity of 50 kA, providing robust protection against short circuits.
The dimensions of this unit are 75mm in length, 45mm in width, and 75mm in depth.
This model operates efficiently in temperatures ranging from -25°C to 55°C.
This circuit breaker is designed with 3 poles.
It is compatible with both screw and push-in terminal types, offering flexible wiring options.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
The Eaton 199200 PKZM0-16-SPI32 is manufactured in Germany.
It supports up to 100,000 electrical operations, minimizing maintenance needs.
This circuit breaker is part of a motor starter combination, providing effective motor protection.
The IP rating of this circuit breaker is IP20, protecting against solid objects larger than 12mm and light contact.
