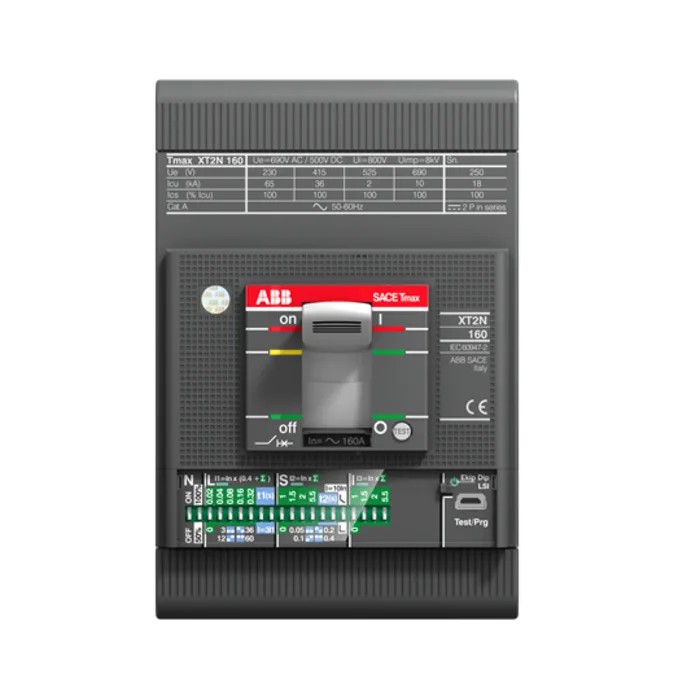

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 100A 690V AC Breaking Capacity 65 kA 1SDA067089R1 XT2N 160 Ekip M 100A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 100A 690V AC Breaking Capacity 65 kA 1SDA067089R1 XT2N 160 Ekip M 100A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067089R1 XT2N 160 Ekip M 100A FF
Depth	82.5mm
Width	90mm
Mount Type	Fixed
Current Rating	100A
Series	1SDA06
Terminal type	Fixed
Breaking Capacity	65kA
Number of Poles	3
Standards/Approvals	IEC, CE, RoHS
Rated AC Voltage	690V ac
Tripping Mechanism	Solid State
Reset Actuator Type	Lever
Rated current (In)	100 A In
Rated frequency (f)	50/60 Hz
Rated voltage (Ur)	690 V
Rated impulse withstand voltage (Uimp)	8 kV

Key Features

Compact and robust molded case design for reliable circuit protection.
Rated for 690V AC voltage with a frequency of 50/60 Hz.
Solid state tripping mechanism ensures precise and safe operation.
Lever reset actuator for easy manual reset.
Fixed mounting and fixed terminal types for stable installation.
Compliance with IEC, CE, and RoHS standards.
Rated impulse withstand voltage of 8 kV.
Produced in Italy, assuring high quality and manufacturing standards.

Product Description

ABB 1SDA067089R1 XT2N 160 Ekip M 100A FF Molded Case Circuit Breaker is a high-performance 3-pole MCCB designed for industrial and commercial electrical protection applications. It offers a rated current of 100A and a breaking capacity of 65 kA at a rated AC voltage of 690V, suitable for demanding electrical distribution systems.

This circuit breaker features a solid state tripping mechanism to provide accurate protection against overloads and short circuits. Its lever type reset actuator allows for quick and safe manual resets, enhancing operational efficiency.

The breaker is designed with fixed mounting and fixed terminals for secure and stable installation. It complies with international IEC, CE, and RoHS standards, ensuring safety and environmental responsibility.

With compact dimensions measuring 130mm in height, 90mm in width, and 82.5mm in depth, the ABB Tmax XT series breaker fits seamlessly into panel boards and switchgear assemblies. The device supports rated frequencies of 50/60 Hz and withstands an impulse voltage of up to 8 kV, making it robust against transient electrical disturbances.

Manufactured in Italy, this product reflects ABB's commitment to quality and reliability. Typical applications include electrical distribution in industrial plants, manufacturing facilities, commercial buildings, HVAC systems, and water treatment plants where dependable circuit interruption is critical.

Compact and robust molded case design for reliable circuit protection. Rated for 690V AC voltage with a frequency of 50/60 Hz. Solid state tripping mechanism ensures precise and safe operation. Lever reset actuator for easy manual reset.

Fixed mounting and fixed terminal types for stable installation. Compliance with IEC, CE, and RoHS standards. Compact dimensions: height 130mm, width 90mm, depth 82.5mm. Rated impulse withstand voltage of 8 kV. Produced in Italy, assuring high quality and manufacturing standards.
