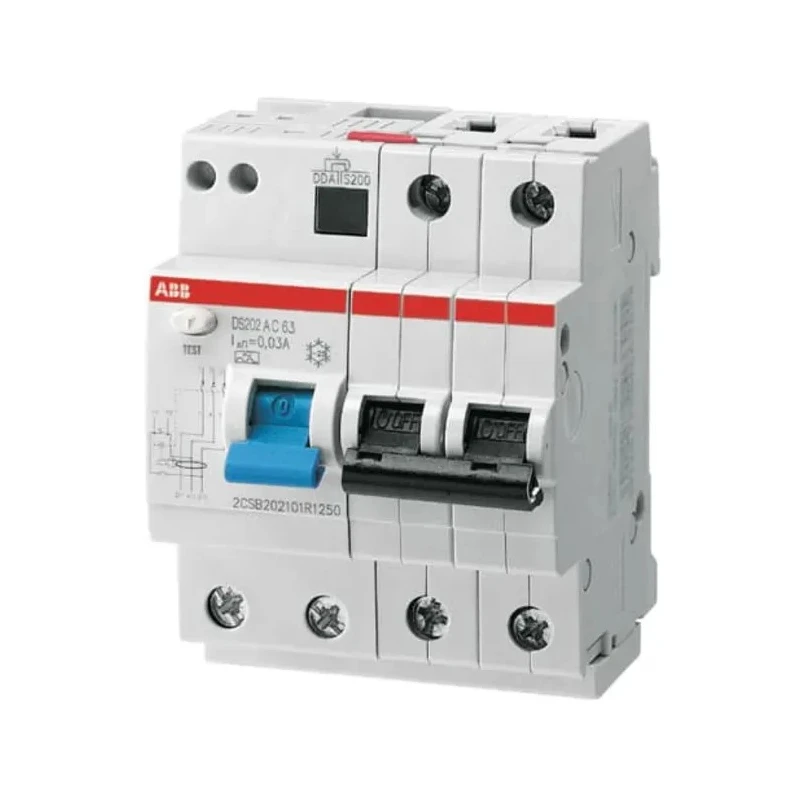

ABB Residual Current Circuit Breaker with Overload Protection 63A Current Rating 2-Pole 30mA Trip 2CSR272101R1635



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR272101R1635
Depth	69mm
Width	70mm
Standards	IEC/EN 60947-2
Current Rating	63A
Series	DS200
Ambient air temperature	Operation -25 ... +55 °C
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	IEC/EN 60947-2, REACH, RoHS
Rated AC Voltage	230V
Tripping Characteristics	Type B
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Provides protection against overload and short circuit currents with Type B tripping characteristic.
Equipped to detect sinusoidal alternating earth fault currents with Type A earth leakage protection.
Rated for 230V AC voltage with a breaking capacity of 6kA.
Features a lever reset actuator for easy manual operation.
Compact design with dimensions 93mm height, 70mm width, and 69mm depth.
Complies with IEC/EN 60947-2, REACH, and RoHS standards.
Suitable for ambient temperatures ranging from -25 to +55 °C for operation.
Manufactured in Italy ensuring high quality and reliability.

Product Description

ABB 2CSR272101R1635 Residual Current Circuit Breaker (RCBO) with Overload Protection is engineered to provide reliable protection for electrical circuits by combining overload and earth fault detection functions.

Designed for residential and industrial electrical installations, this device ensures safety by interrupting electrical supply during overloads, short circuits, and earth leakage faults, thereby protecting people and property.

The device supports a rated current of 63A with a 2-pole configuration and includes a 30mA trip sensitivity for sensitive earth leakage detection. It operates at a rated AC voltage of 230V and features a breaking capacity of 6kA assuring robust circuit protection under fault conditions.

Its operating characteristic is instantaneous with Type B tripping to quickly respond to fault currents. The earth leakage protection is of Type A, suitable for residential use to prevent electrical shocks and hazards.

The RCBO has a compact dimension profile (93mm height, 70mm width, 69mm depth) making it suitable for installation in limited space environments. The reset actuator is a lever type for straightforward manual reset post trip.

This circuit breaker adheres to stringent international standards such as IEC/EN 60947-2, REACH, and RoHS, underscoring its quality and safety compliance. It is designed to operate reliably within an ambient temperature range from -25 to +55 °C and to be stored safely between -40 to +70 °C.

Provides overload and short circuit protection along with earth fault current detection. Rated current of 63A and 2-pole configuration for effective circuit segmentation. Trip sensitivity of 30mA ensures precise fault detection.

Compact size supports easy integration in electrical panels. Lever reset for convenience and safety. Compliance with IEC/EN standard assures international safety benchmarks. Ambient operating temperature range suits diverse environments.

Manufactured in Italy ensuring high manufacturing standards and durability.

This RCBO model is ideal for electrical safety in residential, commercial, and light industrial environments. It safeguards against electrocution risks and equipment damage caused by earth faults and overloads. Explore comprehensive circuit protection solutions in the Residual Current Circuit Breaker category at EnvMart.
