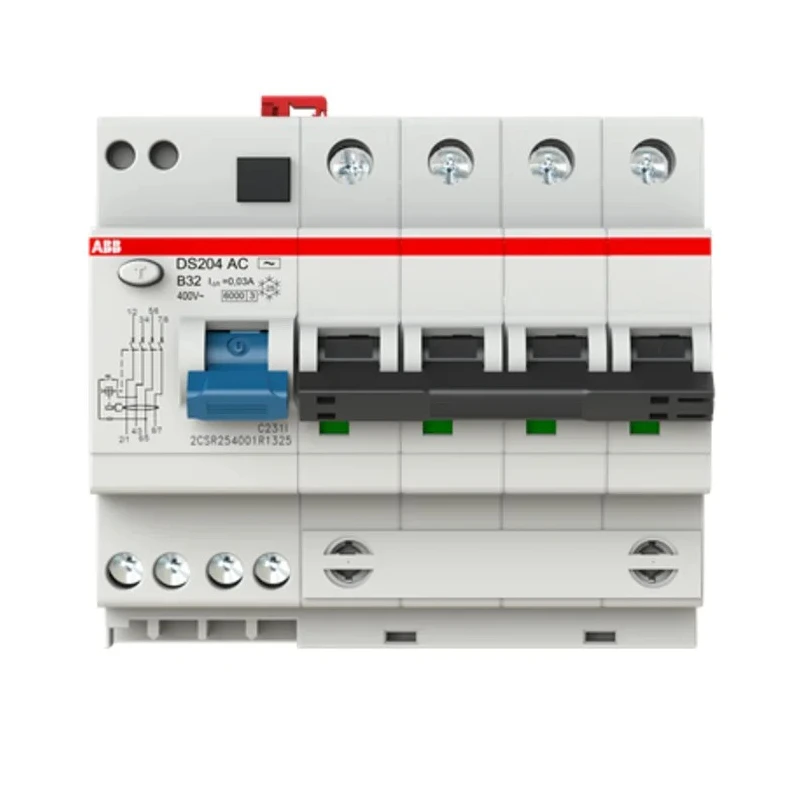

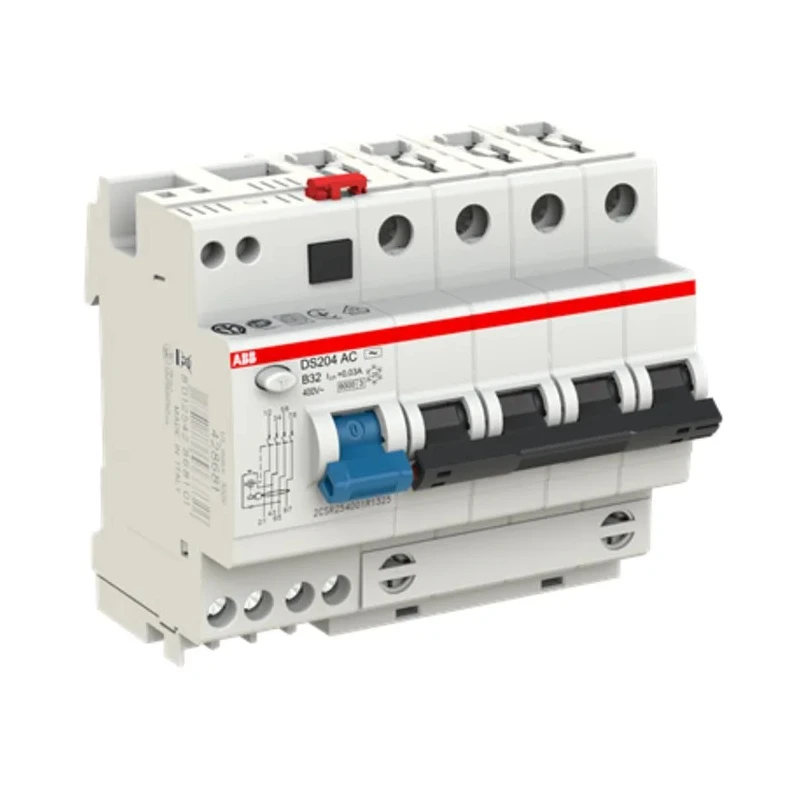

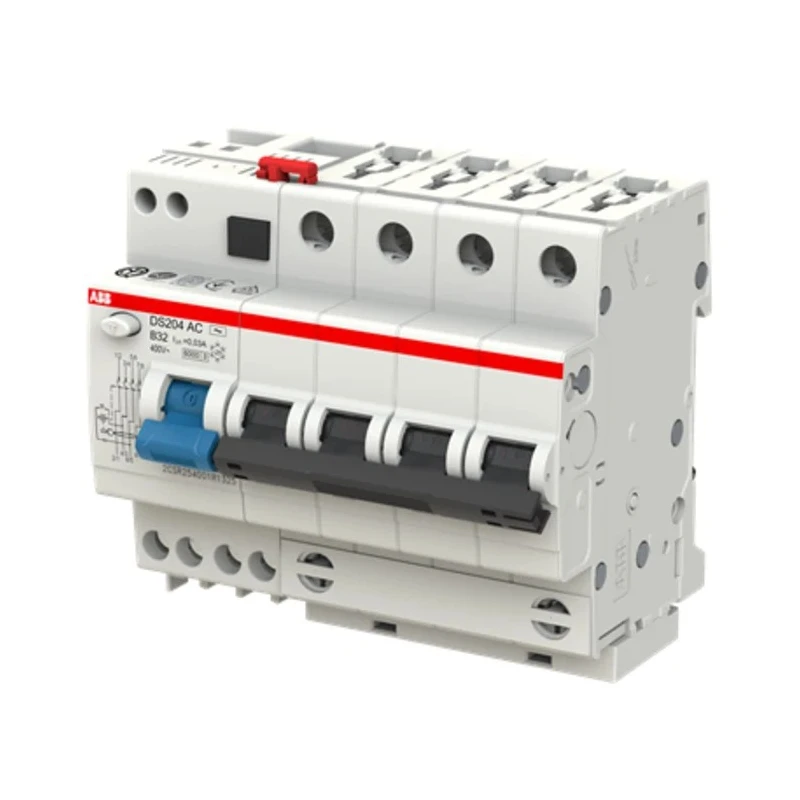

ABB Residual Current Circuit Breaker with Overload Protection 32A, 4-Pole, 30 mA Trip Sensitivity, Type B 2CSR254001R1325
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | ABB |
| Height | 93mm |
| Model | 2CSR254001R1325 |
| Depth | 69mm |
| Width | 105mm |
| Current Rating | 32A |
| Series | DS200 |
| Terminal type | Busbar |
| Breaking Capacity | 10kA |
| Number of Poles | 4 |
| Standards/Approvals | IEC/EN 61009-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type B |
| Reset Actuator Type | Lever |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Enhanced protection against earth faults with 30mA trip sensitivity.
- Robust 4-pole design suitable for residential and commercial electrical systems.
- Type B tripping characteristic for superior short circuit protection.
- High breaking capacity of 10kA ensures safe disconnection under fault conditions.
- Operates at rated voltage of 400V AC with busbar terminal type.
- Lever reset actuator allows easy manual reset after tripping.
- Compact dimensions of 93mm height, 105mm width, and 69mm depth.
- Compliant with IEC/EN 61009-1 and IEC/EN 60947-2 standards.
Product Description
ABB 2CSR254001R1325 Residual Current Circuit Breaker with Overload Protection is engineered to safeguard electrical installations across residential, commercial, and industrial environments. With a current rating of 32A and a sensitive trip threshold of 30mA, this 4-pole device efficiently detects earth fault currents, minimizing risk of electric shock and fire. It meets stringent IEC/EN standards ensuring consistent, high-performance operation.
The DS200 series model features a Type B tripping characteristic ideal for a wide range of electrical loads, and boasts a breaking capacity of 10kA to reliably interrupt fault currents, protecting circuits from damage. It is designed with a lever reset actuator for straightforward manual reset and is compatible with busbar terminal connections for secure installation.
Measuring 93mm in height, 105mm in width, and 69mm in depth, it provides a compact footprint suitable for varied electrical panels. The device operates safely in ambient temperatures from -25°C to +55°C, making it reliable for diverse indoor environments. Manufactured in Italy, it assures quality and compliance with IEC/EN 61009-1 and IEC/EN 60947-2 standards.
Enhanced protection against earth faults with 30mA trip sensitivity. Robust 4-pole design suitable for residential and commercial electrical systems. Type B tripping characteristic for superior short circuit protection. High breaking capacity of 10kA ensures safe disconnection under fault conditions.
Operates at rated voltage of 400V AC with busbar terminal type. Lever reset actuator allows easy manual reset after tripping. Compact dimensions of 93mm height, 105mm width, and 69mm depth. Compliant with IEC/EN 61009-1 and IEC/EN 60947-2 standards.
Designed for ambient operating temperatures ranging from -25°C to +55°C.
This ABB RCBO model is ideal for protecting electrical installations in residential buildings, commercial offices, and industrial sites where electrical safety is paramount. Its high sensitivity and breaking capacity offer reliable disconnection in the event of overload, short circuits, or earth faults, reducing equipment damage and enhancing safety for users.
Explore more products in the ABB range and discover solutions crafted for electrical circuit protection at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 32A, making it suitable for various electrical applications.
It features a trip sensitivity of 30mA, which enhances protection against earth faults.
The circuit breaker measures 93mm in height, 105mm in width, and 69mm in depth, allowing for a compact installation.
It has a breaking capacity of 10kA, ensuring reliable interruption of fault currents.
This unit features a Type B tripping characteristic, which is suitable for a wide range of electrical loads.
It operates at a rated voltage of 400V AC, making it suitable for various electrical systems.
It is compatible with busbar terminal connections for secure installation in electrical panels.
It complies with IEC/EN 61009-1 and IEC/EN 60947-2 standards, ensuring consistent performance and safety.
This model operates safely in ambient temperatures ranging from -25°C to +55°C, making it suitable for diverse environments.
It features a lever reset actuator, allowing for easy manual reset after a trip event.
It provides AC earth leakage protection, which is essential for minimizing the risk of electric shock.
This unit is manufactured in Italy, ensuring quality and compliance with international standards.
