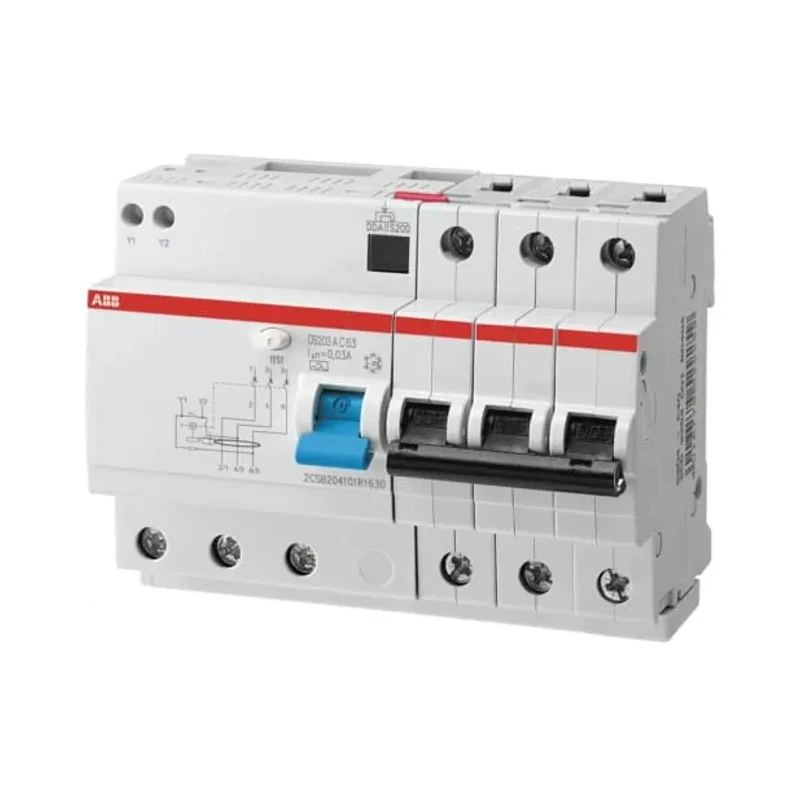

ABB Residual Current Circuit Breaker with Overload Protection 25A Current Rating 3-Pole 30 mA Trip 2CSR253101R1254



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR253101R1254
Depth	69mm
Width	87mm
Standards	IEC/EN 60947-2
Current Rating	25A
Series	DS200
Ambient air temperature	Operation -25 ... +55 °C
Breaking Capacity	10kA
Number of Poles	3
Standards/Approvals	IEC/EN 60947-2, IEC/EN 61009-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Rated current of 25A ensures reliable overload protection.
3-pole configuration suitable for three-phase systems.
Trip sensitivity set at 30 mA for effective earth leakage detection.
Type C tripping characteristics for instant response to faults.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards.
Breaking capacity of 10kA offers high fault current interruption.
Lever reset actuator for easy manual operation.
Designed for operation in ambient temperatures from -25 to +55 °C.

Product Description

ABB 2CSR253101R1254 Residual Current Circuit Breaker with Overload Protection from the DS200 series is designed to provide comprehensive electrical circuit safety. It offers effective protection against overload, short circuit currents, and sinusoidal alternating earth leakage faults, enhancing the safety of residential and industrial electrical installations.

The device features a rated current of 25A and a 3-pole configuration, making it suitable for three-phase power supplies. It incorporates a Type A earth leakage protection with a trip sensitivity of 30 mA, ensuring prompt disconnection upon detection of dangerous leakage currents.

Built to meet rigorous IEC/EN 60947-2 and IEC/EN 61009-1 standards, this circuit breaker delivers reliable performance with an instantaneous tripping characteristic (Type C). Its robust construction guarantees a breaking capacity of 10kA, capable of handling high fault currents safely.

The compact form factor with dimensions of 93 mm height, 87 mm width, and 69 mm depth facilitates easy installation in standard electrical panels. It uses a lever reset actuator for convenient manual resetting after tripping events. The device operates reliably within ambient temperatures ranging from -25 up to +55 °C.

Designed and manufactured in Italy, this residual current circuit breaker is ideal for applications requiring stringent overload and earth fault protections such as residential, commercial, and light industrial electrical systems. It ensures protection against indirect and direct contacts, enhancing personnel and equipment safety.

Rated current of 25A for overload protection. 3-pole configuration for three-phase circuits. 30 mA trip sensitivity for earth leakage protection. Compliant with IEC/EN 60947-2 and IEC/EN 61009-1 standards. Instantaneous Type C tripping characteristic.

Breaking capacity of 10kA for fault interruption. Lever reset actuator for easy manual reset. Compact dimensions allow flexible installation. Operation temperature range -25 to +55 °C. Manufactured in Italy ensuring high quality.

This ABB DS200 series Residual Current Circuit Breaker is a dependable choice for enhancing electrical safety in diverse industrial, residential, and commercial environments. Explore a wide range of ABB electrical protection devices at EnvMart for your automation and safety requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The rated current of this circuit breaker is 25A, ensuring reliable overload protection.

The trip sensitivity is set at 30 mA for effective earth leakage detection.

This model has dimensions of 93 mm in height, 87 mm in width, and 69 mm in depth, facilitating easy installation in standard electrical panels.

It features instantaneous Type C tripping characteristics, allowing for an instant response to faults.

The breaking capacity of this circuit breaker is 10kA, capable of handling high fault currents safely.

It complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards, ensuring reliable performance and safety.

It uses a lever reset actuator for convenient manual resetting after tripping events.

This circuit breaker operates reliably within ambient temperatures ranging from -25 to +55 °C.

This model has a 3-pole configuration, making it suitable for three-phase systems.

It incorporates Type A earth leakage protection, ensuring prompt disconnection upon detection of dangerous leakage currents.

This circuit breaker is manufactured in Italy, ensuring adherence to high standards of quality.

It is ideal for applications requiring stringent overload and earth fault protections, such as residential, commercial, and light industrial electrical systems.
