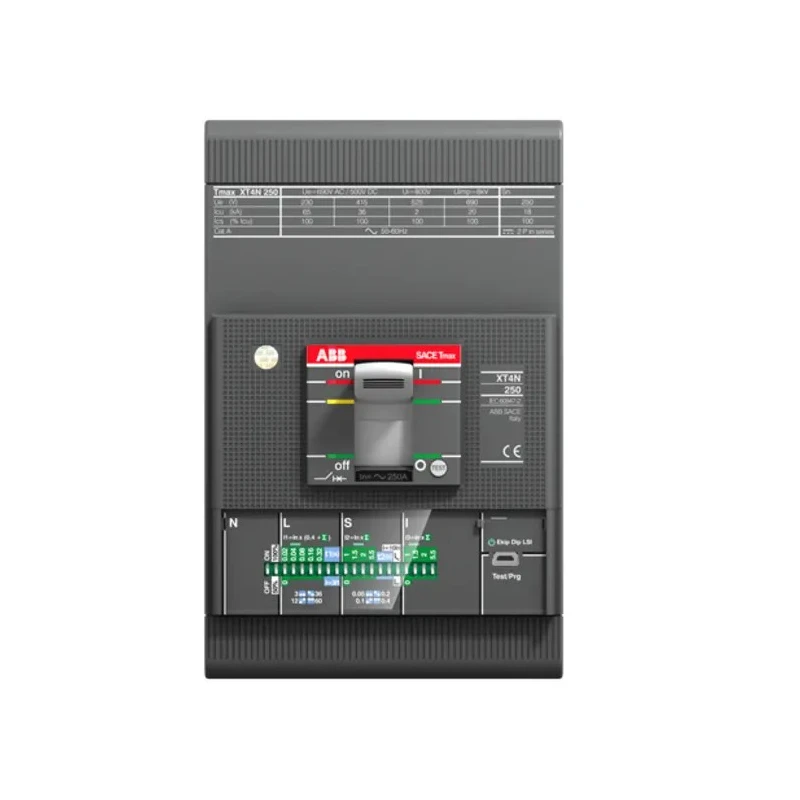

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 63A, Breaking Capacity 65kA, Rated 1SDA068138R1 XT4N 160 Ekip LSIG 63A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 160mm |
| Model | 1SDA068138R1 XT4N 160 Ekip LSIG 63A FF |
| Depth | 82.5mm |
| Width | 105mm |
| Mount Type | Fixed |
| Current Rating | 63A |
| Series | 1SDA06 |
| Terminal type | Fixed |
| Breaking Capacity | 65kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, CE |
| Rated AC Voltage | 690V ac |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Solid State |
| Reset Actuator Type | Lever |
| Rated current (In) | 63 A In |
| Rated frequency (f) | 50/60 Hz |
| Rated voltage (Ur) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Key Features
- Rated current of 63A suitable for medium load applications.
- Breaking capacity of 65kA ensures reliable short-circuit interruption.
- Fixed mounting and terminal design for robust installation.
- Complies with IEC standards and RoHS and CE certifications.
- Compact dimensions with 160mm height and 105mm width for panel integration.
- Lever type reset actuator for easy manual operation.
- Solid state Ekip LSIG tripping mechanism offers precise protection.
- Designed for disassembly supporting sustainability and recycling.
Product Description
ABB 1SDA068138R1 XT4N 160 Ekip LSIG 63A FF molded case circuit breaker is a 3-pole device designed for industrial electrical protection applications. Rated for 63A current and a high breaking capacity of 65kA at 690V AC, it provides reliable short-circuit and overload protection for electrical installations.
The breaker features fixed terminals and mounting type, ensuring secure and stable integration into electrical panels. Its compact physical dimensions of 160mm height, 105mm width, and 82.5mm depth enable efficient space utilization in distribution boards.
Equipped with a solid state tripping mechanism under the Ekip LSIG range, it delivers precise and reliable protection coordination. The lever-type reset actuator allows easy and safe manual reset after tripping events.
This MCCB conforms to IEC standards and holds RoHS and CE approvals, certifying its quality and environmental compliance. Additionally, it is designed for disassembly, supporting sustainable practices through ease of recycling and repair.
Ideal for demanding industrial, manufacturing, electrical distribution, and automation applications, it ensures safety and operational continuity in medium voltage circuits. Rated current 63A supports a range of electrical loads.
Breaking capacity 65kA provides high fault interruption capability. Fixed terminal and mounting design for robust electrical connections. Complies with international standards IEC, RoHS, and CE. Compact size is suitable for space-optimized electrical panels.
Solid state Ekip LSIG trip mechanism enhances protection accuracy. Lever actuator facilitates easy resetting of the circuit breaker. Designed with sustainability in mind for disassembly and recycling.
For reliable electrical protection with international quality assurance, the ABB Tmax XT 1SDA068138R1 MCCB is a superior choice in industrial and commercial electrical setups. Explore more MCCB options in the Molded Case Circuit Breaker category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This molded case circuit breaker has a current rating of 63A, making it suitable for medium load applications.
The ABB Tmax XT model has a breaking capacity of 65kA, ensuring reliable short-circuit interruption.
The dimensions of this circuit breaker are 160mm in height, 105mm in width, and 82.5mm in depth, allowing for efficient space utilization in panels.
It features a fixed mounting type, ensuring secure and stable integration into electrical panels.
This model uses a solid state tripping mechanism under the Ekip LSIG range, providing precise protection coordination.
The rated voltage for this circuit breaker is 690V AC, suitable for various industrial applications.
It complies with IEC standards and holds RoHS and CE certifications, ensuring quality and environmental compliance.
This unit features a lever-type reset actuator that allows for easy and safe manual reset after tripping events.
Yes, it is designed for disassembly, supporting sustainable practices through ease of recycling and repair.
The rated frequency for this circuit breaker is 50/60 Hz, accommodating various electrical systems.
It is ideal for demanding industrial, manufacturing, electrical distribution, and automation applications.
The rated impulse withstand voltage for this model is 8 kV, providing additional protection against voltage spikes.
