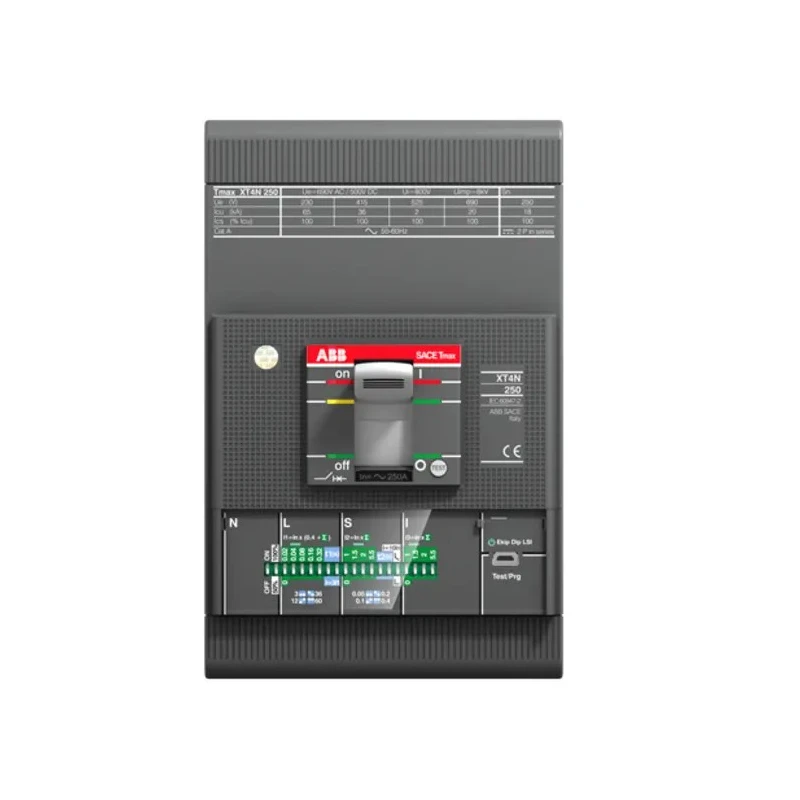

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 160A Breaking Capacity 65 kA Fixed 1SDA068135R1 XT4N 160 Ekip LSI 160A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 160mm |
| Model | 1SDA068135R1 XT4N 160 Ekip LSI 160A FF |
| Depth | 82.5mm |
| Width | 105mm |
| Mount Type | Fixed |
| Current Rating | 160A |
| Series | 1SDA06 |
| Terminal type | Fixed |
| Breaking Capacity | 65kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC, RoHS, CE |
| Rated AC Voltage | 690V ac |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Solid State |
| Reset Actuator Type | Lever |
| Rated current (In) | 160 A In |
| Rated frequency (f) | 50/60 Hz |
| Rated voltage (Ur) | 690 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
Key Features
- The breaker supports rated voltage of 690 V AC and impulse withstand voltage of 8 kV.
- It features a solid state tripping mechanism ensuring accurate and reliable operation.
- The reset actuator type is lever, facilitating easy manual reset.
- Dimensionally compact with height 160mm, width 105mm, and depth 82.5mm for installation flexibility.
- Complies with IEC, RoHS, and CE standards ensuring quality and safety.
- Designed as a Better World product with disassembly considerations for sustainability.
- Suitable for industrial, commercial, electrical distribution, and automation applications.
Product Description
ABB 1SDA068135R1 XT4N 160 Ekip LSI 160A FF Molded Case Circuit Breaker is engineered for robust protection in electrical circuits. This 3-pole molded case breaker provides a rated current of 160A and high breaking capacity of 65 kA, suitable for demanding industrial and commercial environments.
The fixed mounting design with front terminals ensures ease of installation and maintenance. It operates at a rated AC voltage of 690 V and withstands impulse voltages up to 8 kV, providing protection against short circuits and overloads.
The breaker incorporates a solid state tripping mechanism with Ekip LSI technology for enhanced selectivity and operational reliability. The lever-type reset actuator allows quick manual resets after trip events.
Its compact dimensions of height 160mm, width 105mm, and depth 82.5mm make it adaptable for various panel configurations while meeting stringent IEC, RoHS, and CE standards for quality and environmental compliance.
Designed as a Better World product, it supports sustainability through easy disassembly and recycling. This Molded Case Circuit Breaker is ideal for electrical distribution panels, automation systems, HVAC installations, manufacturing plants, and other industrial applications.
The breaker supports rated voltage of 690 V AC and impulse withstand voltage of 8 kV. It features a solid state tripping mechanism ensuring accurate and reliable operation. The reset actuator type is lever, facilitating easy manual reset.
Dimensionally compact with height 160mm, width 105mm, and depth 82.5mm for installation flexibility. Complies with IEC, RoHS, and CE standards ensuring quality and safety. Designed as a Better World product with disassembly considerations for sustainability.
Suitable for industrial, commercial, electrical distribution, and automation applications. Explore the extensive range of ABB circuit breakers and electrical components on EnvMart for trusted industrial-grade performance and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a breaking capacity of 65 kA, making it suitable for protecting electrical circuits against short circuits and overloads.
The rated current for this circuit breaker is 160A, which is ideal for various industrial and commercial applications.
This unit has dimensions of 160mm in height, 105mm in width, and 82.5mm in depth, allowing for flexible installation options.
It supports a rated voltage of 690 V AC, suitable for a variety of electrical distribution applications.
It features a solid state tripping mechanism, which ensures accurate and reliable operation.
The reset actuator type is lever, facilitating easy manual resets after a trip event.
This model complies with IEC, RoHS, and CE standards, ensuring quality and safety in its operation.
It has an impulse withstand voltage rating of 8 kV, providing additional protection against voltage spikes.
This unit features a fixed mounting design, which simplifies installation and maintenance processes.
It is suitable for industrial, commercial, electrical distribution, and automation applications, making it versatile for various environments.
The country of origin for this model is Italy, reflecting its manufacturing standards.
This model is part of the Tmax XT series, known for its robust protection features in electrical circuits.
