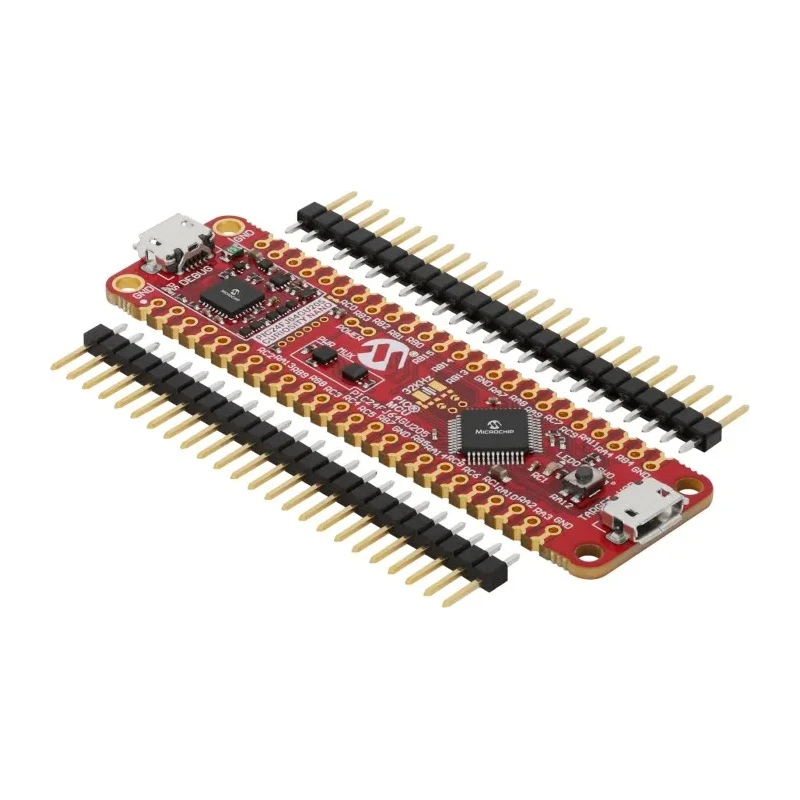

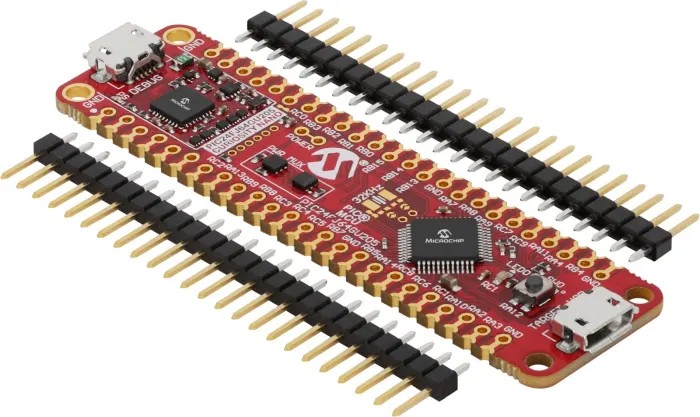

Microchip PIC24FJ64GU205 Curiosity Nano Evaluation Kit Development Board EV10K72A

Microchip EV10K72A PIC24FJ64GU205 Curiosity Nano Evaluation Kit Development Board offers a versatile platform for embedded system developers who want to evaluate the PIC24FJ64GU205 microcontroller. This development tool features a 48-pin TQFP packaged PIC24FJ64GU205 device with 64KB of ECC Flash memory and 8KB of RAM providing ample storage and execution capability for diverse applications.

The microcontroller integrates a 12-bit analog-to-digital converter capable of 400Ksps, three analog comparators, and several Core Independent Peripherals that offload tasks from the CPU. It supports Full Speed USB 2.0 communications including Host, Device, and OTG functionalities, enabling versatile connectivity options for custom USB applications.

The board incorporates a MIC5353 low-dropout regulator to supply an adjustable target voltage between 1.8V and 3.6V with a maximum output current up to 500mA depending on ambient conditions. User interaction is facilitated by a yellow LED and a mechanical switch useful for software interaction and status indication.

With a design that consumes only hundreds of nanoamps during sleep mode while retaining full RAM content, the PIC24FJ64GU205 kit is particularly suited for battery-powered Internet of Things (IoT) devices, sensor nodes, and portable embedded systems that demand low power consumption alongside high peripheral integration.

The evaluation kit includes essential hardware and interfaces to quickly develop and test embedded projects, making it a cost-effective yet powerful solution for microcontroller developers. It supports RoHS standards ensuring environmental compliance.

The evaluation kit features a PIC24FJ64GU205 device with 64KB ECC Flash and 8KB RAM. Includes a 12-bit/400Ksps ADC and 3 analog comparators for sensor interfacing. Provides Full Speed USB 2.0 Host, Device, and OTG connectivity options.

On-board MIC5353 LDO regulator delivers adjustable target voltage of 1.8-3.6 V. Includes one user LED (yellow) and a mechanical user switch for simple user input and feedback. The PIC24FJ64GU205 device supports ultra-low sleep current for power-sensitive applications.

Integrated USB connector supports USB Device application development. Ideal for IoT, sensor nodes, and portable embedded system development. Explore Microchip Microcontroller Development Tools and evaluation kits at EnvMart for your embedded design needs.
