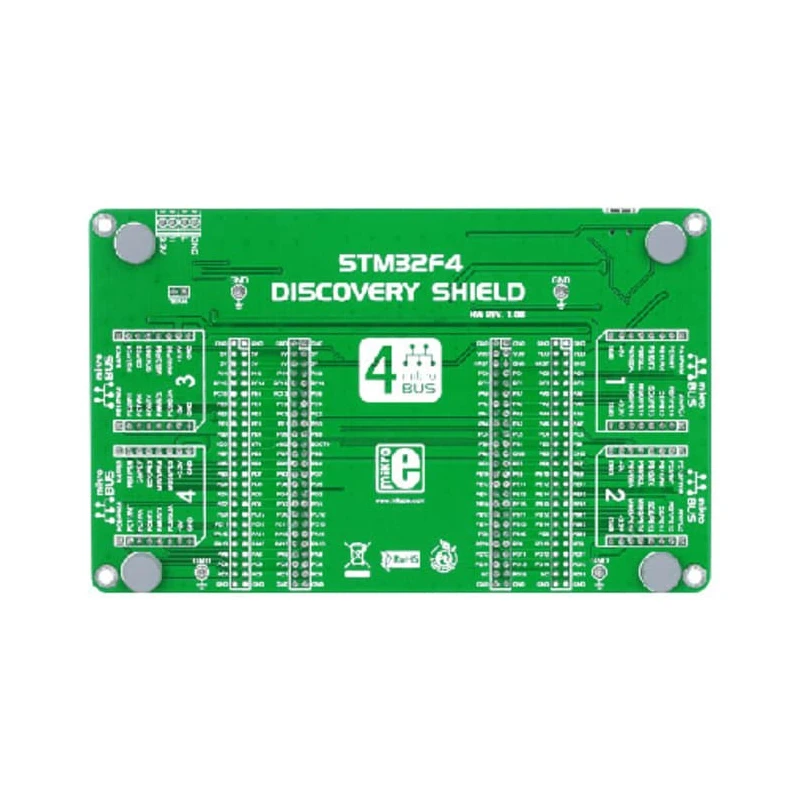

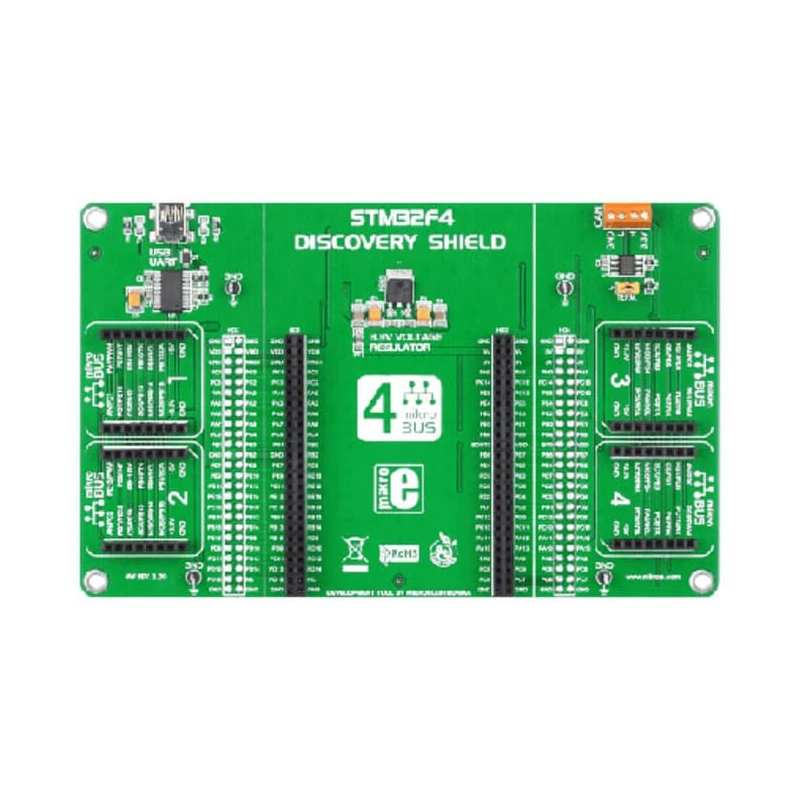

MikroElektronika Microcontroller Development Evaluation Board Shield for STM32F4 Discovery MIKROE-1481

MikroElektronika MIKROE-1481 is an evaluation shield designed specifically for the STM32F4 Discovery microcontroller development board. It supports development, prototyping, and testing by offering expandable connectivity and interfaces to enhance the microcontroller's capabilities.

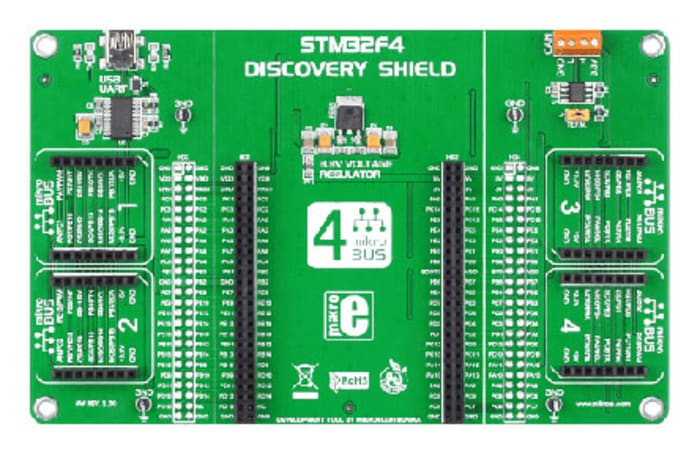

The shield features four onboard mikroBUS sockets that allow easy attachment of a wide variety of Click Boards, expanding functionality from sensors, actuators, to communication modules. This modular design is ideal for developers working on embedded applications requiring flexibility.

It integrates an FT232RL USB-UART Bridge chip which provides a stable USB-to-serial communication link for debugging and programming. In addition, the SN65HVD230 CAN bus transceiver enables direct interface with CAN bus networks, commonly used in automotive and industrial control systems.

Power is delivered via an LD29080DT33 linear voltage regulator supplying +3.3V at 800mA, suitable for powering onboard circuits and connected Click Boards. A USB mini-B connector with Rx and Tx LEDs offers clear communication status indications during operation and data transfer.

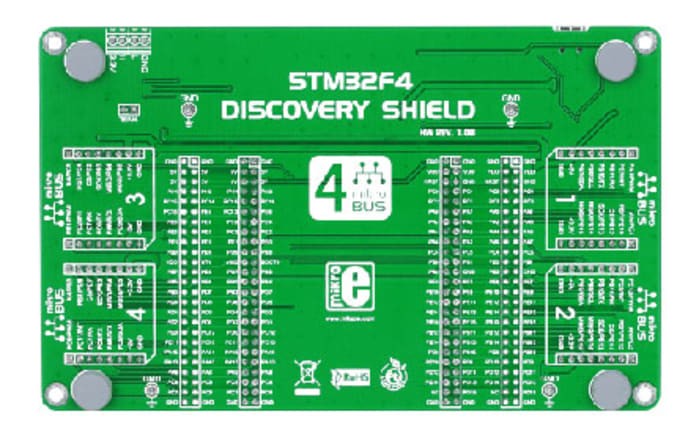

The shield provides screw terminals for connecting CAN bus wiring securely and four ground terminal posts, allowing convenient probing with oscilloscopes for signal analysis and troubleshooting. Two 50-way headers and connection pads ensure solid mechanical and electrical connection to the STM32F4 Discovery microcontroller board.

This product supports various industrial, educational, and development applications including embedded system prototyping, IoT device development, automotive systems, and research laboratory projects requiring a robust and scalable MCU platform.

Features four onboard mikroBUS sockets for connecting various Click Boards. Includes an FT232RL USB-UART Bridge chip for reliable communication. Equipped with an SN65HVD230 CAN bus transceiver for CAN network interfacing.

Powered by LD29080DT33 voltage regulator providing +3.3V at 800mA. USB mini-B connector with Rx and Tx LEDs for easy USB bus communication indication. Screw terminals facilitate convenient CAN bus connections. Four ground terminal posts allow oscilloscope probe attachment.

Dual 50-way headers and connection pads enable seamless integration with STM32F4 Discovery Board. Explore MikroElektronika’s full range of Microcontroller Development Tools and shields on EnvMart for reliable and versatile embedded development solutions.
