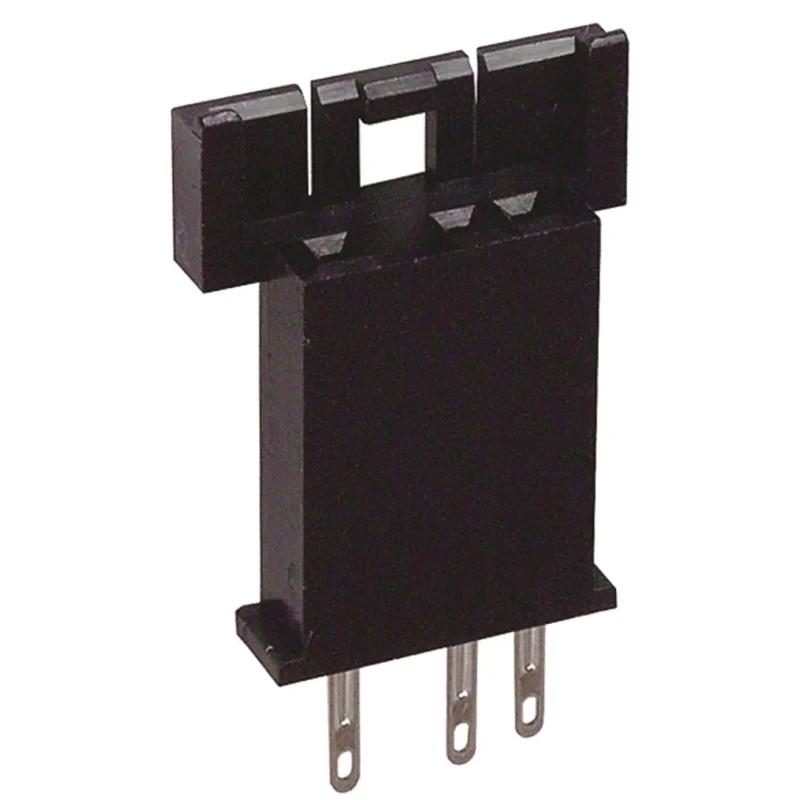

Omron Connector for Use with EE-SPX301, EE-SPX401, EE-SPY30, EE-SPY40, EE-SPZ301, EE-SPZ401 EE-1002

Omron EE-1002 is a high-quality connector accessory specifically designed for use with Omron EE-SPX and EE-SPY series photo-interrupter and diffuse reflective proximity switches such as EE-SPX301, EE-SPX401, EE-SPY30, EE-SPY40, EE-SPZ301, and EE-SPZ401 models. It ensures reliable electrical connections and ease of integration in automation systems.

This connector supports a voltage rating of 50 Vdc and a current rating of 3 A, with an exception for the EE-1001 variant rated at 4 A, providing suitability for various control gear applications. The operating temperature range spans from -10° to +75° Celsius, except the EE-1006 variant limited to +60° Celsius, making it adaptable to different environmental conditions commonly encountered in industrial automation environments.

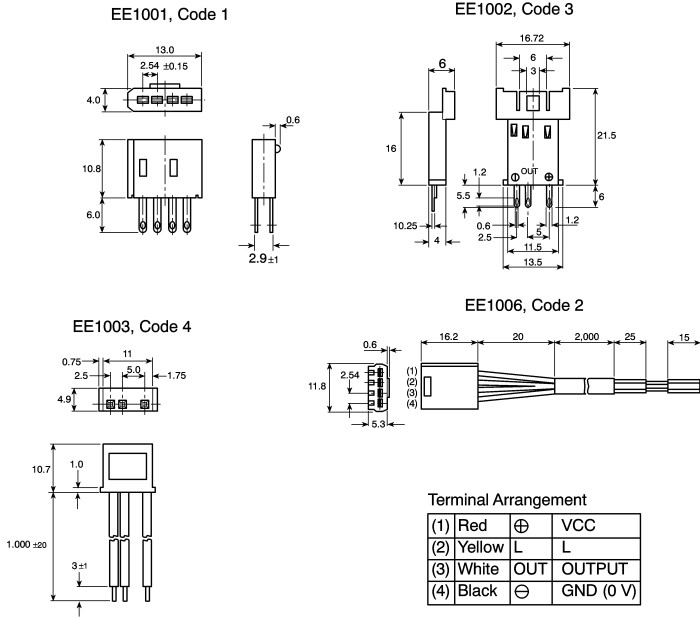

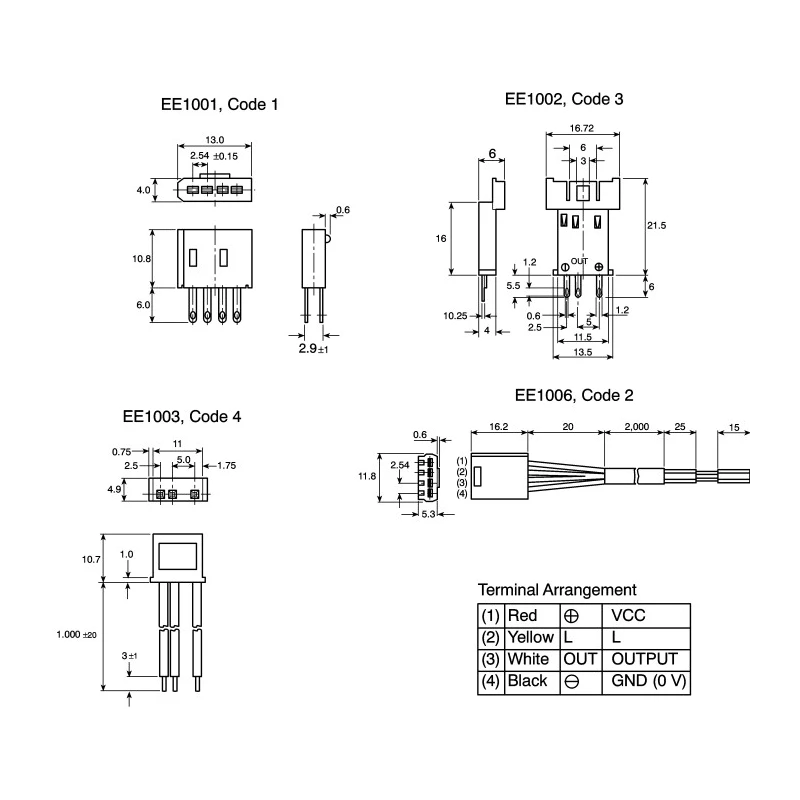

With dimensions precisely measured at 16.62 mm height, 22 mm depth, and 6 mm width, the EE-1002 connector fits seamlessly with compatible Omron sensor accessories. The product is manufactured in Japan, reflecting quality manufacturing standards but does not carry hazardous area certification nor other common industry approvals.

The connector supports a voltage rating of 50 Vdc. Rated for a current of 3 A, except EE-1001 with a 4 A rating. Operating temperature ranges from -10° to +75° C, except EE-1006 which supports up to +60° C. Precise dimensions with height 16.62 mm, depth 22 mm, and width 6 mm ensure compatibility.

Manufactured in Japan with high-quality standards but has no hazardous area certification. No standards or approval certifications are applicable for this connector.

This connector is widely used in electrical, automation, sensor, and control gear applications in manufacturing, industrial automation, process control, and laboratory environments.
